Model: AS-PBM-2L
Capacity: 0.5L x4 jar
Style: Planetary
Net Weight:80KG
Description: Planetary ball mill is mixed, fine grinding, sample preparation, dispersion of mano material,new product development and small batch production of high technology materials necessary device.

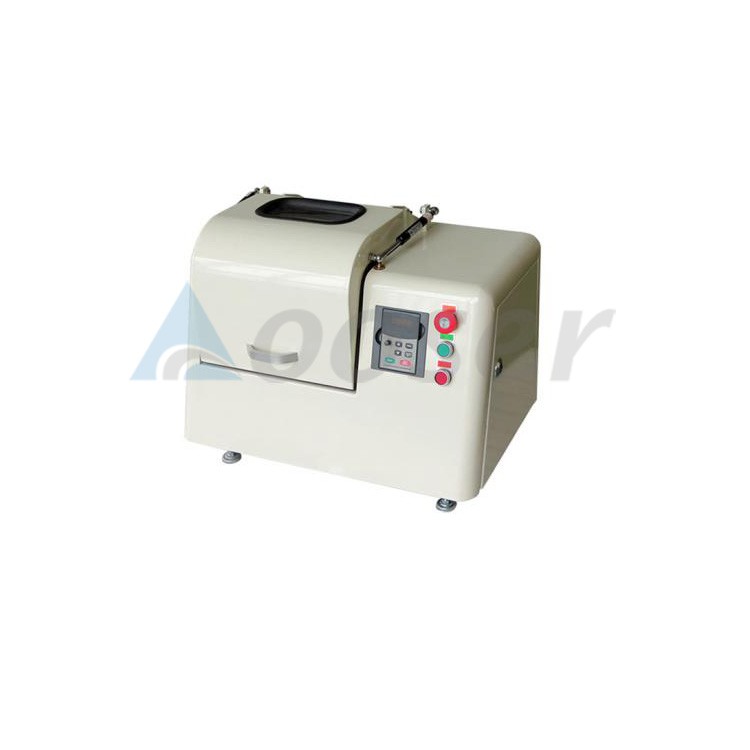

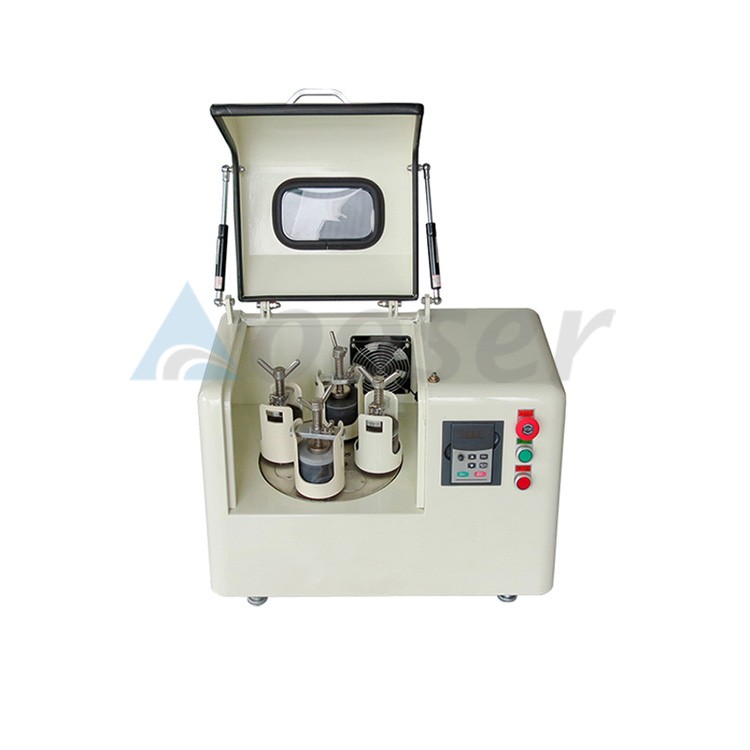

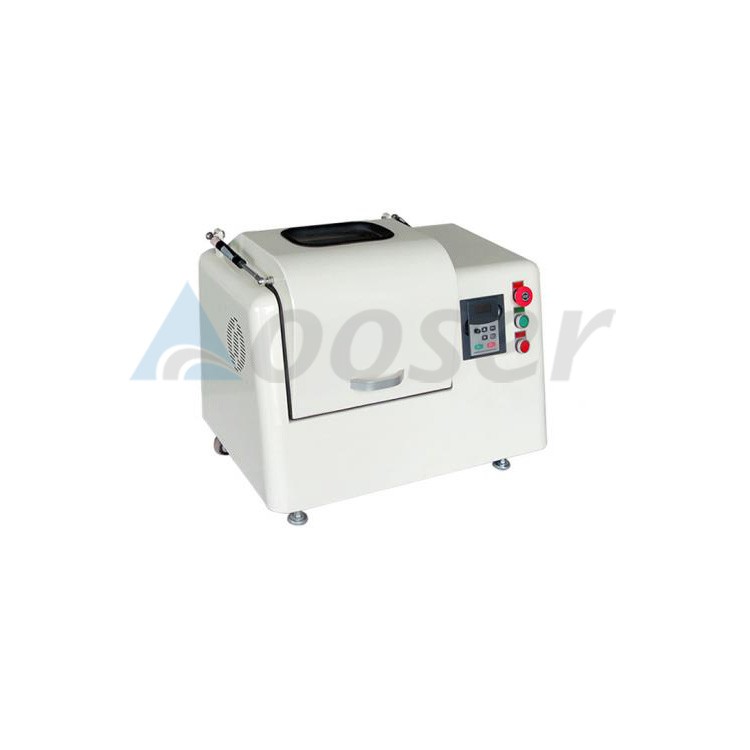

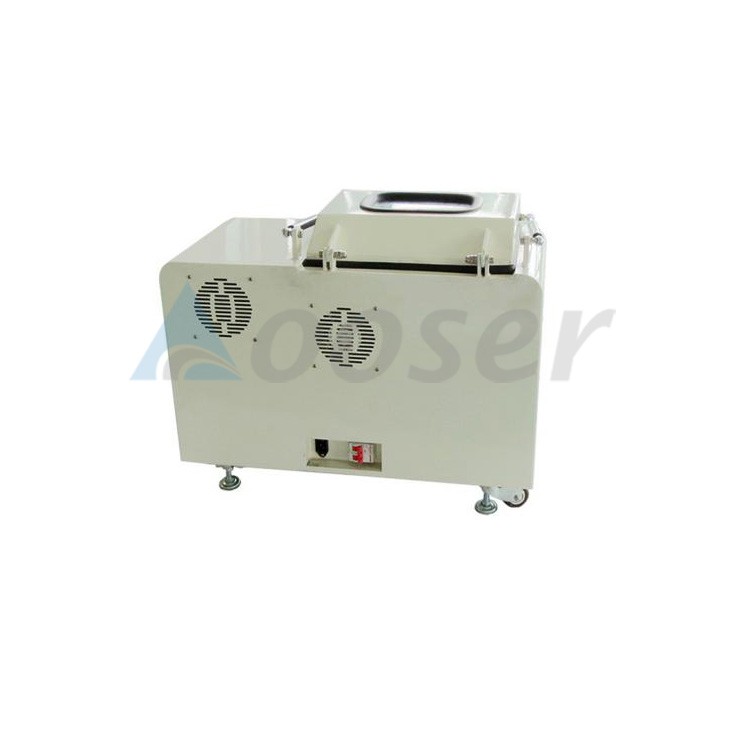

Vertical Oil Seal Silent Planetary Ball Mill Machine
Description:
The product has the advantages of small volume, complete function, high efficiency, low noise,
scientific research units, universities, corporate laboratories to obtain micro particles of sample
(each experiment can also get four samples) the ideal equipment is equipped with vacuum ball
milling tank, under the vacuum state grinding specimen.
Usage:
For higher and junior colleges, scientific research units and enterprises laboratory fast in batches of sample grinding to colloidal fineness (minimum of up to 0.1 M), and for mixing, homogenizing and dispersion; widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, cosmetics, environmental protection and other research and industry sector.
Features:
1. With small size, light weight, low noise.
2 can be operated continuously, one-way running, automatic positive and reverse continuous and regular operation.
3 ball mill can be dry grinding, wet grinding, vacuum grinding, protection of the atmosphere.
4 planetary ball mill main belt tightness adjustable, long-term use is not easy to slip, greatly extended the service life.
|
Name |
2L Planetary Mill Ball |
|
Model |
AS-PBM-2L |
|
Capacity |
0.5*4=2L |
|
Style |
Planetary |
|
Grinding ways |
Dry grinding /wet grinding/High energy alloyed grinding/vacuum grinding low temperature grinding for optional |
|
Loading and unloading method |
Intermittent type |
|
Transmission mode: |
Gear drive |
|
Speed control mode |
Frequency conversion speed regulation |
|
Control system |
Frequency conversion control system, touch screen control system |
|
Speed rate(r/min) |
2:1 |
|
The revolution speed(r/min): |
5-400 |
|
Rotation speed(r/min): |
10-800 |
|
Bite: |
4 bites |
|
Rated voltage(V): |
220 |
|
Rated power(W): |
1500 |
|
Frequency(Hz) |
50 |
|
Long run time(h): |
100 |
|
Run time(h): |
0-9999 |
|
Multi section speed setting: |
7 section |
|
Feed particle size(mm) |
<15mm,Hard material <3mm |
|
Grain size(μm): |
0.1μm,or 100nm |
|
Ball mill material |
Agate, zirconia, alumina, hard alloy, stainless steel, high chrome steel, nylon, PP tank, PTFE, polyurethane, custom |
|
Ball size(mm): |
0.5,1,2,3,5,7,10,15,20 |
|
Ball ratio: |
(2~10):1 |
|
Net Weight: |
80KG |

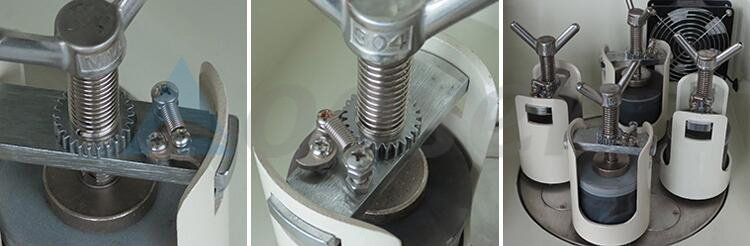

Details:

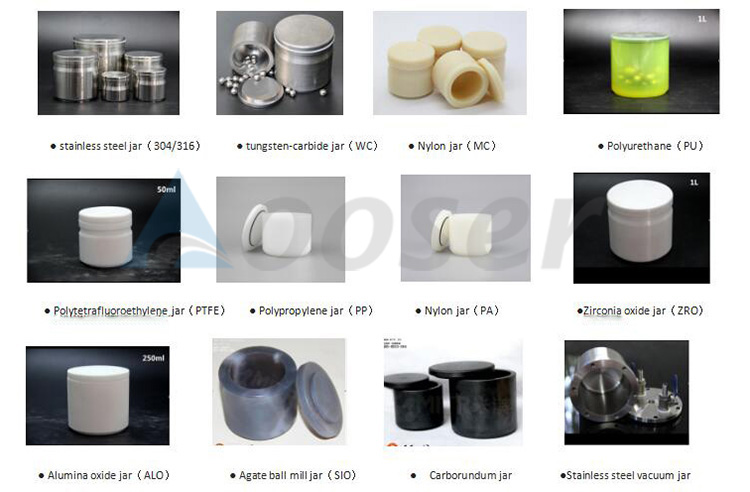

Jar categories:

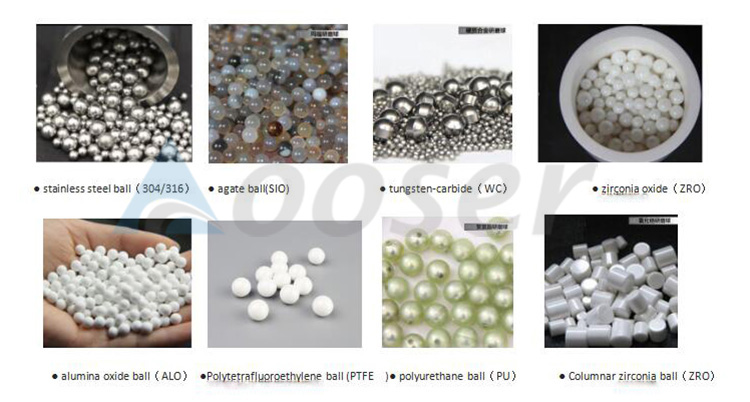

Ball Categories:
Pckaging:
