AS-PETAF PET Composite Aluminum Foil 240MPa Tensile Strength Battery Current Collector

AS-PETAF PET Composite Aluminum Foil 240MPa Tensile Strength Battery Current Collector

Product Name: PET Composite Aluminum Foil

Model Number:AS-PETAF

Brand Name: AS

Product Origin:China

Product description: Composite aluminum foil is a new-type of battery current collector, which has thinner aluminum film, overall lighter weight, and higher safety during penetration experiment compared to the conventional

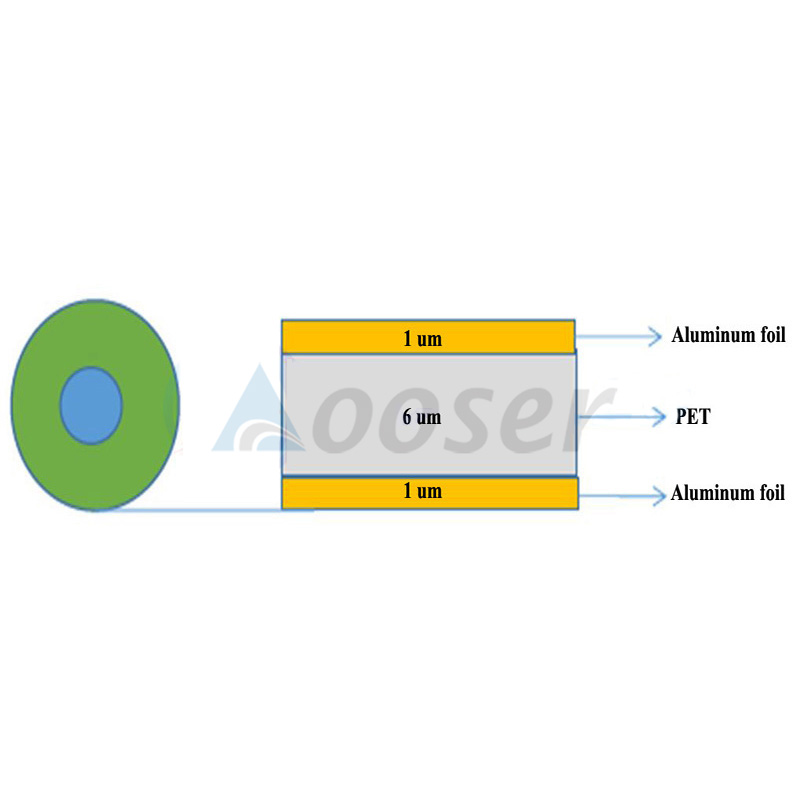

The AS-PETAF composite foil combines 8μm ultra-thin PET substrate with 99.35% purity aluminum coating, delivering 240MPa tensile strength and 40MΩ anti-shorting resistance. Ideal for high-energy 4680 cells and solid-state batteries, it reduces thermal runaway risks by 60% vs traditional foils.

Product name		PET Composite Aluminum Foil
Testing items		Unit	Norm value	Testing standards and methods
Areal density		g/c㎡	13±0.5	Sampler, balance
Thickness		um	8.0﹢1/0
Width		mm	280	Steel ruler
Square resistance		MΩ	40±3	Four Probe Square Resistance Meter
Resistivity		Ω/m	≤4*10-8	Four Probe Square Resistance Meter
Plating purity		%	99.35	Metal Detector
Tensile Strength	MD	MPa	≥240	Tensile tester
	TD		≥1800
Break elongation	MD	%	≥3%
	TD		≥3%
Wettability		Dyne value	≥32	Dyne pen
Antioxidant	150℃ 10min	/	No color change	Oven
	150℃ 10min		Not melt
Adhesion		/	Tape No. 681 does not fall off	3M tape
Pinholes		Number	No >500μm pinholes	Metallographic microscope
Appearance and storage conditions		The foil surface is smooth and flat; no interlayer folds; no indentation, bruises, scratches, uniform color, no corrosion, no oil stains, no black spots, smooth cut edges, and no obvious burrs. Storage temperature ≤25°C, temperature ≤65°C, avoid direct sunlight and chemical corrosion.

Company Profile

Xiamen AS battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AS Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
