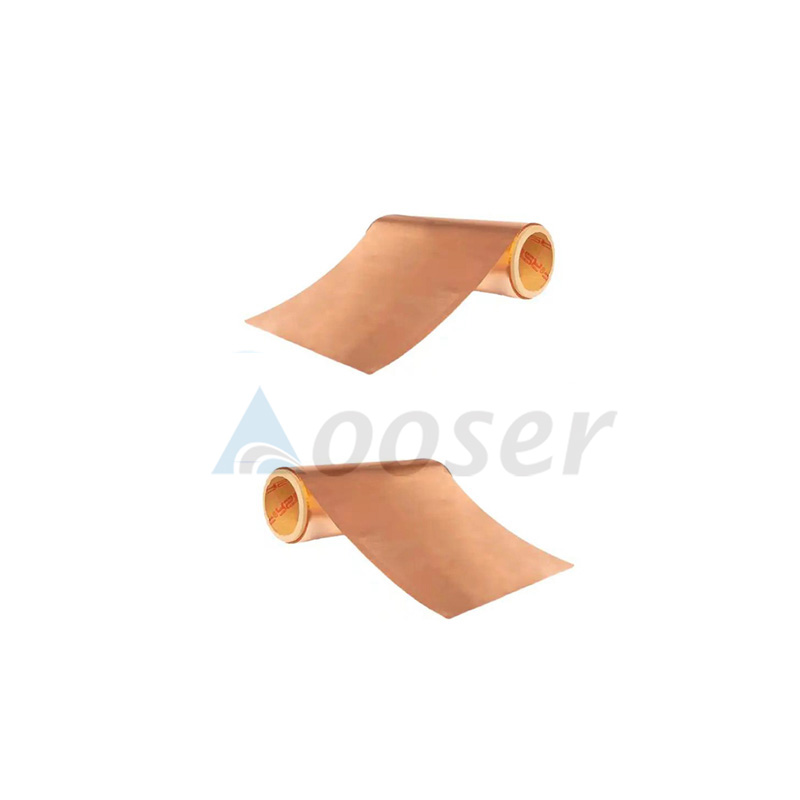

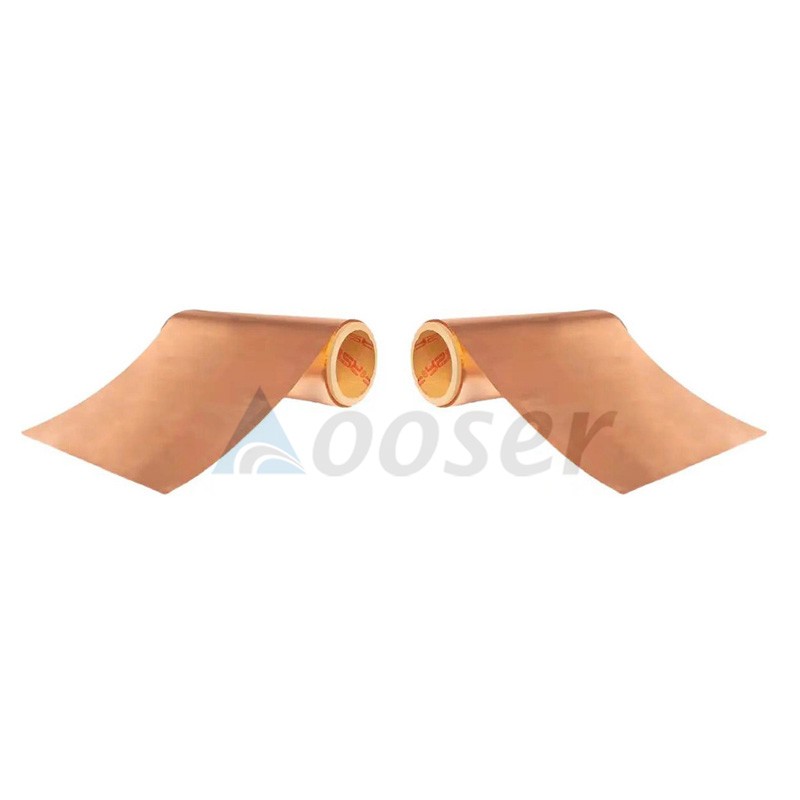

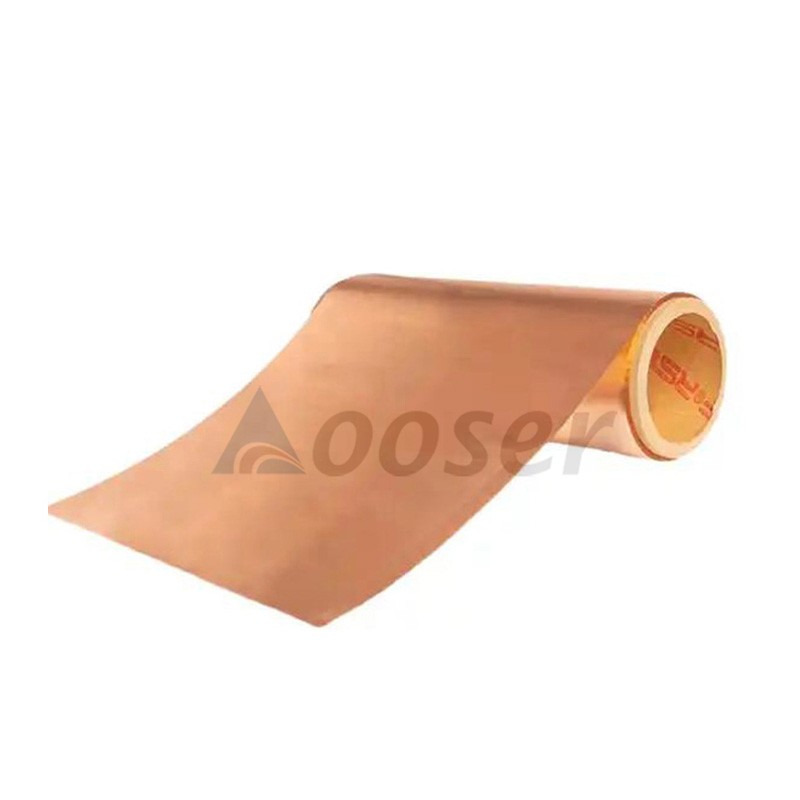

PET Composite Copper Foil 240MPa Tensile Strength Battery Current Collector

Product Name: Composite Copper Foil

Model Number:AS-CCF

Brand Name: AS

Product Origin:China

Product description: Compared with traditional copper foil, PET substrate has good safety performance, light weight, and good ductility, which can help improve the energy density of batteries.

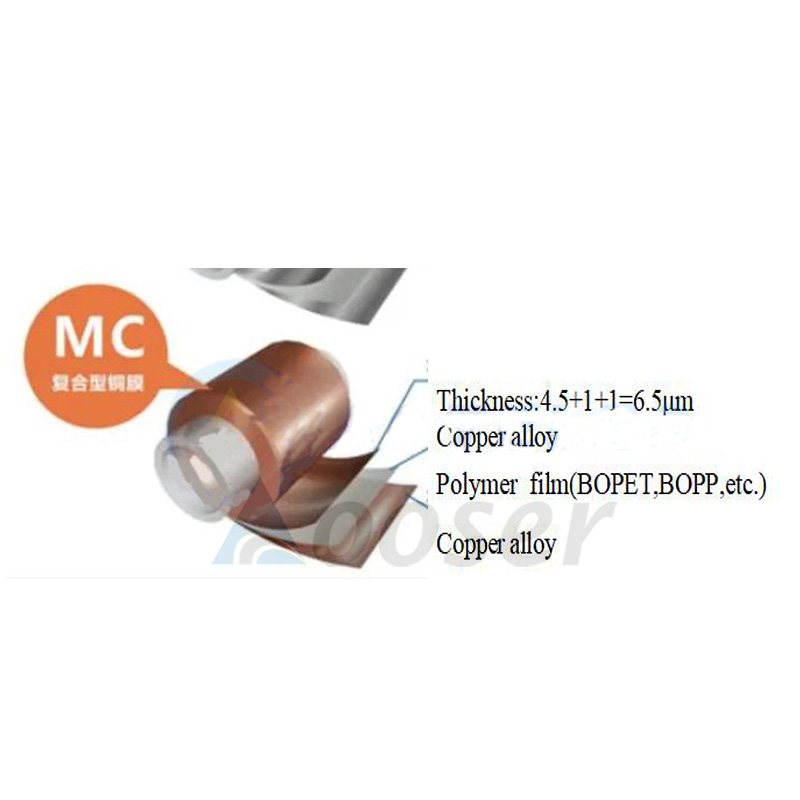

The AS-CCF composite foil combines 8μm ultra-thin PET substrate with 99.9% purity copper coating, delivering 240MPa tensile strength and 20MΩ anti-shorting resistance. Ideal for high-energy 4680 cells and solid-state batteries, it reduces thermal runaway risks by 70% vs traditional copper foils.

Product name		PET Composite Copper Foil
Testing items		Unit	Norm value	Testing standards and methods
Areal density		g/㎡	24±0.5	Sampler, balance

Width		mm	280	Steel ruler
Square resistance		MΩ	20±3	Four Probe Square Resistance Meter
Resistivity		Ω/m	≤4*10-8	Four Probe Square Resistance Meter
Plating purity		%	99.9	Metal Detector
Tensile Strength	MD	MPa	≥240	Tensile tester
	TD		≥240
Break elongation	MD	%	≥5%
	TD		≥5%
Wettability		Dyne value	≥32	Dyne pen
Antioxidant	150℃ 10min	/	No color change	Oven
	150℃ 10min		Not melt
Adhesion		/	Tape No. 681 does not fall off	3M tape
Pinholes		Number	No >500μm pinholes	Metallographic microscope
Appearance and storage conditions		The foil surface is smooth and flat; no interlayer folds; no indentation, bruises, scratches, uniform color, no corrosion, no oil stains, no black spots, smooth cut edges, and no obvious burrs. Storage temperature ≤25°C, temperature ≤65°C, avoid direct sunlight and chemical corrosion.
