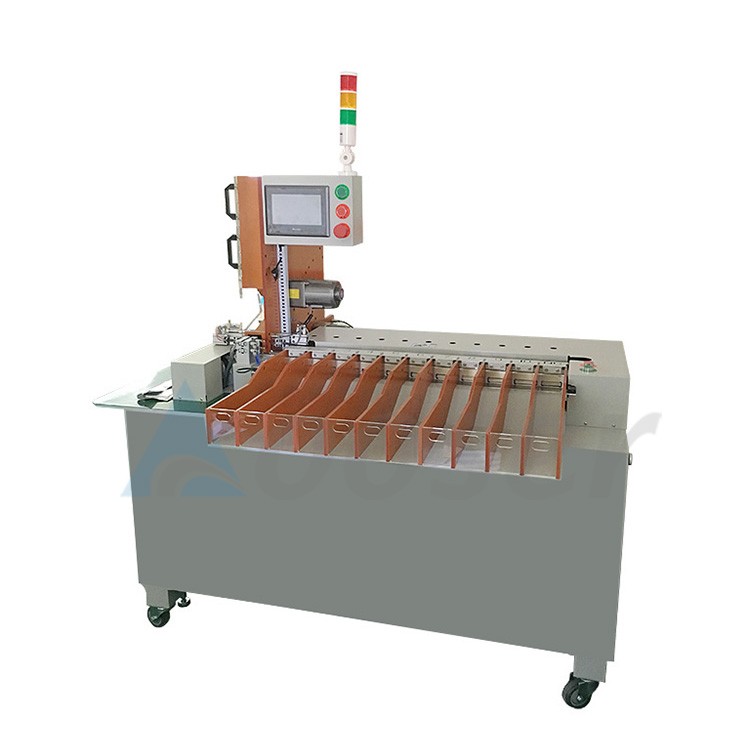

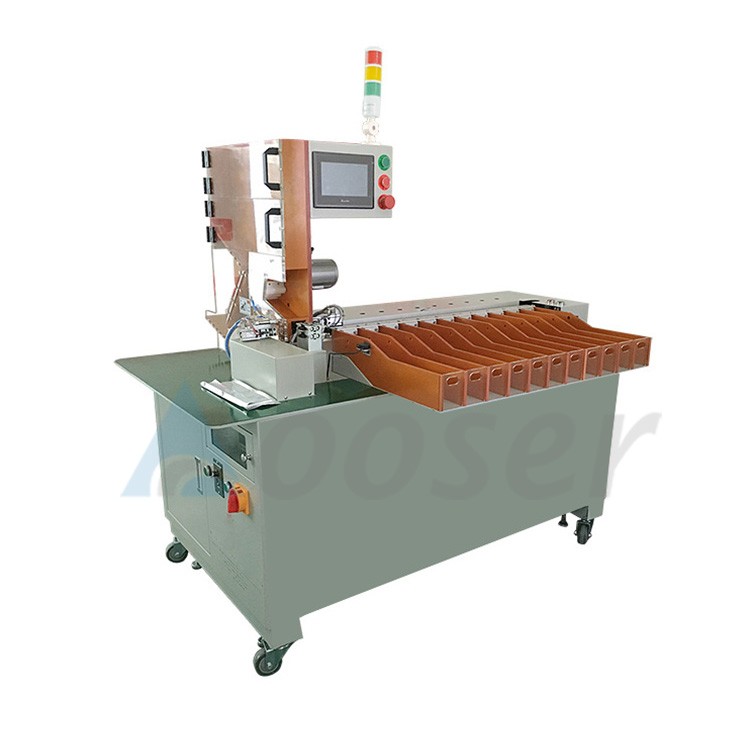

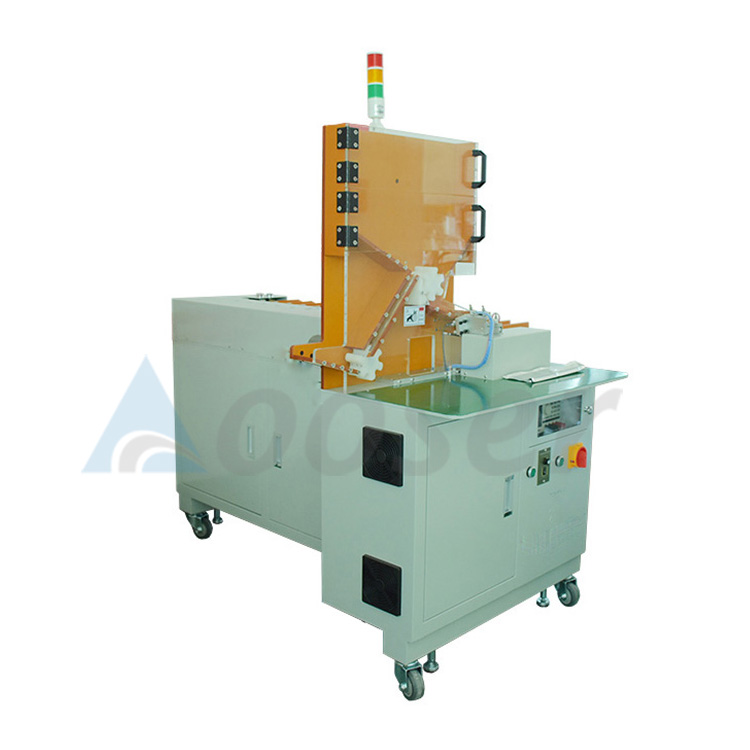

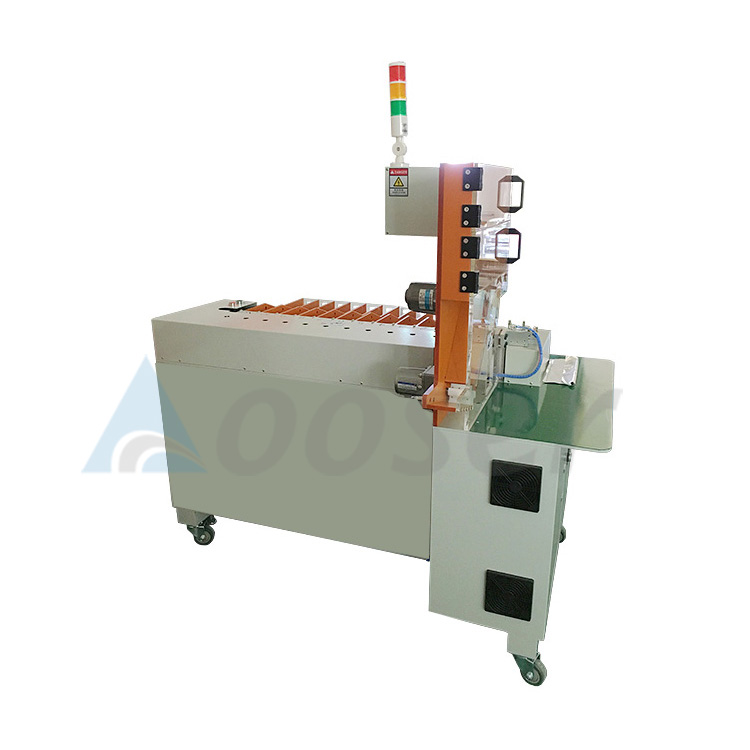

Automatic Battery Sorter Sorting Machine for Cylindrical Battery Pack Assembly

Model

Automatic battery sorting machine AS-ST-1811

Voltage supply

220V/50HZ

Power

1.6kw

Air Pressure

0.4-0.8Mpa

Display screen

7.5-inch touch screen, 3-axis PLC programmer

Suitable for

18650 battery

Receiving channel

10 sorting and matching channel,1 unqualified channel

Internal resistance setting

0mΩ-999.9 mΩ

Voltage setting

0-6V

Production efficiency

About 5000pcs/h

Feeding

By hopper, 500pcs cells one time

External connection

Customizable automatic connection padding machine

Tester

Standard tester: HOPETECH HK3560 tester (Hioki tester is optional)

High speed tester

Voltage accuracy 0.00001V

Internal resistance precision 0.01 mΩ

Motion device

Step shifting using closed-loop stepper motor, and the positioning is accurate.

The synchronous belt conveys the cell to prevent the cell surface damaged

Advantage

Automatic collection the production quantity to show current production efficiency

Test data can be stored in U disk

Optional cell dynamic tester, Practical embodiment the quality and load performance of cell

The equipment debugging is simple, easy to learn and easy to understand, with fault alarm

Package size

L1650*W1250*H1690mm

Weight

About 350kg
