20 channels automatic loading and sorting machine is mainly for automatic testing the voltage and internal resistance of cylindrical batteries, such as 18650, 26650, 32650, 21700. The different grades of batteries are transferred to different channels according to the determination result, thereby achieving automatic sorting of battery products.
Model: AS-FXJ-20C
Channels: 20-Channel
Origin: China
Warranty: One year
Cylindrical Battery Automatic Sorting Machine for Battery Pack Line
System Introduction:
20 channels automatic loading and sorting machine is mainly for automatic testing the voltage and internal resistance of cylindrical batteries, such as 18650, 26650, 32650, 21700. The level of each battery cell is calculated according to the software setting of the host computer, and different grades of batteries are transferred to different channels according to the determination result, thereby achieving automatic sorting of battery products.

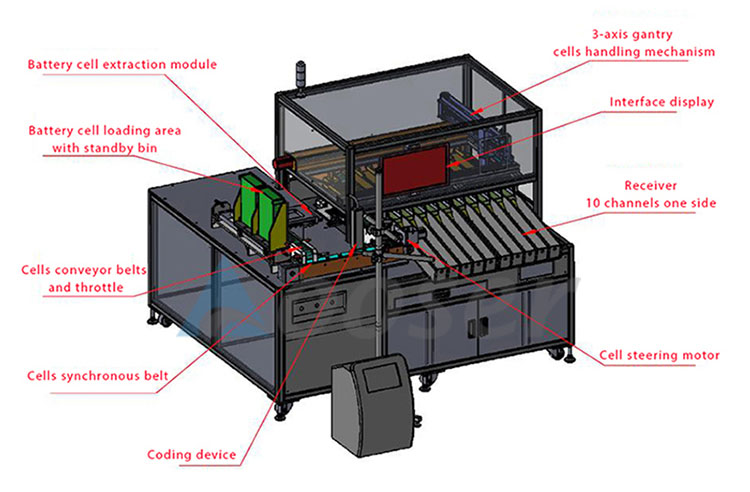

The automatic sorting equipment is composed of a feeding mechanism, a testing mechanism, an automatic sorting, and a receiving mechanism.
The machine system designs and develops the upper computer software according to the user's requirements, and automatically sorts and collects the battery cores into their corresponding channels according to the set group information.
Technical Parameter:
|
Product Name |
Automatic sorting machine for 18650 batteries AS-FXJ-20C |
|
Input voltage |
AC220V±10% 50Hz, 110V customized |
|
Power |
≤ 3KW |
|
Air source |
0.5～0.8Mpa |
|
Application |
18650 battery automatic sorting, optional for 32650/21700/26650 |
|
Sortingchannel |
20 channels |
|
Open circuit voltage |
Accuracy +/-0.01% rdg, display resolution 0.1 millivolt |
|
AC internal resistance |
Accuracy +/-0.5% rdg, display resolution 0.1 millivolt |
|
Equipment capacity/speed |
About 5500pcs-6500pcs |
|
NG equipment failure rate |
≤ 2%（Failure caused only by equipment） |
|
Workign humidity |
≤85％ |
|
Working temperature range |
25℃±5℃ |
|
Computer |
1 set |
|
Probability of product damage |
≤0.1% |
|
Internal resistance tester |
HK3561 (Hioki 3561 optional) |
|
Printer |
Optional for battery factory |
|
Code reader/ Scanning device |
Optonal(Keyence SR-1000W) |
|

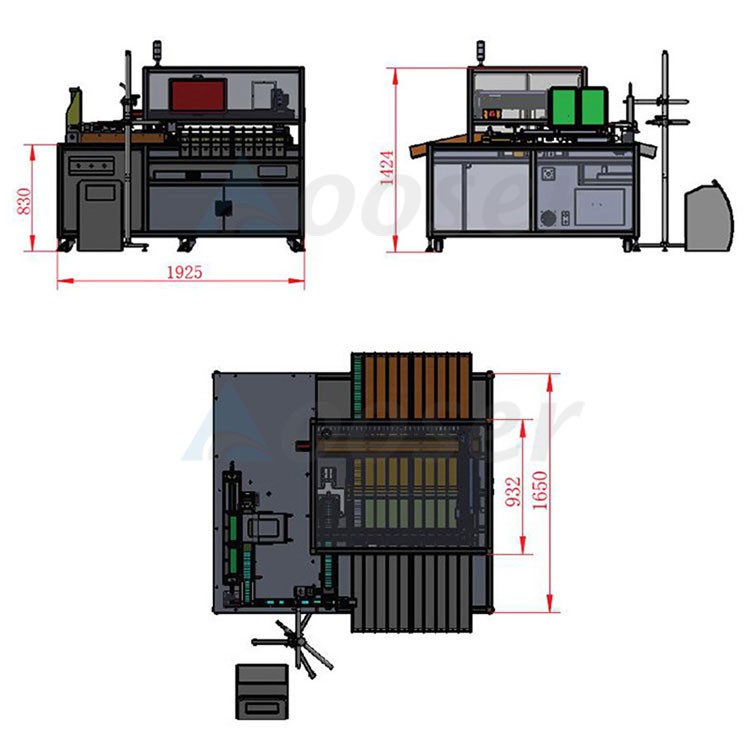

Maximum size of equipment |
L1930mm*W1650mm*H1500mm |
|
Weight |
500kg |
| Warranty | 1 Year limited with lifetime online technical support |
