AS-MSK-160D is a electric crimper for the CR20XX series coin cells such as CR2016, CR2025, and CR2032. It is an ideal tool designed for operating both within and outside of a glove box. There are two sets of dies included in the standard package for enabling this machine’s crimping or de-crimping capabilities.
Lab Digital Pressure Controlled Electric coin cell Crimper For CR20XX Battery
AS-MSK-160D is a electric crimper for the CR20XX series coin cells such as CR2016, CR2025, and CR2032. It is an ideal tool designed for operating both within and outside of a glove box. There are two sets of dies included in the standard package for enabling this machine’s crimping or de-crimping capabilities.
Technical Parameters
|
Voltage |
110 - 240V AC 50/60Hz |
|
Power |
15W |
|

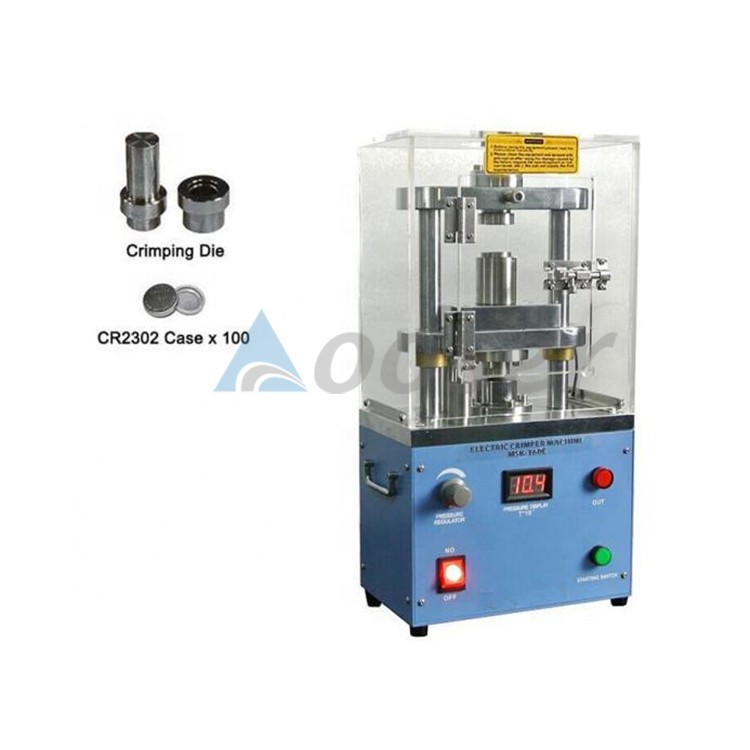

Die Set & Compatibility |
Assembling and disassembling dies for CR2032, CR2025, & CR2016 coin cells |
|
Structure |
Heavy Duty Steel Platform |
|

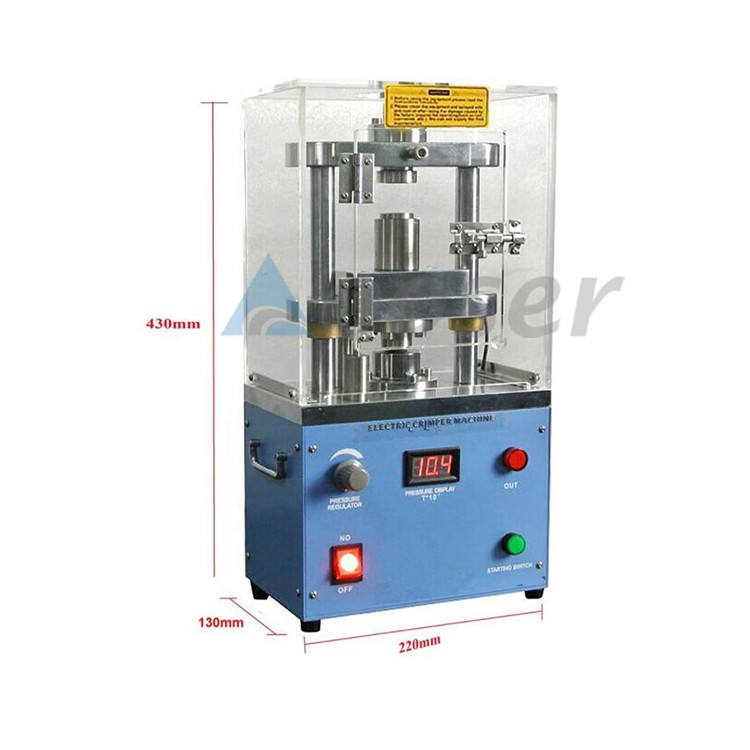

Product Dimensions |
220mm(L) x 130mm(W) x 430mm(H) |
|
Shipping Weight |
45 kg (100 lbs) |
|
Warranty |
Two years limited warranty with lifetime support |
|
Net Weight |
25 kg (55 lbs) |
|
Maintenance Notes |
Electrolytes are highly corrosive materials, and therefore the die set must be cleaned with alcohol after each use to avoid corrosion and to maintain the equipment's integrity. |
