Pressure Controlled Coin Cell Crimping Machine With High-throughput

Pressure Controlled Coin Cell Crimping Machine With High-throughput

Modal: AS-HTC-16

Origin: China

Compliance: CE

Warranty: 1 Year

Description:AS-HTC-16 is suitable for crimping coin cells beyond Li-ion such as Li-S, Li-Air and, and Li-ion selective half-cell.

EMAIL

Pressure Controlled coin cell Crimping Machine With High-throughput

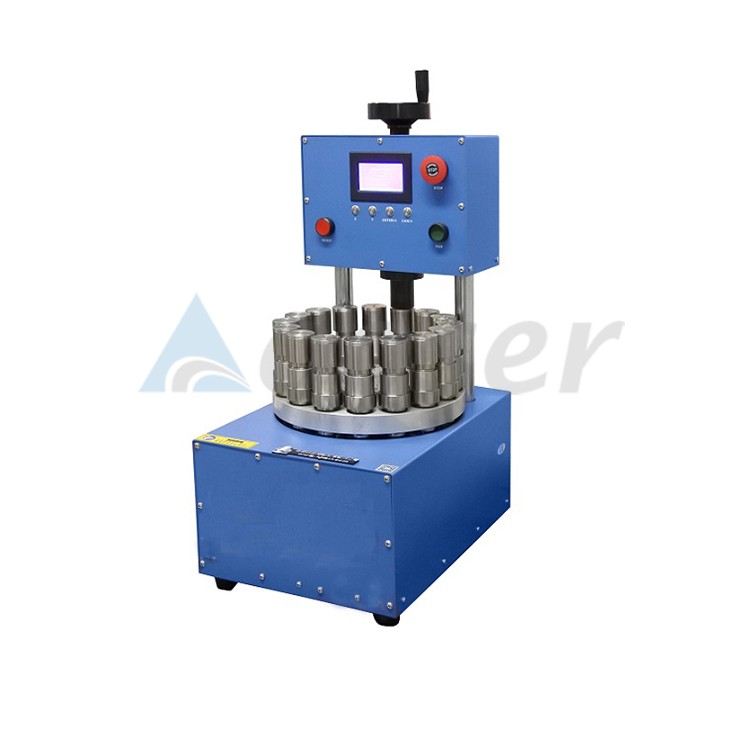

AS-HTC-16 is a High-Throughput 16 positions Pressure Adjustable Electric Crimper for CR2016, CR2025, and CR2032 coin cells.  The crimper is powered by a 24V DC for glove box Ar atmosphere compatibility. The crimper comes with a pressure display and settings to achieve so consistent results for all crimping, and automatically crimp 16 cells in one batch to quickly explore the best battery material. The device can be put in a glovebox and Ar gas compatible.


Power

1. 110 - 240V AC (50/60Hz) NRTL certified power adapter for worldwide use

2. 24V DC motor with reducing gear, 15W. The operation is very safe without NRTL certification

Position

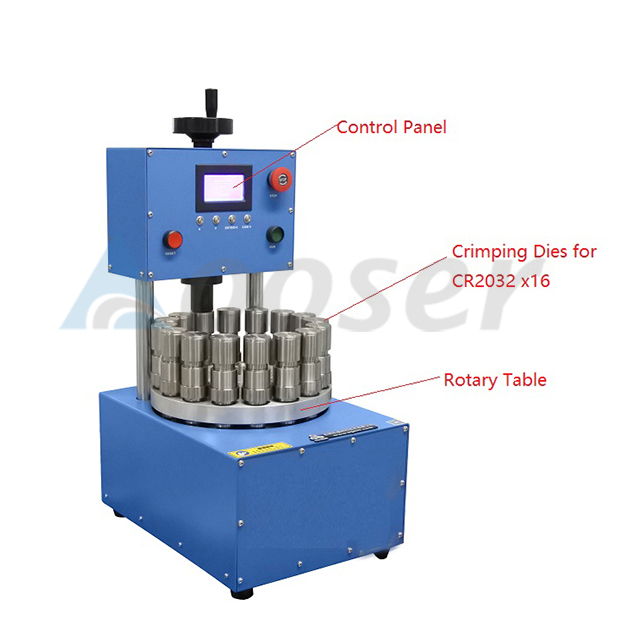

1. One rotary table is driven by an electric motor as a program

2. 16 positions for 16 coin cell crimping die in one single run

3. Automatically crimp 16 cells by touching one button.

Die Set & Compatibility

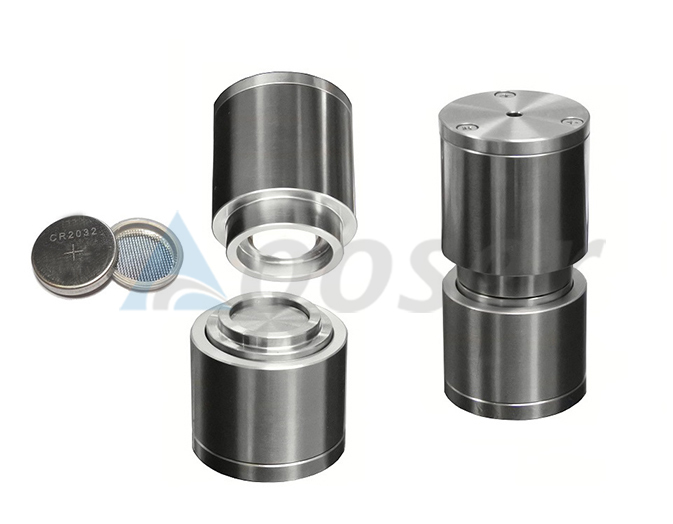

Assembling die (made of hardening steel) for crimping CR2032, CR2025, & CR2016 coin cells (Optional CR2325, CR2450 die sets are available upon request).

160 pcs CR2032 cases are included in the package for immediate testing

Pressure

A built-in load cell with a digital display for pressure measurement and control

The device is Ar gas compatible and used inside the glovebox

Pressure adjustment range: 0 - 1.5 metric tons

Recommended assembling pressure for CR20XX coin cells should be over 0.8T for CR2032 cases. Please find the desired pressure by experiment

Production Dimension

420 mm L x 300 mm W x 620 mm H

Compliance

CE

Application Notes

Such a compact coin cell crimper is suitable for use in the glove box with Ar atmosphere where Lithium-Sulfur, Lithium Air, Lithium Solid-State, or Li-ion half cell will be assembled.

Please use a vacuum pen to pick the electrode disk to make assembling easy


Coin Cell Crimping Machine with Pressure Controlled
