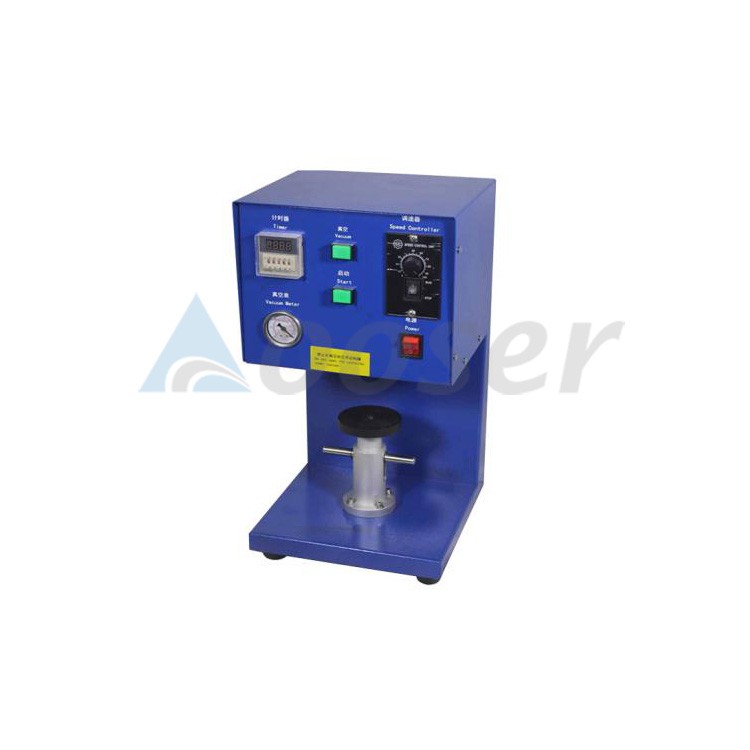

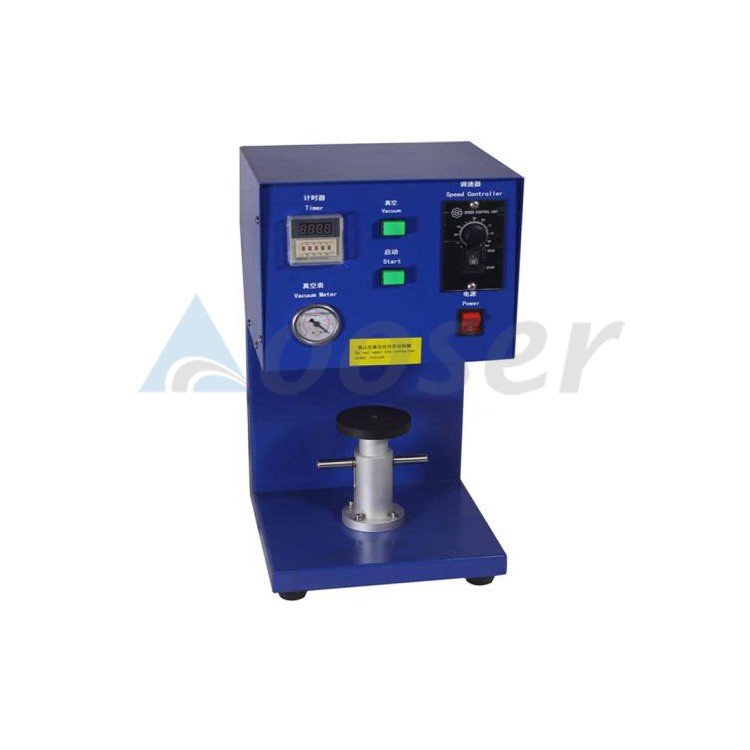

Battery Laboratory Small Lab Compact Vacuum Mixing Machine

Modal: AS-SVM-150

Power: 150W

Origin: China

Warranty: One year

Description: This vacuum mixer is built in vacuum pump,with high dispersion efficient equipment.

Lab Small Vacuum Mixing Machine for Lithium Battery Raw Materials

It is suitable for battery electrode paste and various ceramic materials mixing, due to complete the process in vacuum station, fully implemented without air bubbles, improve the filling material and density

Mainly feature:

1.Use soft sealing process, good sealing effect

2.Mixing motor adopts gearbox frequency adjustment, can adjust vacuum speed according to materials feature.

3.Double blade design,make rapid mixing paste.

4.Small overall dimensions, to save space,delicate appearance, simple.

Specifications:

Model	Lab Vacuum mixer machine AS-SVM-150
Voltage Input	AC220V / AC110V
Power	150W
Stirring speed	0 ~ 320 RPM; the inverter speed control
Vacuum	≤-90~-95Kpa
Accessories volume	150 ml stainless steel vacuum drum, can be customized
Mixing time	0 ~ 9999 minutes (can be set)
Oscillation mode	Infinitely adjustable-speed
Dimensions(LWH)	About 330310510mm
Weight	About 20kg
Warranty	One year limited with lifetime support
