Model: AS-AKF-2010
Test time: average 3min
Result resolution: 1PPM
Origin:China

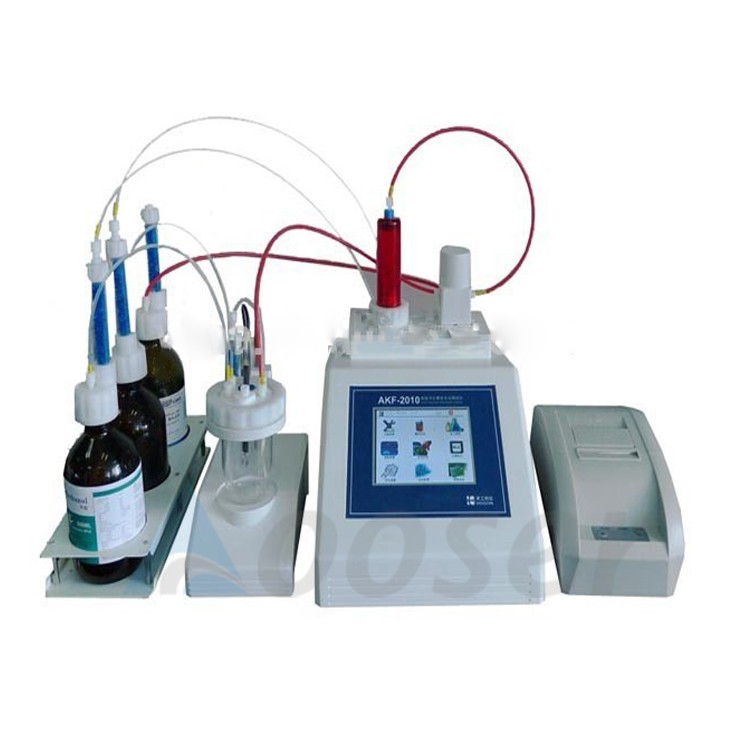

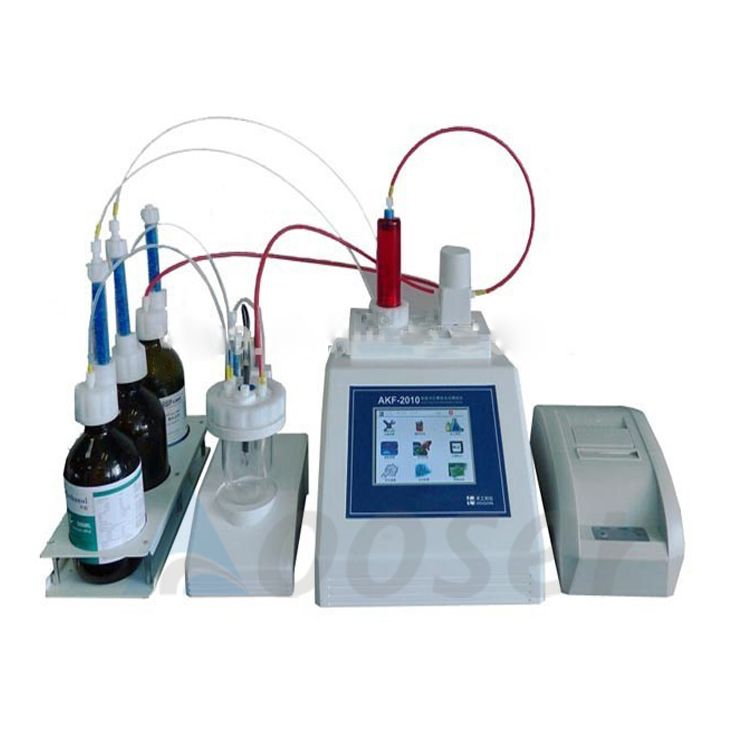

Karl Fischer Moisture Analyzer for Battery Electrolyte Moisture Analyzing
1.AS-AKF-2010 Karl Fischer titrator is an Intelligent moisture tester adopting volumetry method. And it is mainly used for scientific research, produce, and education field, with high accuracy and simple operation.
2. It can be used for analyzer water in many industries fields such as Medicine, organic solvents, industrial salt, petrochemical industry, chemical fertilizer, agricultural medicine, dyes, food and beverage, surface active agent, cosmetics and so on.
3. The Karl Fischer used for lithium battery industry is mainly used for powder materials and electrolyte moisture analyzer.
Specification:
|
Model |
Volumetry Method Karl Fischer Titrator AS-AKF-2010 |
|
Testing range |
0.001-100% |
|
Measuring resolution |
1ug |
|
Result resolution |
1PPM |
|
Measuring repeatability |
99.7%, (10mg) |
|
Max error |
±0.3% |
|
Testing time |
Average 3min |
|
Date storage |
100000, can be expanded |
|
Buret |
Optional 20 ml, 10 ml and 5 ml high precision measuring tube component, attached to the uv radiation shield |
|
Titration control precision |
0.5u-0.1ml can be chosen |
|
Electrode connect |
Double platinum electrode |
|
Display mode |
HDLCD, Chinese or English can be set |
|
Data interface |
RS-232C, USB, WEB |
|
Working humidity |
≤80% |
|
Working temperature |
5-40°C |
|
Source voltage |
220V / 50HZ, can work with voltage transformer |
|
Power |
50W |
|
Dimension(L*W*H) |
400*350*280mm |
|
Weight |
5.5kg |
|
Origin |
China |
|
Warranty |
One year limited warranty with life time support |
