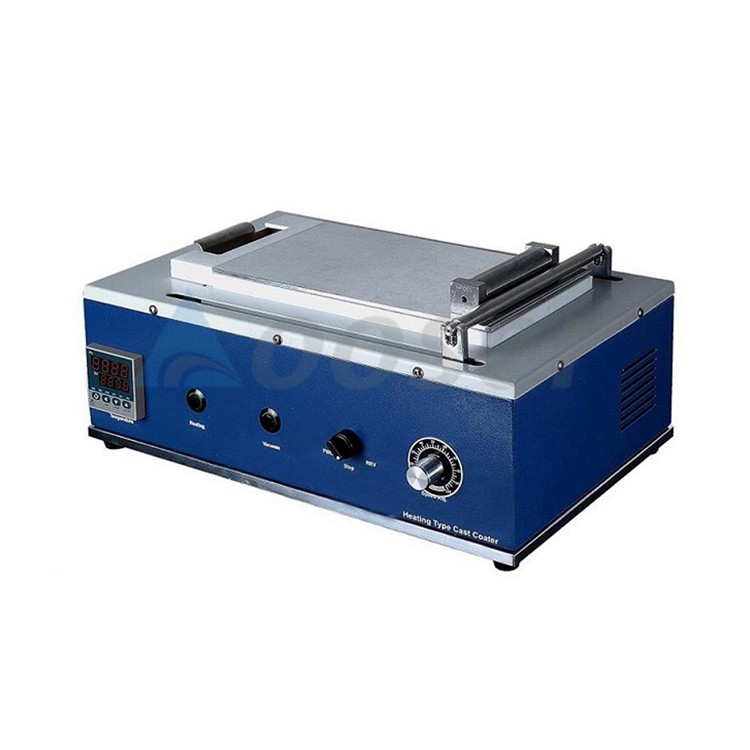

Compact Mini Tape Casting Coater With Heat-able Vacuum Bed For lithium battery

Modal: AS-MTC-HV100

Net Weight:18 kg

Compliance:CE certified

Origin: China

Description: AS-MTC-HV100 is designed for the fixed thickness and extra thin polymer coating or conductive ceramic film on various substrates.

EMAIL

Compact Mini Tape Casting Coater With Heat-able Vacuum Bed


Description:

AS-MTC-HV100 is an NRTL standard mini tape casting coater with the bottom vacuum chuck, which is heatable up to 100ºC and Film applicator is included. It is small enough to put into glove-box through its air-lock chamber and can be used in Ar gas.



A 24VDC vacuum pump is included.


Parameters:

Working Voltage

1. NRTL Listed  AC 100 - 240 V In & DC 24 V Out power adapter is included

2. 24V brushless DC motor which can be used under Ar gas glove-box

3. Safe to use without NRTL certification

4. 30W max power

Heatable Vacuum Platform

1. The vacuum chuck is made of aluminum alloy with the micro-size holes

2. Vacuum chuck Area: 200 mm (L) x 130 mm (W)

3. The heating elements are pre-installed inside the chuck

4. The digital temperature controller ( single point ) with +/- 1ºC accuracy

5. The maximum temperature is 100ºC

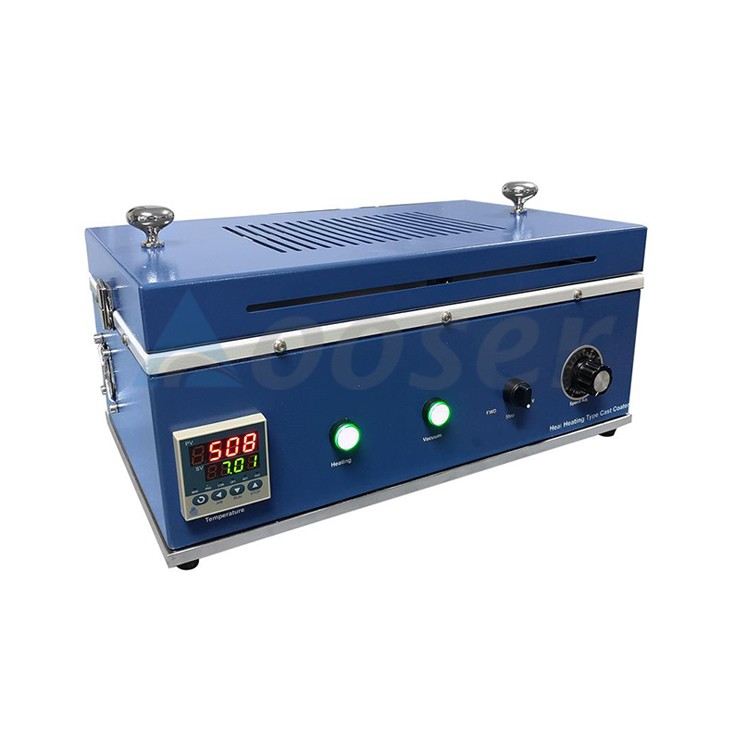

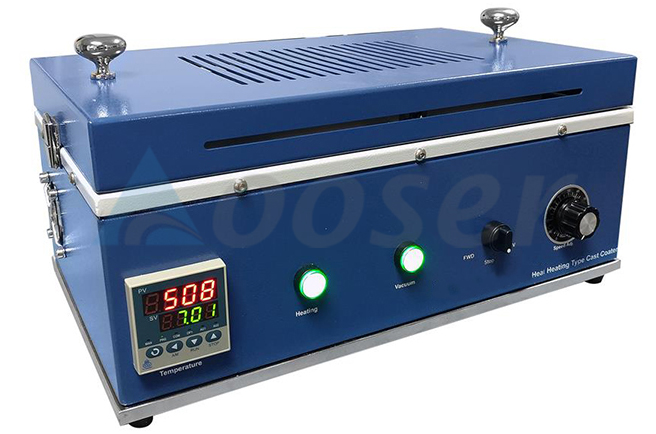

Top Cover

The top cover is included for better drying after coating

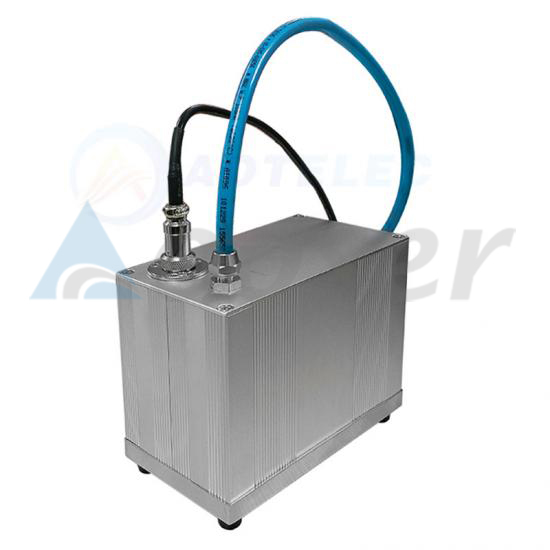

Vacuum Pump

1. One 24VDC pump is included

2. The vacuum gets power from the coater

3. 8mm O.D. tube fitting for vacuum chuck connection

Film Applicator


1. Built-in pushing bar for using micrometer adjustable applicator

2. A fixed-thickness film applicator with the various thickness (50,100,150,200μm) is included for immediate use

3. Max. coating width of the standard film applicator is 80 mm

4. The DC 24 V motor drives the pushing bar continuously to the adjustable position

5. A waste plate for extra slurry is included

6. Thickness adjustable film coater is also available at extra cost,

Slurry Boat

A stainless steel slurry boat is included

Maximum Coating Area

200 mm (L) x 100 mm (W)

The accuracy of Film Thickness

+/- 2 um

Traverse Speed and Distance

Travel Speed: 0 - 50 mm/s adjustable

Travel Distance: 0 - 360 mm adjustable


Product Dimensions

360 L x 220 D x 210 H w/ cover (mm)

155mm H (without cover)

Net Weight

18 kg (40 lbs)

Compliance

CE certified

Warranty

One year limited warranty with lifetime support

Shipping Dimensions

40"(L) x 30"(W) x 20"(H)

Shipping Weight

75 lbs

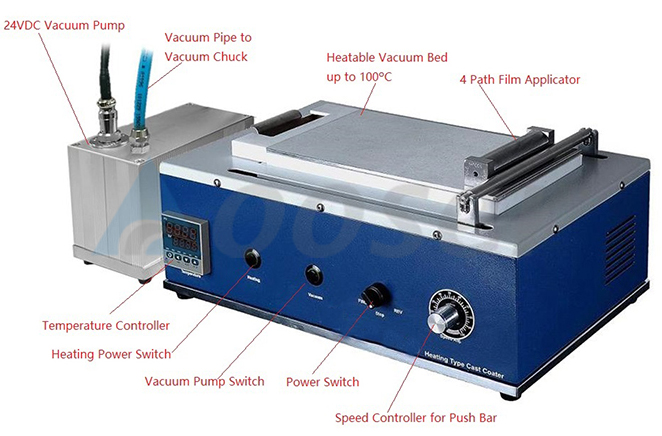

Mini Tape Casting Coater With Heat-able Vacuum Bed And Vacuum Pump

Parts:

Mini Tape Casting Coater parts


 Compact Tape Casting Coater For Lithium Battery
