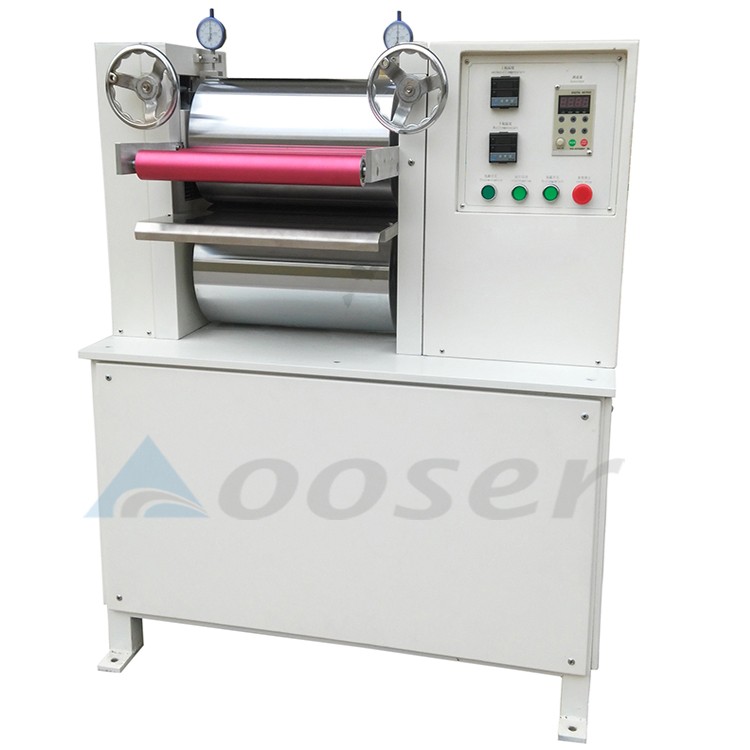

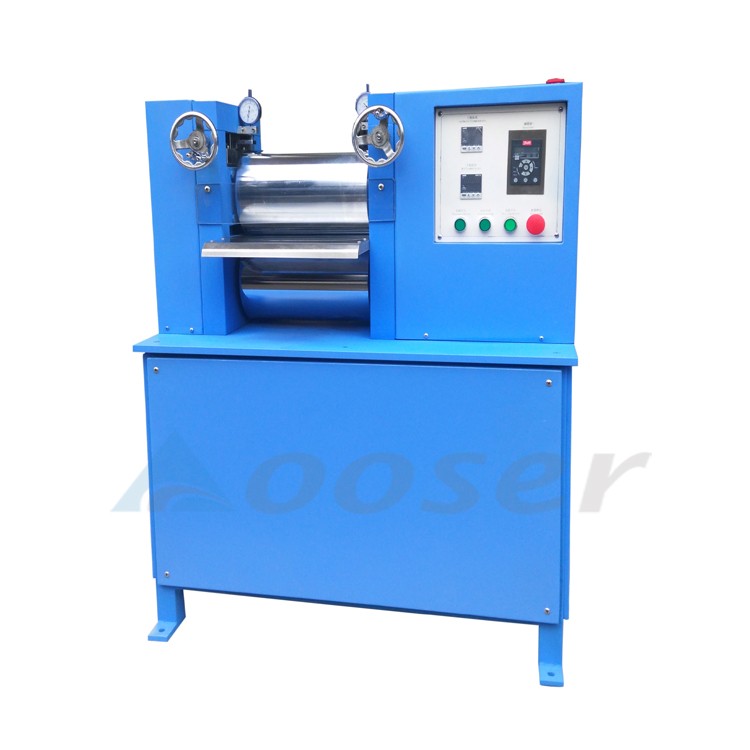

Rolling Press Roller Machine (200mm) with Heating Function for Battery Material Calendering

Item No:AS-HRP-H150-200

Product Name: 200mm Heat Roller Press Machine

Power: 6000W Total

Origin:China

EMAIL

Rolling Press Roller Machine (200mm) with Heating Function


Description:

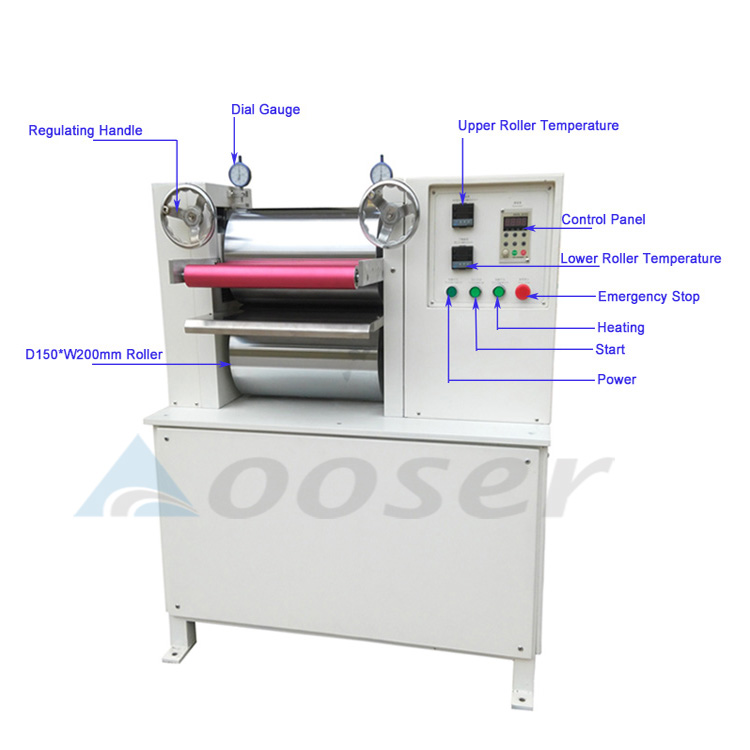

1. AS-ERP-H150-200 Roll Press Machine is a compact precision Roll Heat Press Machine . It has dual rollers of 150mm diameter and 200mm width with dual dialauge. This roll press machine is an ideal Hot rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.

2. This model Electric Calender is mainly used for small electrodes in the rolling process, suitable for universities and enterprises to use experiment line, make the battery electrode compression molding, increase the density.

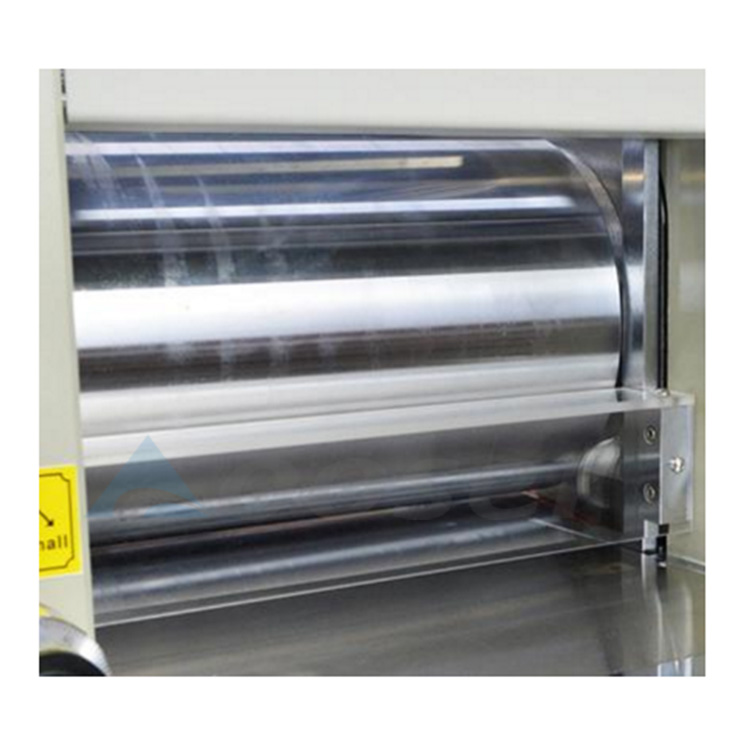

3.Equipped with a pair of 200mm width steel rollers.The roller can be heated up to 120℃.


Specification:

Model

200mm Heat Roller Press Machine  AS-HRP-H150-200

Working Voltage

110V / 220V AC single phase selectable

Power

6000W Total

Warranty

Two years limited manufacture warranty with lifetime support

Roller Dimension

150mm(Dia.) x 200mm(W)

Roller surface hardness

>HRC62

Rolling press accuracy

≤±0.005

Roller surface finish

0.8

Roller surface hardening depth

5mm

Rolling press thickness

0-3 mm adjusted with Dial gauge

Rolling press width

Max 200mm, Customized

Rolling press speed

0-6.5 m/min adjustable

Heating temperature

RT-120℃, can customized to 200C

Application Notes

This roller is specially designed for battery R&D in terms of its advantages

as affordable, compact and precise.

1 Must use acetone to clean and dry rollers surfaces after each use to

avoid rusting

2 Coated Rust-proof oil if machine were to be unused for a long period of time

3 The minimum thickness of the rolled sheet should depend on the physical property of the materials.
