  • 5 Litre Planetary Vacuum With Pump For Battery Slurry
  • 5 Litre Planetary Vacuum With Pump For Battery Slurry

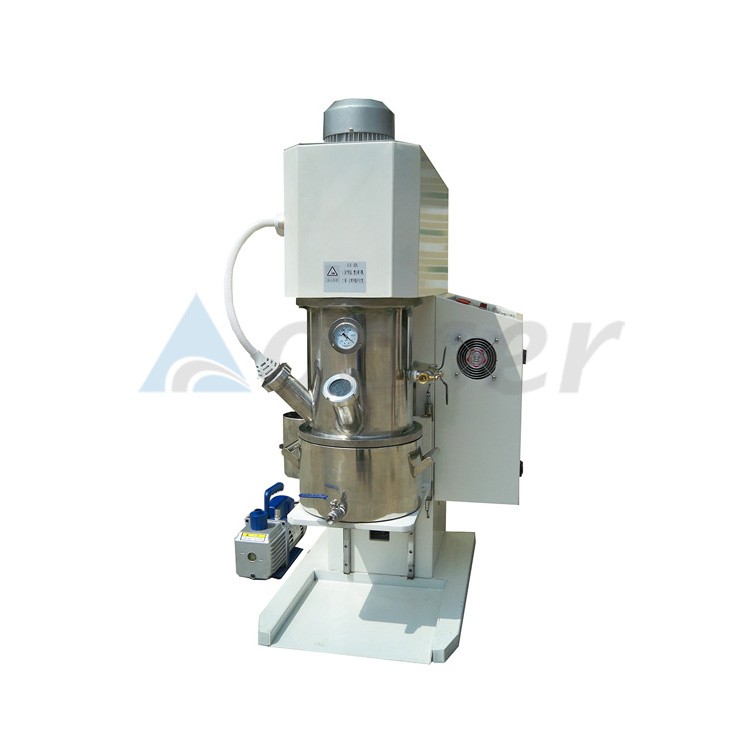

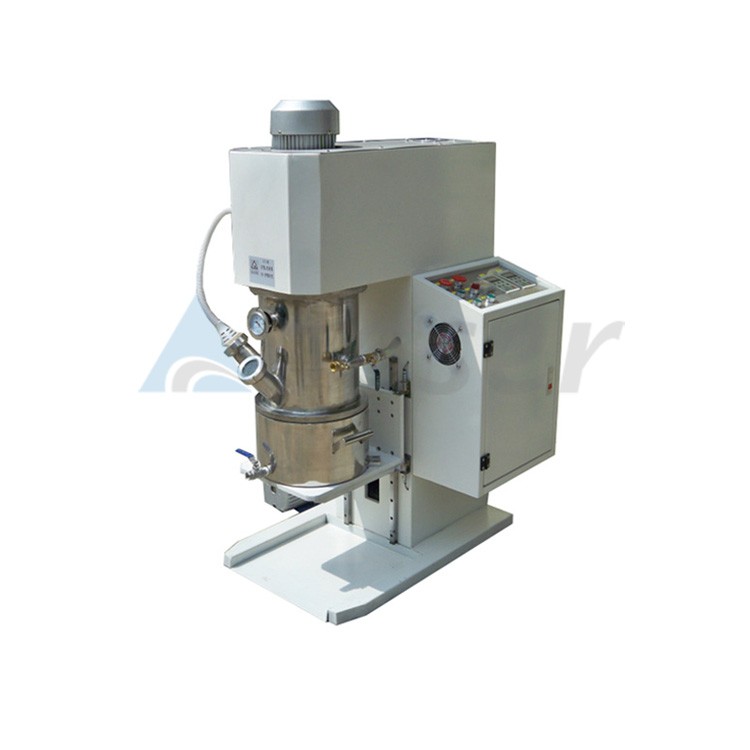

5 Litre Planetary Vacuum With Pump For Battery Slurry 5 Litre Planetary Vacuum With Pump For Battery Slurry

5 Litre Planetary Vacuum With Pump For Battery Slurry

Model: AS-PM-5L

Effective volume:5L

Net Weight: About 350kg

Origin: China

Warranty: 2 Years

Description: This machine is a high-efficiency equipment that integrates vacuum mixing and dispersion. It is suitable for the battery cathode and anode electrode slurry mixing process in the lithium battery experiment process.

EMAIL

5 Litre Planetary Vacuum With Pump For Battery Slurry


Description:

 It is suitable for the battery cathode and anode electrode slurry mixing process in the lithium battery experiment process.Also it is widely used in solder paste, silica gel, chemical industry, etc.


Features:

Using industry-leading soft sealing technology, can maintain -0.098Mpa state for more than 24 hours;

Supported by double precision guide columns, the cylinder pushes the mixing tank to open and close, humanized design, precise and efficient;

The tank body is made of high-quality 304 stainless steel, after being processed by a large horizontal lathe, and then polished by a precision automatic polishing machine to ensure high precision;

The double-dispersed blade design makes the material tumbling up and down and around, so that the slurry is mixed quickly and evenly;

The stirring motor adopts gearbox frequency conversion adjustment, and different speeds and torques can be selected according to different processes and different viscosities;


Technical Parameter:

Model

Planetary Vacuum Mixer AOT-PVM-5L

Power

3.5KW, 220V AC

The rotation speed

0-1400 rpm/min

Speed regulation

by frequency converter

Revolution speed

0-70 rpm/min

Effective volume

5L

Designed volume

9L

tank opening and closing method

geared motor driven irrigation and lifting, with water jacket.

Inside dimensions oftank

Φ260mm*180mm

Timing function

Time can be set arbitrarily 0-99 (H) set time

Other

c) To stop the operation automatically and maintain the vacuum state

d) With a mechanical vacuum meter on it

Dimension

About 1300mm*1100mm*700mm

Net Weight

About 350kg
