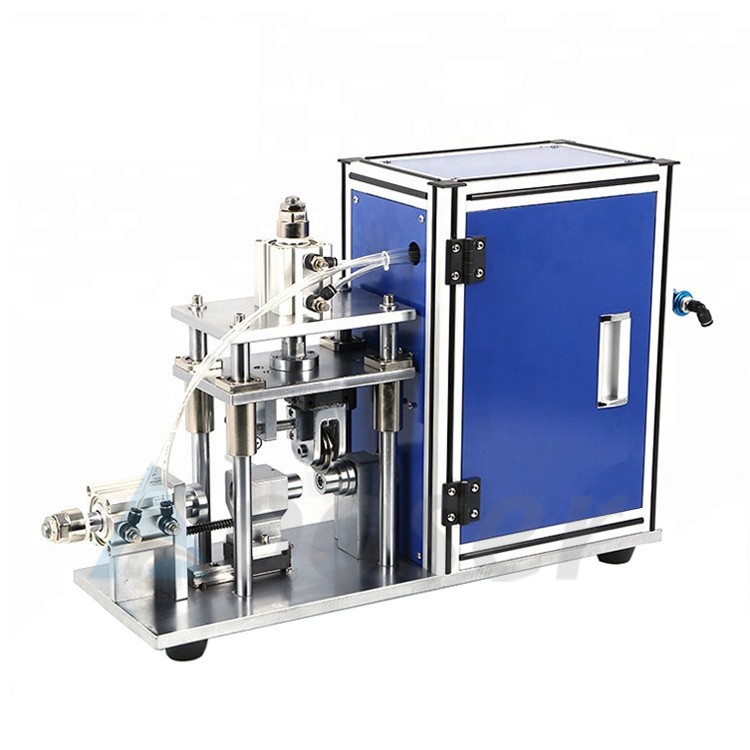

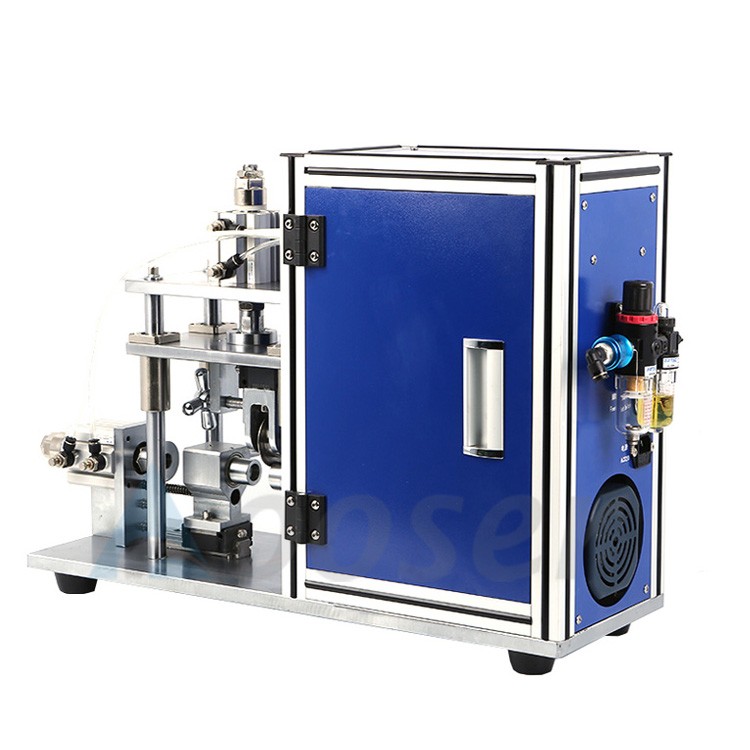

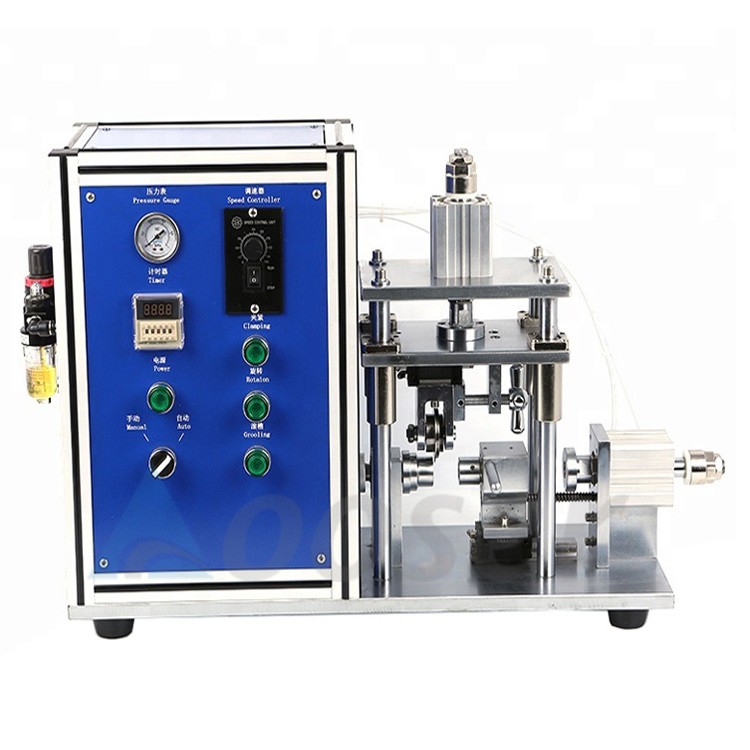

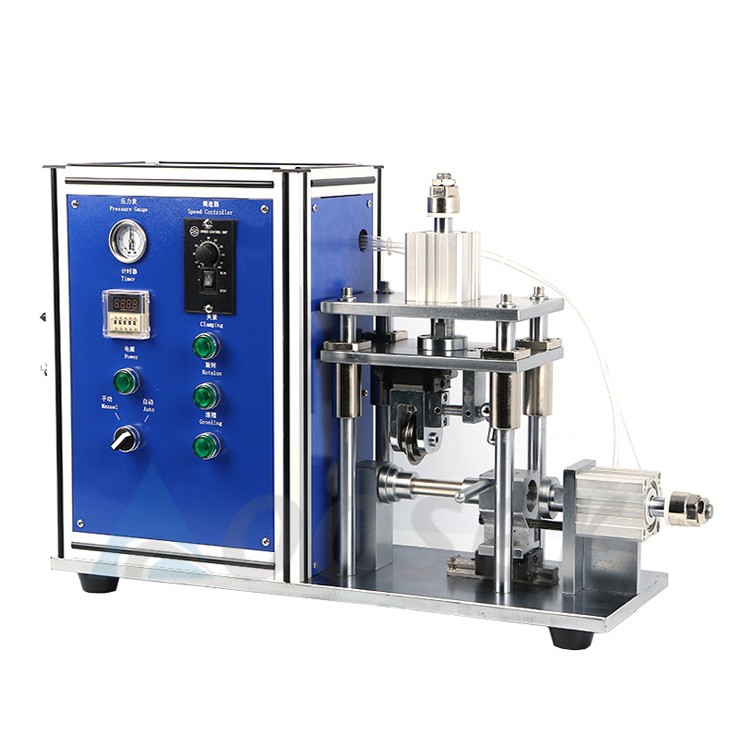

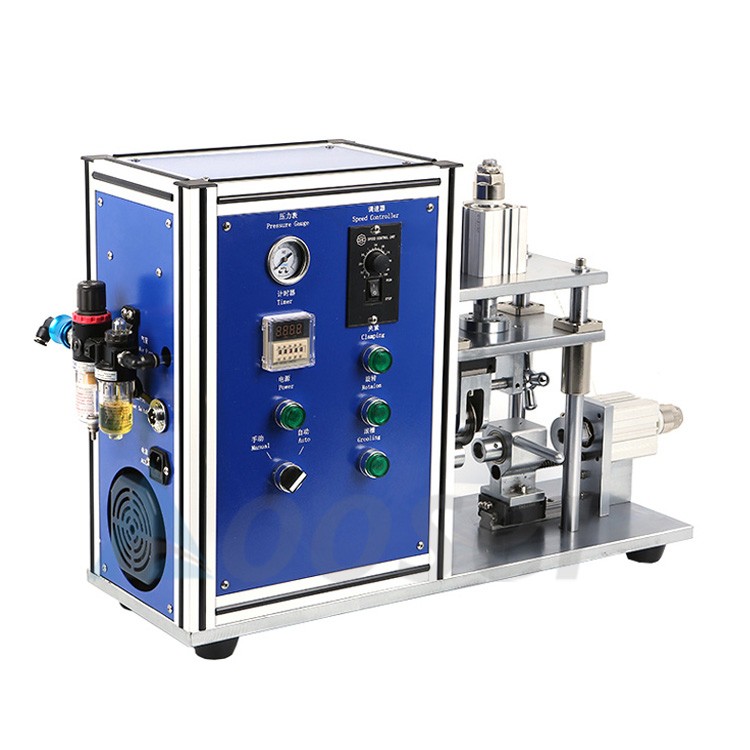

Lab small Semi-automatic Cylindrical Battery Cases Grooving Machine for 18650 21700 26650 32650

Model: AS-GV650

Suitable: 18650 21700 26650 32650

Warranty: One year

Origin: China

Lab small Semi-automatic Cylindrical Battery Cases Grooving Machine for 18650 21700 26650 32650

Applicable for uniformsemi-automatic rolling groove of cylindrical stainless steel shell or capacitor aluminum shell.

Semi-auto cylinder cell grooving machine is used for grooving various cylindrical cases including CR123,18650 26650, 32650 and AA.

Features :

1. Grooving width is adjustable.

2. Grooving depth is adjustable.

3. Grooving time can be set.

4. Stepless-speed is used for grooving speed.

5. Use Manual or automatic grooving mode.

6. Different types of cylindrical battery shell can be grooved.

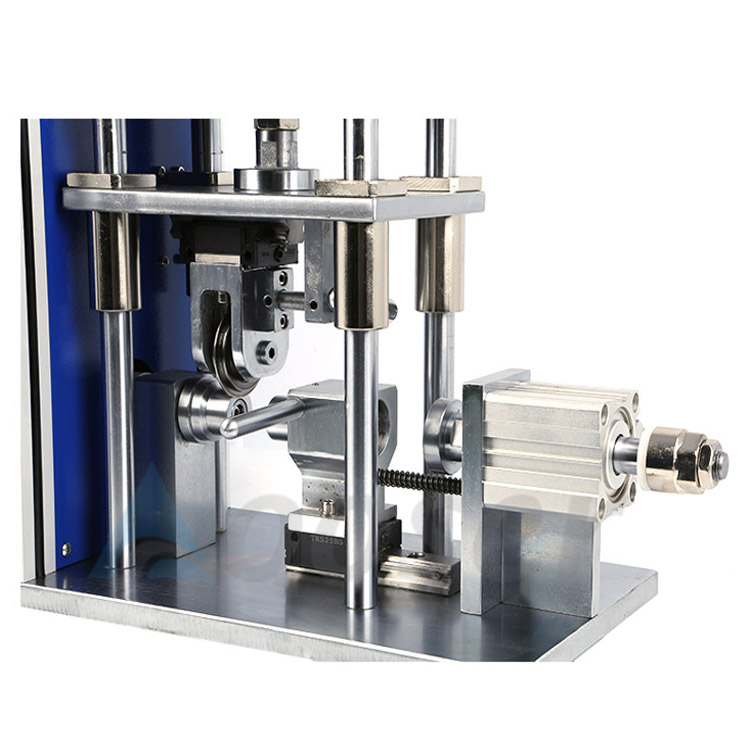

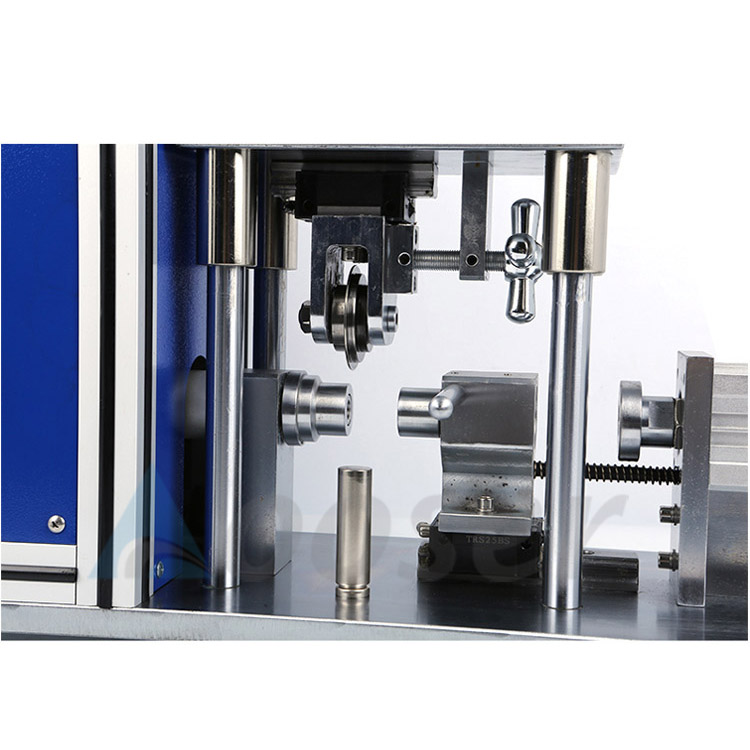

7. Hobbing cutter is precision machined to ensure the accuracy and reliability of grooving formation and the stability of use.

8. The operation is convenient and can be handled inside the glove box.

Specification:

Model	Semi-AutoGrooving Machine AS-GC650
Source voltage	110V-220V AC, 50/60Hz Single Phase
Power	140W
Warranty	One year limited and lifetime support
Suitable battery model	18650 / 26650 / 32650, can be customized
Grooving cutter position	0-20mm(adjustable)
Grooving speed	0-300r/S(adjustable)
Grooving depth	1-5mm adjustable
Grooving width	1.1-1.5mm
Grooving precision	±0.1mm
Knife life	>100 0000times
Air supply	0.5-0.7MPa
Dimension	600450350mm
Weight	68kg
Advantages	1 Customized die for other cylindrical cell types is available according to request 2 Each type of cylinder cell can only be grooved specifically by certain model of this equipment. Please select the type of cylinder cell for the corresponding grooving die of each cylinder cell type.
Origin	China
