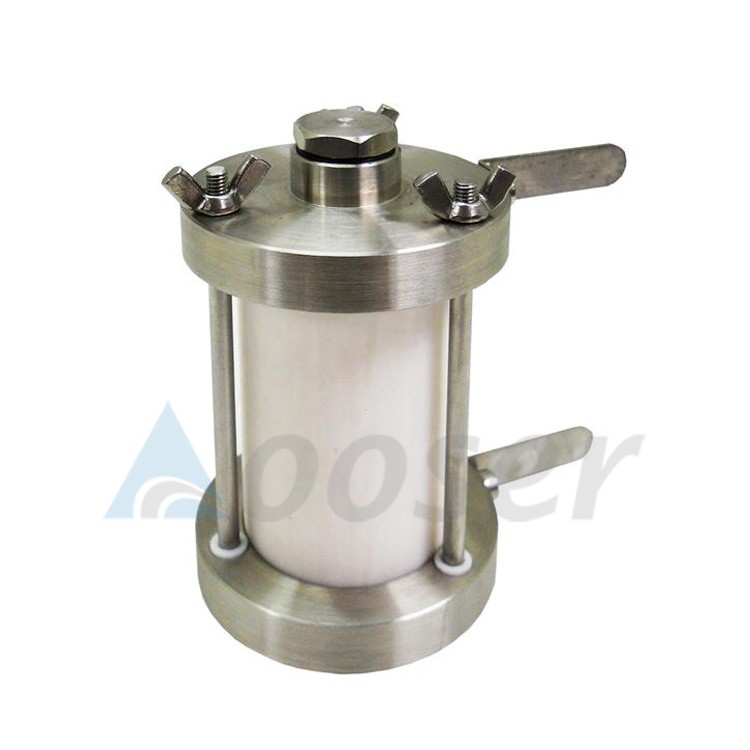

18650 PTFE Split Test Cell for Lab Cylindrical Battery Research

Model: AS-STC-18650
Application: 18650 Battery Cell
Liner Material: PTFE
Origin: China

Split Type Test Cell can test 18650 batteries. Its detachable design allows you to test the cycling behavior as well as structural changes of electrode easily and quickly.

Specification:

Model	PTEF Split Test Cell for 18650 AS-STC-18650
Dimensions (Dia x Height)	ID of PTFE Body: 18mm Height of PTFE Body: 65mm
Material	Caps: Full Stainless steel end caps Body: Electrolyte corrosive-proof PTFE body can sustain with temperature up to 250ºC O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings

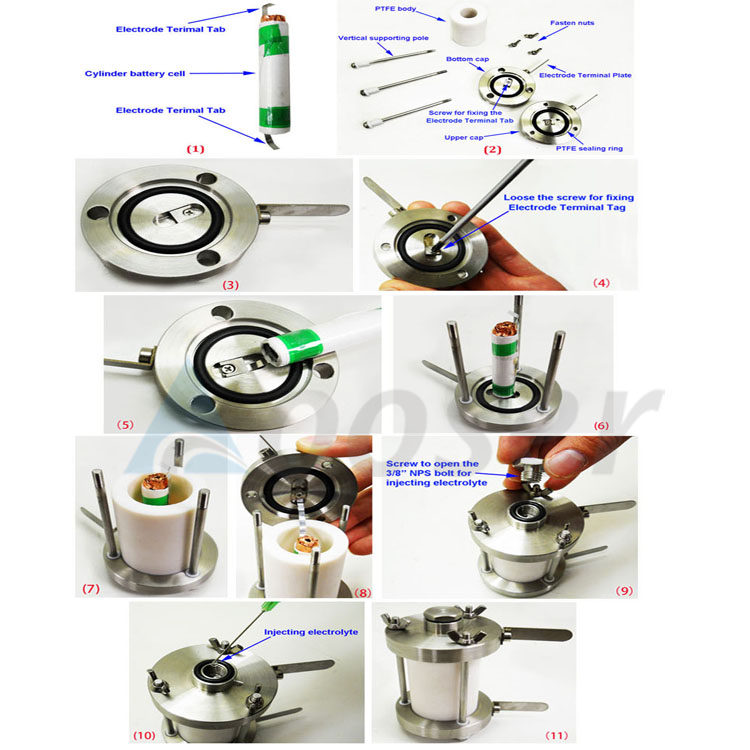

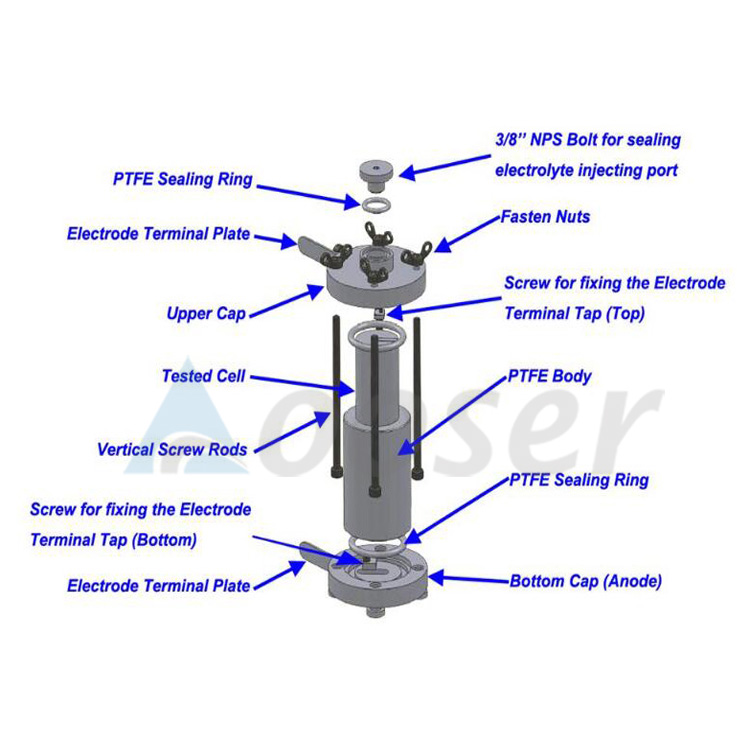

Design	Easy assembling by only four cap mounting screws Easy to separate after test Space saving, compact design allows you put it into the glove box
Origin	China
Warranty	One year limited warranty with life time support
