Model Number: AS-VRI
Weight: 200g
Measuring Method: AC 4 terminals
Origin: China
Description: AS-VRI Battery internal resistance tester can be used for measuring the Internal Resistance and Open Circuit.

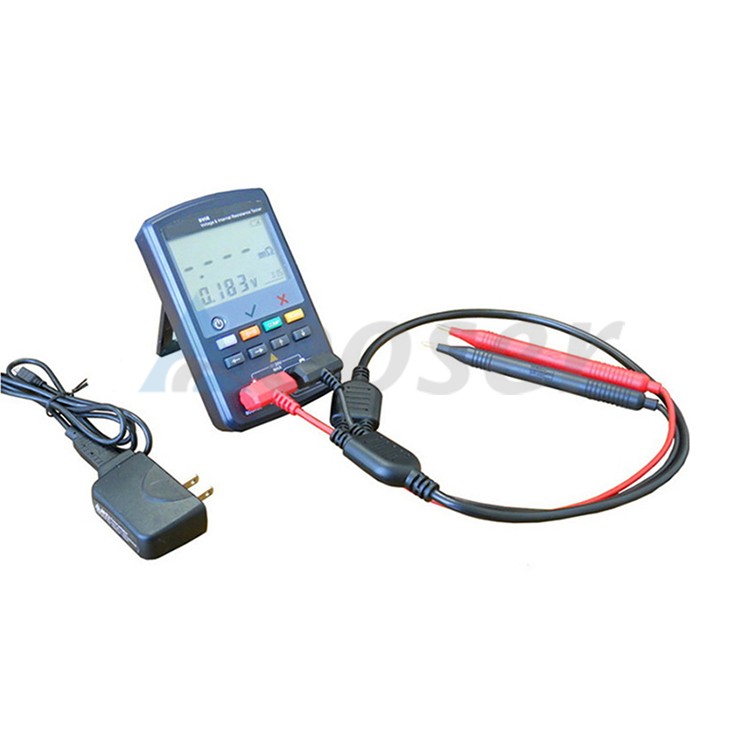

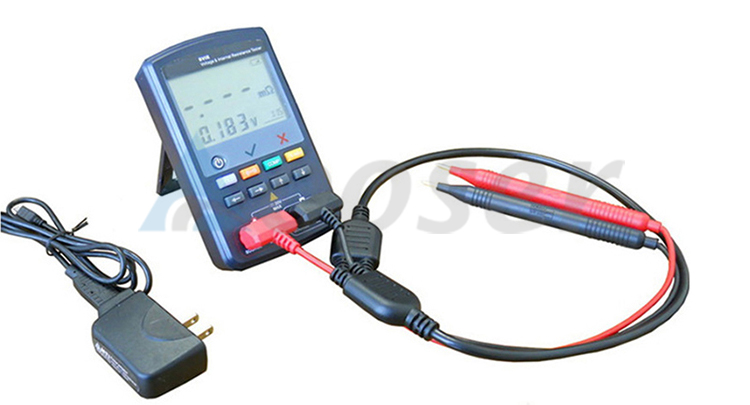

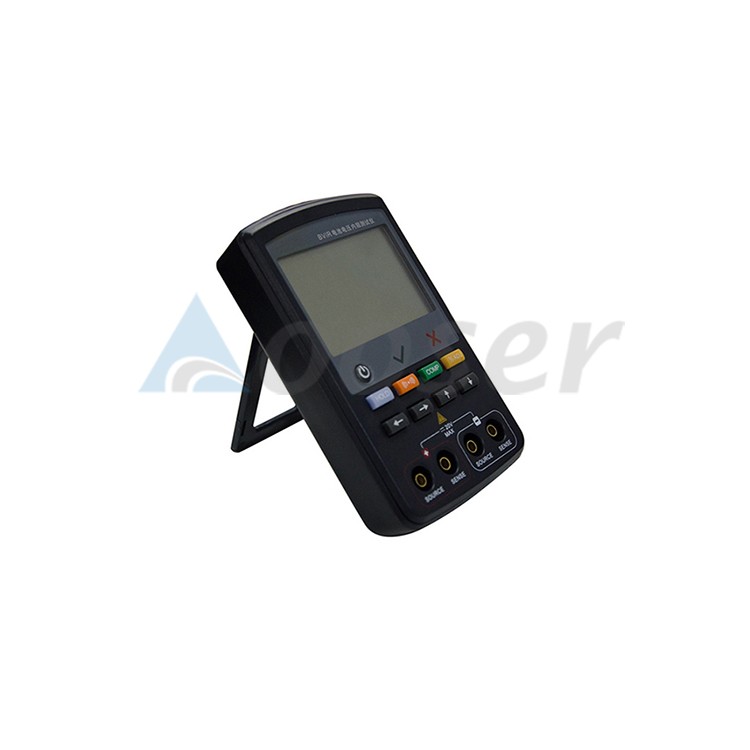

Portable Voltage Internal Resistance Impedance Tester For lithium battery
AS-VRI Battery internal resistance tester can be used for measuring the Internal Resistance and Open Circuit. Voltage of almost all of the commercial batteries such as Secondary battery, Lead acid battery, Nickle cadmium, Nickle-metal Hydride and Li-ion battery.
|
Model |
Battery Internal Resistance Tester AS-VRI |
||
|
Measuring Method |
AC 4 terminals |
||
|
Voltage |
Voltage Measurement |
0～20V |
|
|
Precision |
0.1% |
||
|
Resistance |
Resistance Measurement |
20mΩ\200mΩ\2000mΩ Auto/Manual Switch |
|
|
Precision |
0～200mΩ |
1% |
|
|
201mΩ～2000mΩ |
3% |
||
|
A/D |
12 Digits SAR Comparing |
||
|
Testing |
Sampling Frequency |
1KHz |
|
|
Sampling Rate |
1000 times/S |
||
|
Current |
< AC 20mA |
||
|
Response |
Refresh 5 times/S |
||
|
Comparator |
On/Off (Manual) |
||
|
Number of Comparator |
10Sets |
||
|
Data Storage |
100,000 Entries |
||
|
Calibration |
A 100 mOhm Resistor in Standard Package for Calibration |
||
|
Dimension |
W*D*H: 120*75*25(mm) |
||
|
Weight |
200g |
||
|
Suggested Environment |
10℃~ 40℃ in temperature and 30% ~ 80% RH in Humidity |
||
