Simple Battery Simulator (Emulator) for Testing Batteries Charging and Discharging

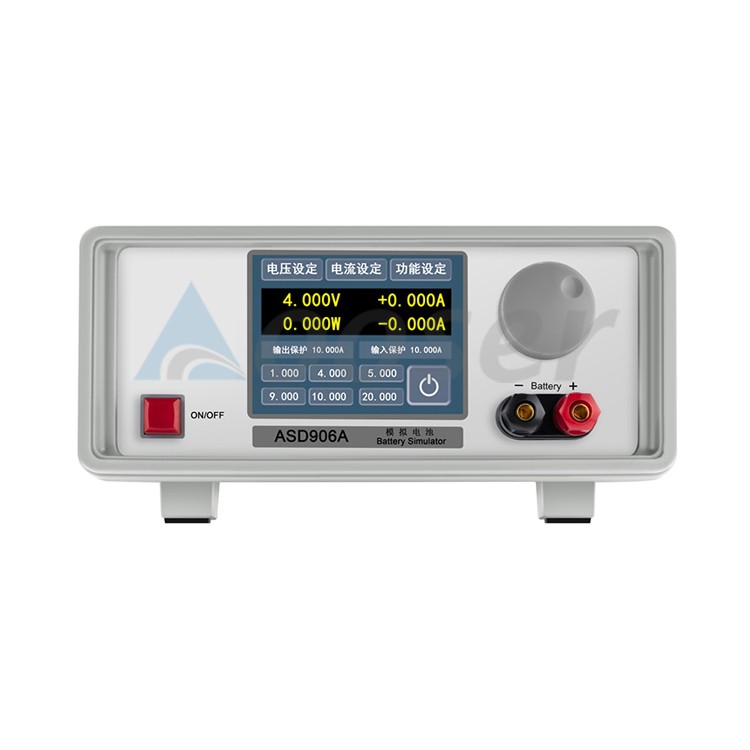

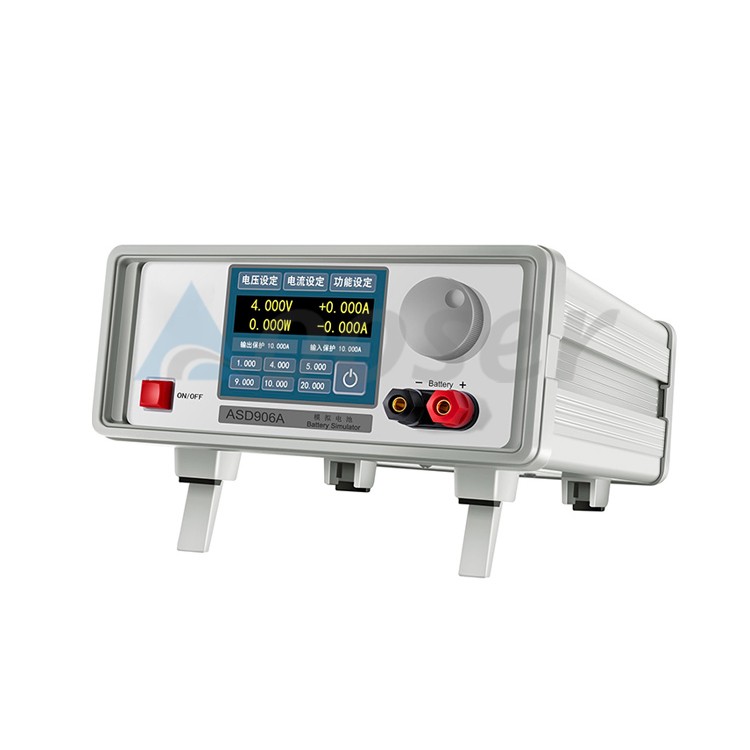

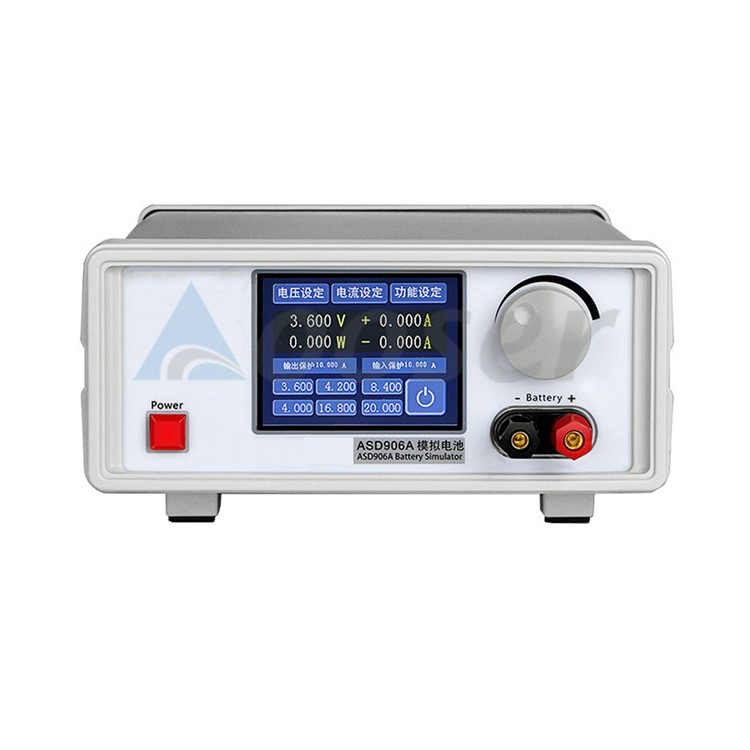

Simple Battery Simulator (Emulator) for Testing Batteries Charging and Discharging

Model: AS-D906A

Range: 0.1-20V, 0-10A

Resolution: 1mV/1mA

Net Weight: 2.9Kg

Description: It is a tool used to simulate the performance of different types of batteries, including lithium-ion and lead-acid batteries. It helps in determining the lifespan, capacity, and discharge characteristics of a battery.

Simple Battery Simulator (Emulator) for Testing Batteries Charging and Discharging

Description:

The AS-D906A analog battery power supply has the function of output power supply and input charging, which can simulate the charging and discharging of the battery.Its output voltage, input and output current protection value can be set.

Features:

PCBA standby current can be tested.

It can be switched to the MA voltage when the current is low.

Linear programmable dc power supply;

Quick charge and discharge switching;

High precision and high resolution 1mV/1mA;

Have charge and discharge functions;

High stability, low noise, low drift;

6 sets of voltage setting memory storage function;

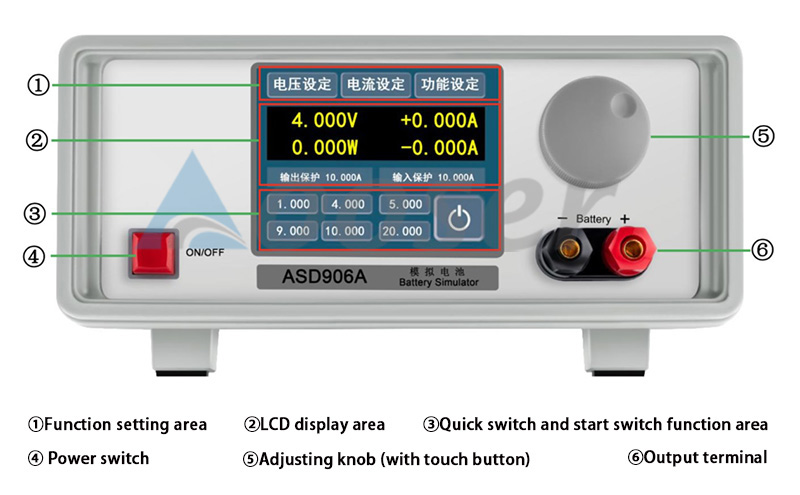

The 3.5-inch touch LCD screen supports direct input of parameters;

The panel function is easy to operate；

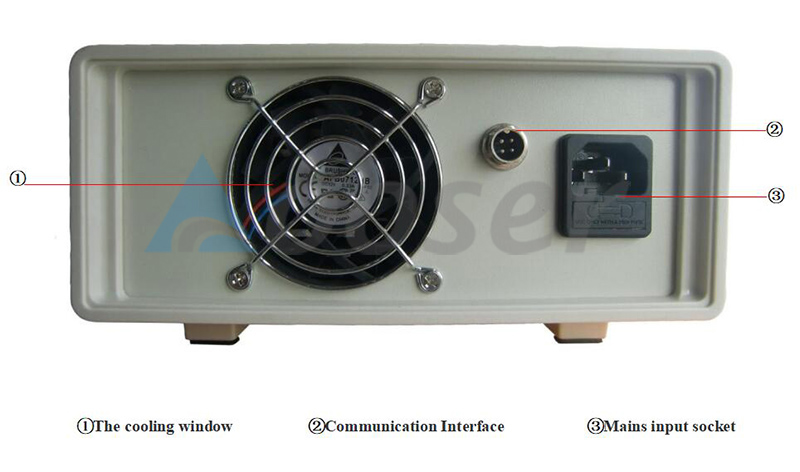

Serial communication version can be selected (baud rate: 115200);

Technical Specifications:

Item	Parameter	Specification index
Ouput(discharge)	Voltage	0.1-20V
Ouput(discharge)	Current	0-10A
Input（charge）	Voltage	0.2-20V
Input（charge）	Current	0.1-10V/0-10A10.01-20V/0-5A
Set theResolution	Voltage	0.1-5V:1mV 5.01-20V:5mV
Set theResolution	Current	1mA
AccuracySetting(@25°C)	Voltage	0.1-5V:0.05% +2mV
ReadbackResolution	Voltage	5.01-20V:0.05% +10mV
ReadbackResolution (@25°C)	Voltage	0.1-5.0V:1mV 5.01-20V:5mV
ReadbackResolution (@25°C)	Current	0-5.0A：1mA 5-10A：1.5mA
LoadRegulation	Voltage	0.1-5V:0.05% +2mV
PowerRegulation	Voltage	5.01-20V:0.05% +10mV
Ouput(discharge)	Current	0-5.0A:0.15% +4mA
Input（charge）	Current	5.0-10A:0.15% +6mA
LoadRegulation	Voltage	<0.06%
PowerRegulation	Voltage	<0.05%
Ripple noise	Voltage	5mVp-p
PowerInput	Voltage scope	175Vac~265Vac
PowerInput	Requency range	47-63Hz
TesterSize	HxWxD	104mm211mm256mm
Packing Size	HxWxD	180mm290mm360mm
Weight	Net Weight	2.9Kg
Weight	Total package weight	3.6Kg
