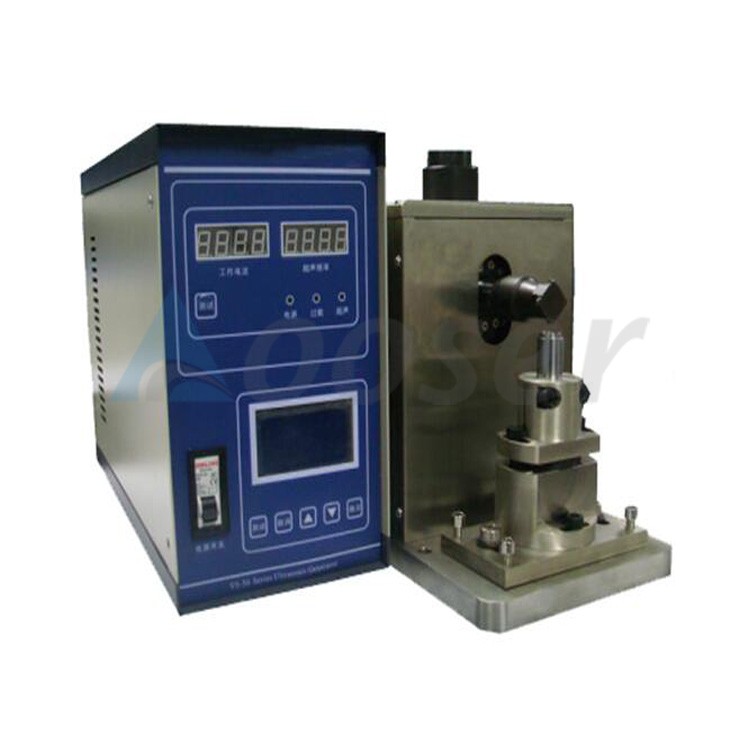

Ultrasonic Spot Metal Welder for Lab Cylinder Cell Aluminum Tab and Cap Welding

Model: AS-USW-50A
Power: 800W
Suitable for : 18650 26650 etc
Origin: China

Ultrasonic Spot Metal Welder for Lab Cylinder Cell Aluminum Tab and Cap Welding

Description:

1.Ultrasonic Spot Welding Machine is an ultrasonic metal welder which is used for cylinder cell Aluminum tab and Cap welding.

2.Ultrasonic welding machine has the function of Automatic frequency tracking,and you don’t need to setting frequency always, simple operation.

3.Advantages with laser welding :

3.1 Laser welding needs to weld after electrolyte filling, needs to wipe the tab.AS-USW-50A welding cap before electrolyte filled, more simple.

3.2 Laser welding is about 2-3% NG because of burning through tab,this AS-USW-50A spot welder close to 0%.

3.3 Ultrasonic welding can weld 2-3layers Tab to Cap

3.4 High efficiency, Low cost, Small volume, simple operation

Specification:

Model	AS-USW-50A
Source voltage	AC220V, 50HZ, can be customized
Power	800W
Type	Ultrasonic spot welding machine
Frequency	50KHZ
Welding time	0.05-9.99s
Air supply	0.2-0.8MPa
Welding effect	Single layer or multi-layer Aluminum tab andAl Cap welding , belt melt, welding firmly

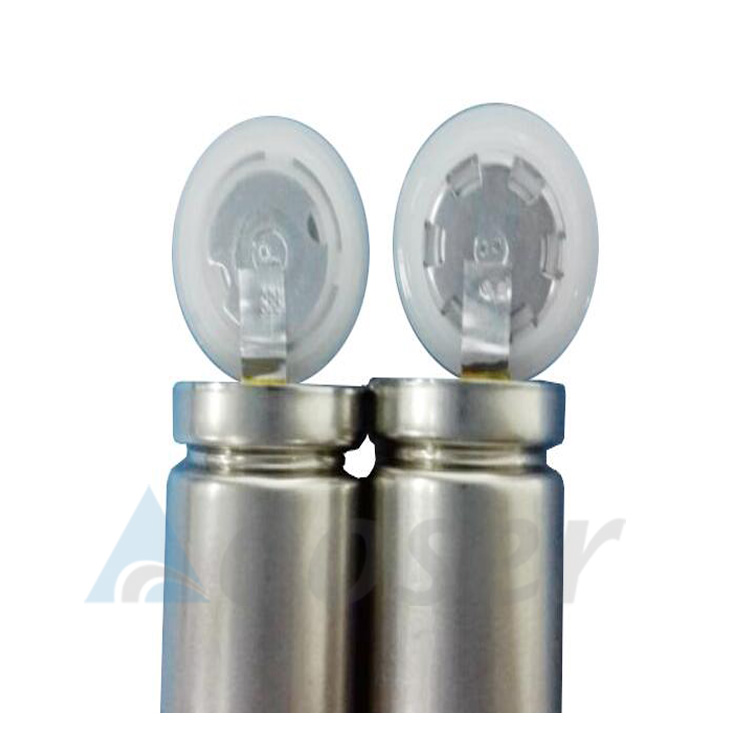

Welding ability	1 Materials : Al Tab and cylinder cell cap (18650, 26650 and so on) 2 Al tab thickness : 0.08-0.15mm 3 Welding mode : according to your requirements 4 Welding area : can be customized
Dimension (LWH)	Power box : 400170300mm Welding machine : 300200270mm
Origin	China
Warranty	One year limited warranty with life time support

Ultrasonic Spot Welder Machine
