Model: AS-SDP-200
Voltage: AC 220V 50Hz±10%, 110VCustomized
Power: 100W
Stacking Layer:L(0-200)mm, W(0-200)mm
Max separator feeding diameter: Dia.250mm
Fixed travel distance: 400mm

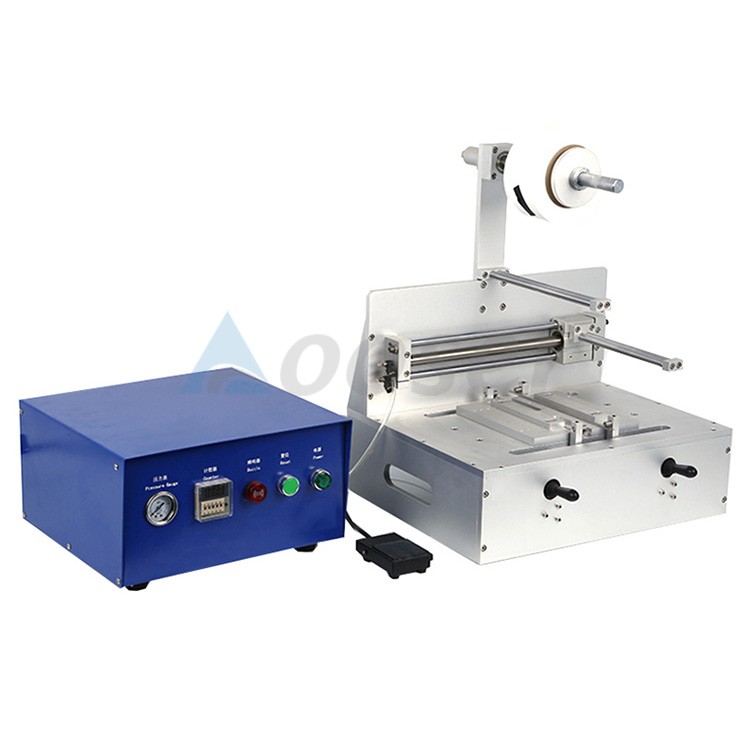

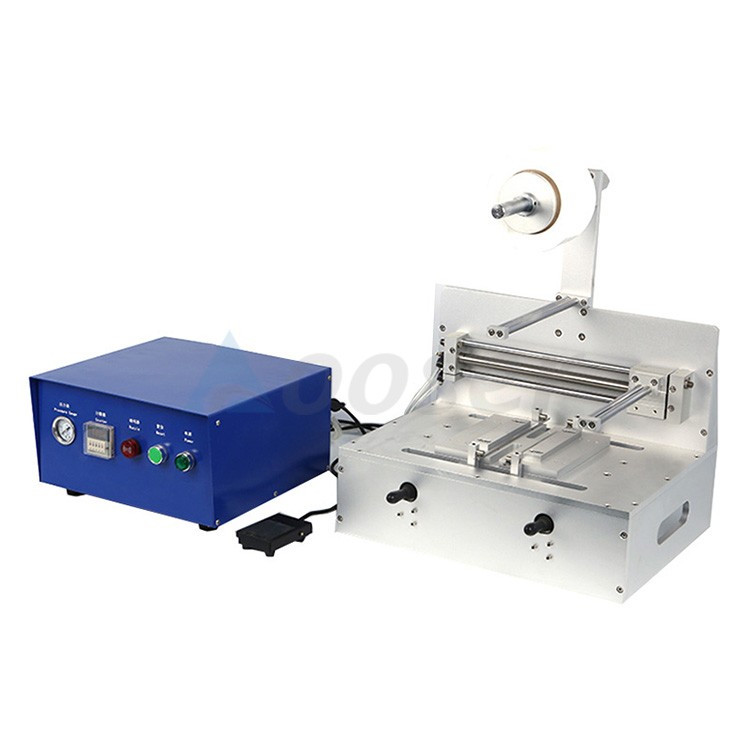

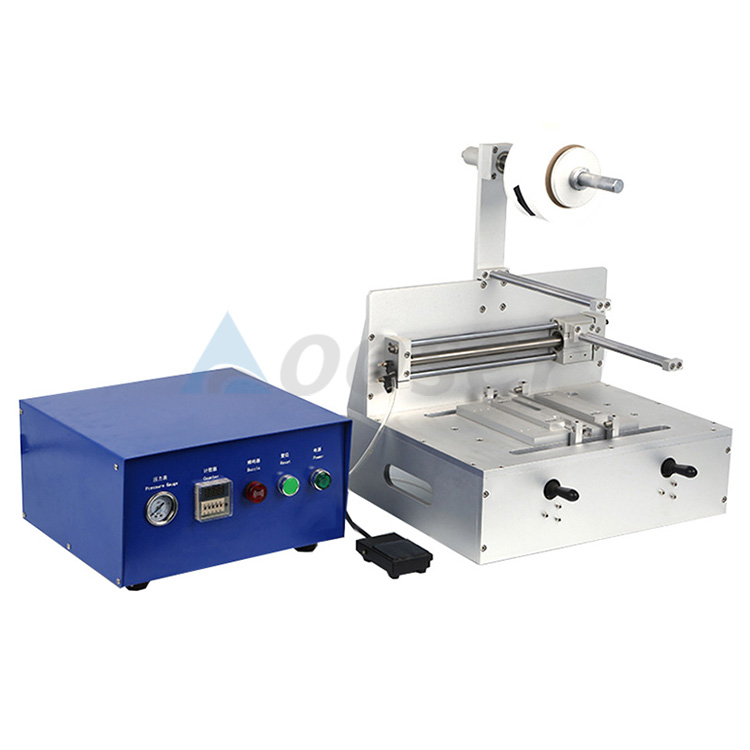

Manual Pouch Cell Stacking Machine for Lab Battery Research
Description:
This equipment is used for stacking of battery cores that stacks the anode/cathode and separator in Z shape. Stacking machine and control box integration, save space, easy to set parameters, easy to operate.
Features :
1. Desktop type which can be placed on normal table.
2. It is easy to maintain, operate and commission the machine.
3. The size range of applicable stacking sheets is big.

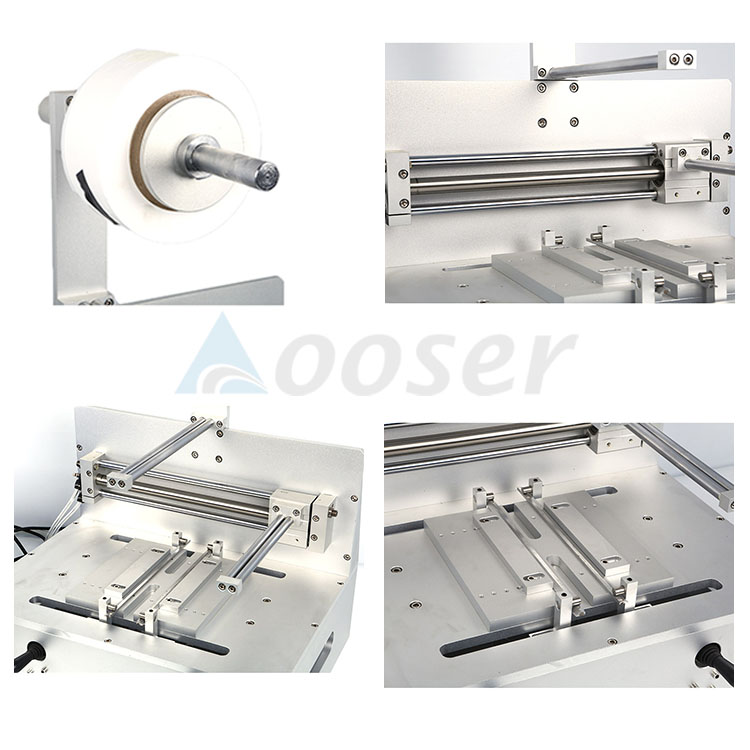

4. The battery electrode sheets are placed manually, and the fixture assists the positioning to ensure the uniformity of the stack.
5.Work efficiency is high, with digital timer.
6. Use foot switch to control cylinder work.
7.Compact size, appearance shape is nice.
Application:
Battery lab
Battery research
Lithium ion battery lab
Material research
Trial-production
Technical parameters:
|
Model |
Pouch CellStacking Machine AS-SDP-200 |
|
Voltage supply |
AC 220V 50Hz±10%, 110VCustomized |
|
Power |
100W |
|
Stacking Layer Length |
L(0-200)mm, W(0-200)mm |
|
Max separator feeding diameter |
Dia.250mm |
|
Fixed travel distance |
400mm |
|
Travel cycle |
1 - 9999 cycles |
|
Air supply |
0.25-0.55MPa |
|
Machine dimension(L*W*H) |
L650mmW400mmH700mm |
|
Control box dimension(L*W*H) |
L200mmW300mmH380mm |
|
NetWeight |
35kg |
|
Packing weight |
About 75 kg |
|
Warranty |
One Year limited warranty with lifetime support |
