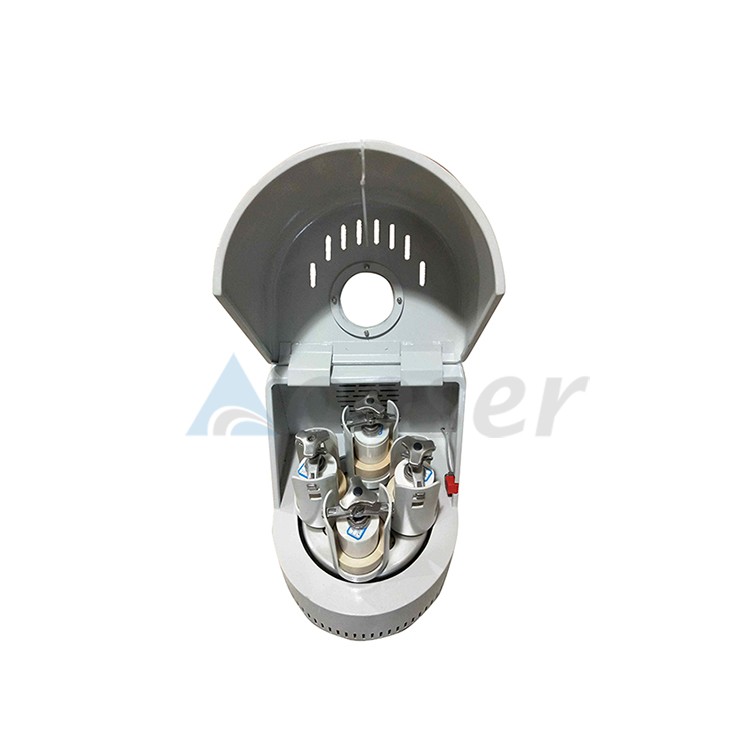

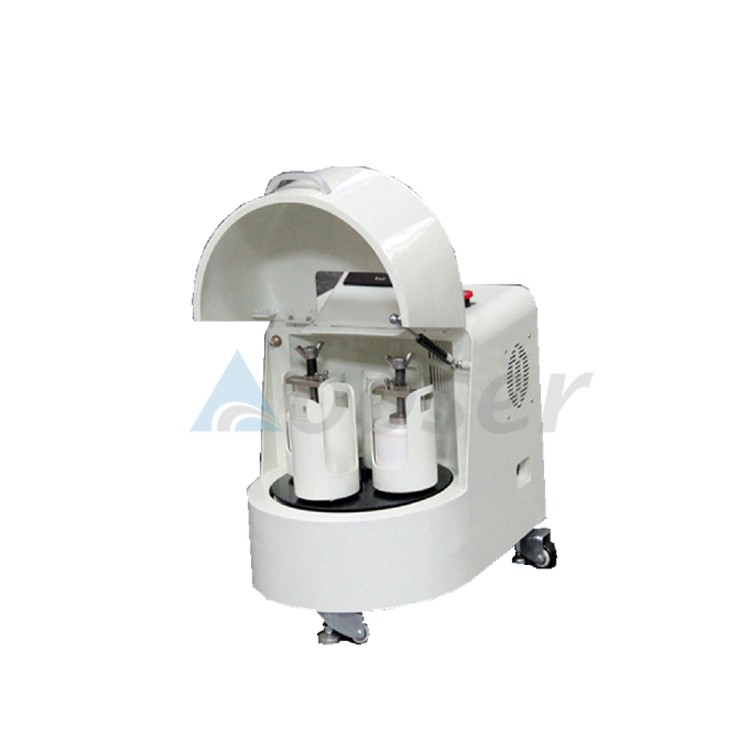

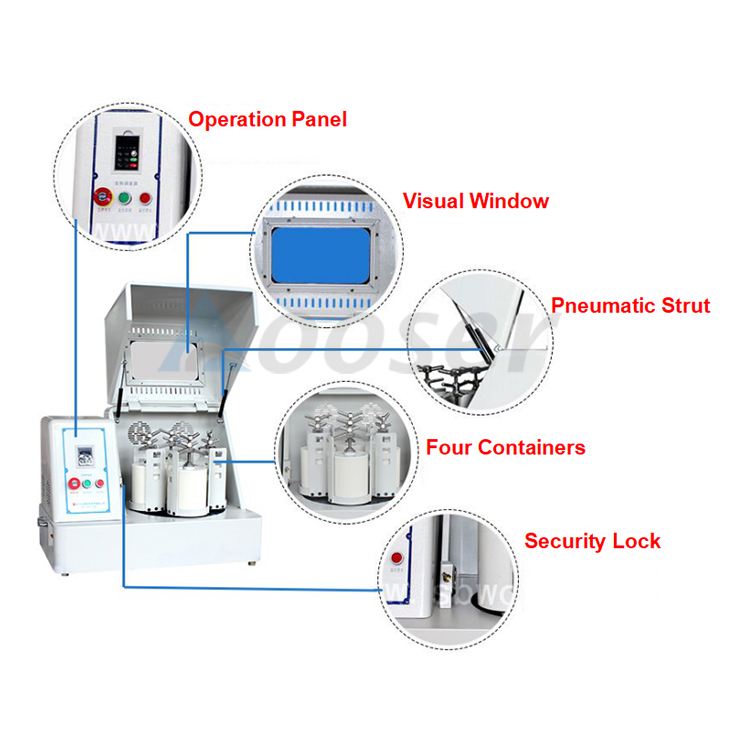

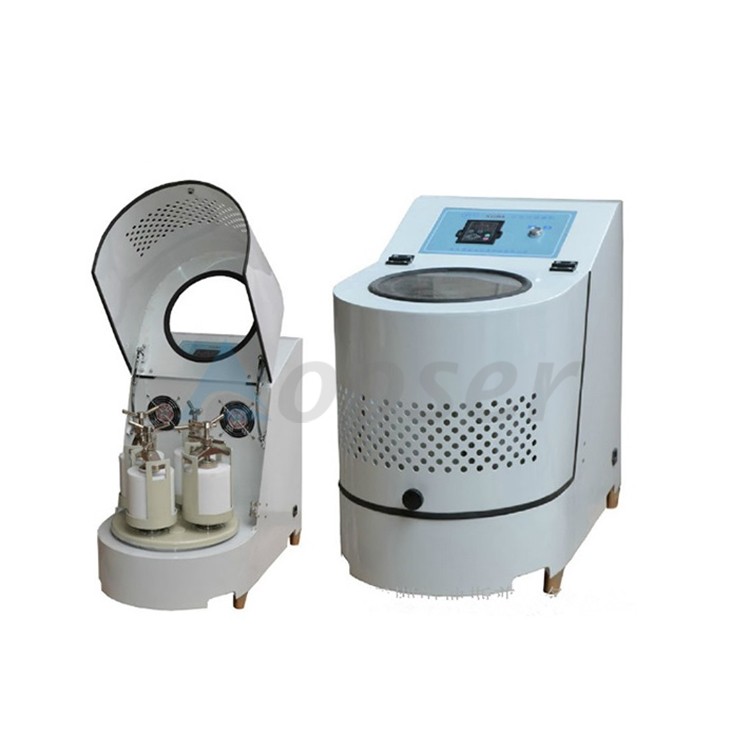

0.4L-8L Planetary Ball Mill Machine for Lithium Battery

Working Voltage

220V AC Power

Max. Power Consumption

750W

Speed control

Variable by changing frequency of three phase AC motor

Rotary Rate

1. Main plate rotation: 50-400 rpm

2. Mixing tank self-rotation: 100-800 rpm

Digital display

1. Digital display the speed in RPM/Hz
2. Timer controls major platen's running time from 0 - 9999 hours

Tank (Jar)

Lock Clamps (included )

Four stainless Jars are included
Various jars are available as optional from 50ml upto 5000ml capacity

Compliance

CE Certified

Warranty

One year limited warranty with lifetime support

Production Dimensions

350x400x400mm

Net Weight

220 Lb

Application Notes

1. SS304 mixing jar is suitable for grinding various metal materials
2. Must place 4 jars or 2 in symmetrical with similar weight in the ball mill to keep balance during rotation, If using one jar, you must put another jar with the same weight in symmetrical position. Otherwise, unbalance rotation, especially one jar, may damage the machine.
