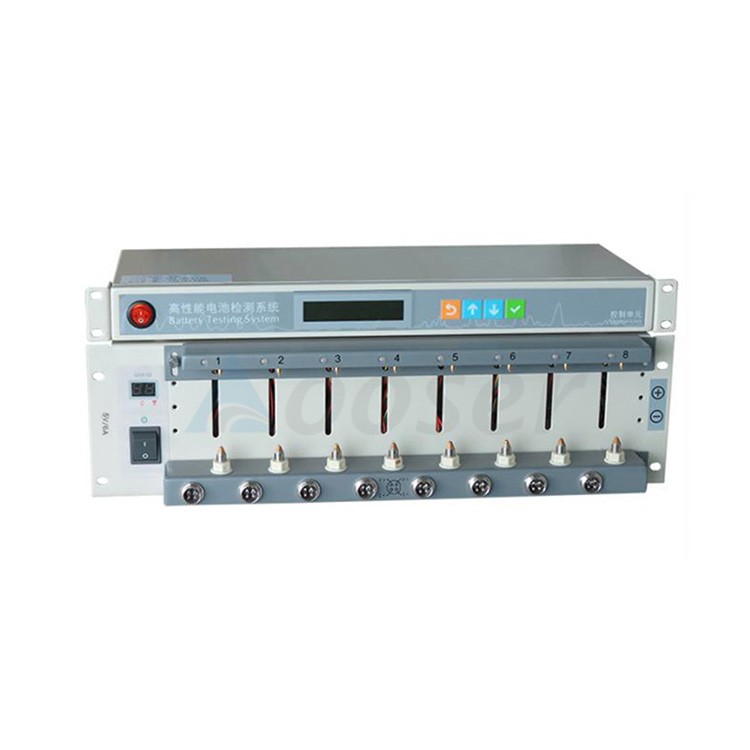

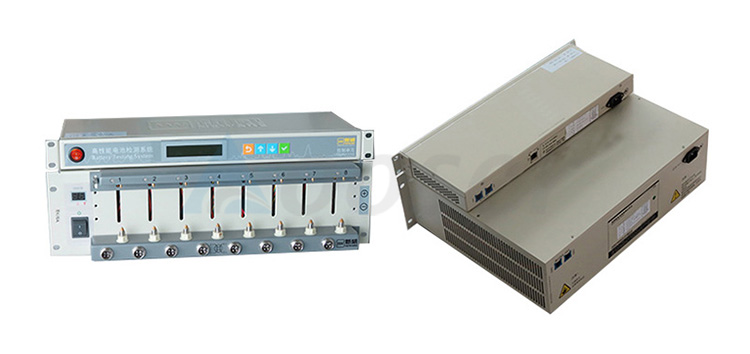

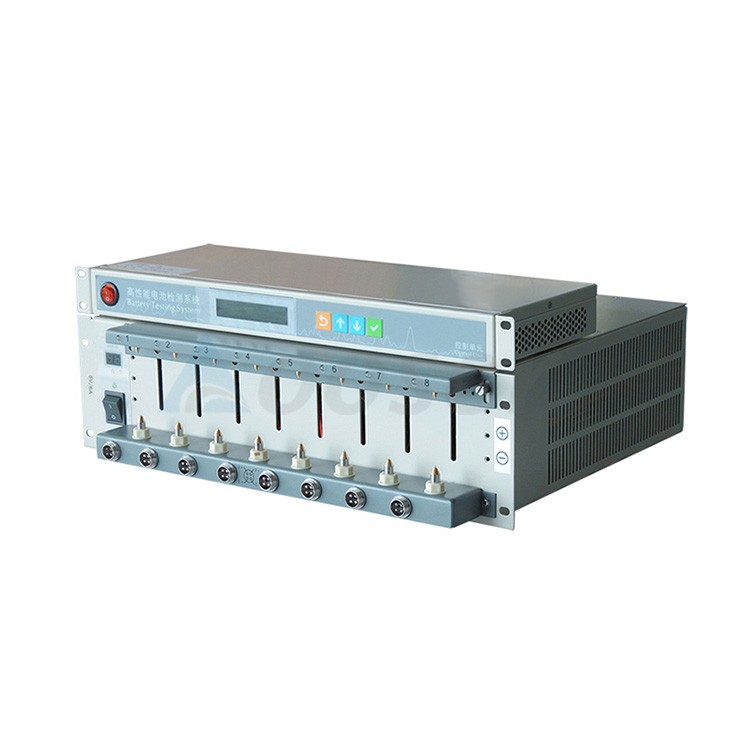

Automatic Range 5V6A Battery Tester for Supercapacitor Testing

The lithium battery and supercapacitor test system is an analysis and diagnosis system developed by AOOSER for supercapacitor testing. The system is divided into two parts: hardware and software. The hardware part consists of test instruments, test fixtures, and PCs, etc., which can test the performance of various types of supercapacitors under different test requirements. The system is widely used in the research and development, production, and quality inspection of supercapacitors, and has the advantages of high cost performance, high precision, and high integration.

Automatic Range 5V6A battery tester for Supercapacitor Testing

Description:

Thelithium battery andsupercapacitor test system is an analysis and diagnosis system developed by AOOSER for supercapacitor testing. The system is divided into two parts: hardware and software. The hardware part consists of test instruments, test fixtures, and PCs, etc., which can test the performance of various types of supercapacitors under different test requirements. The system is widely used in the research and development, production, and quality inspection of supercapacitors, and has the advantages of high cost performance, high precision, and high integration.

Parameters:

Equipment Model： BTS-5V6A			Equipment Item Code：CT-4008T-5V6A-S1
Project index			Parameter index
Input power			AC220V ±10% /50Hz
Input active power			425W
Input Resistance			≥1MΩ
Resolution			AD：16bit；DA：16bit
Voltage	Per Channel Voltage Range		25mV~5V
	Discharge Min Voltage		1V for universal holder, 1.5V for 2m cable
	Accuracy		± 0.05% of FS
	Stability		± 0.05% of FS
Current	Per Channel Current Range		Range1: 0.5mA~0.1A; Range2: 0.1A~3A; Range3: 3A~6A
	Accuracy		± 0.05% ofFS
	Constant Voltage Cut-off Current		Range one: 0.2mA; Range two: 12mA
	Stability		± 0.05% ofFS
Power	Per Channel Output Power		30W
	Stability		±0.1% of FS
Time	Current Response Time		(0~Full Range)＜1ms
	Step Time Range		≤（365*24）Hour
Data Recording	Recording Condition		The minimum time interval：100ms
			The minimum voltage interval：10mV
			The minimum current interval：Range 1:0.2mA Range2:12mA
	Record Frequency		10Hz
Charge	Charge Mode		Constant Current Charge、Constant Voltage Charge、 Constant Current and Constant Voltage Charge、CPC
	End Condition		Voltage、Current、Relative Time、Capacity、-ΔV
Discharge	Discharge Mode		CCD、CPD、CRD
	End Condition		Voltage、Current、Relative Time、Capacity
Pulse	Charge		CCC、CPC
	Discharge		CCD、CPC
	Min Pulse Width		500ms
	Pulse Number		Each pulse step supports 32 different pulses
	Automated Switch		Automated switch from charge to discharge for each pulse
	End Condition		Voltage, Relative Time
DCIR test	Support the calculation of DCIR in the custom fetch point.
Cycle	Loop Measure Range	1~65535 times
	Max Steps Per Loop	254
	Nested Loop	Nested loop Function，Max Support 3 Layers
Project index		Parameter index
Protection	Software Protection	Power-down Data Protection
		Off-line Testing Function
		Setting Protection Condition，Setting Parameter：Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time、Upper Capacity、Anti-reverse Function
IP protection level		IP20
Channel Features		Independent pairs of closed loop for constant
Channel Control Mode		Independent Control
Voltage and Current Testing Sample		4-wire connecting
Noisy		<85dB
Database		MySQL Database
A Means of Communication of Upper Machine		TCP/IP Protocol
Server operating system.		Window 7
Server disk configuration.		500GB
Data Output		EXCEL2003,2010、TXT
Leakage current		0.005mA
Communication Interface		Ethernet Port
Per Unit Main Channels No.		8

Equipment Working Environment:

Project index	Parameter index
Working Temperature Range	0℃~40℃
Storage Temperature Range	-10℃~50℃
Working Environment Relative Humidity Range	≤70% RH
Storage Environment Relative Humidity Range	≤80% RH

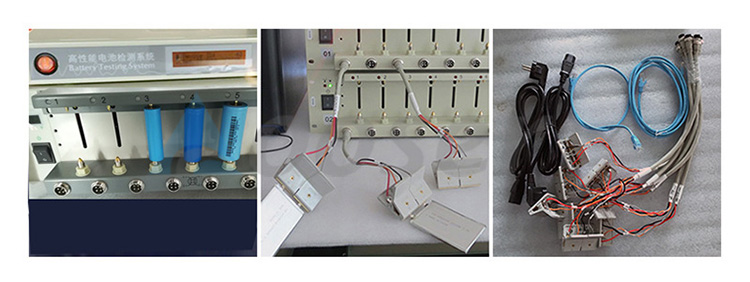

Optional clamps	Polymer clamper	Alligator clamper
Dimensions	3U，482508378(mm)
