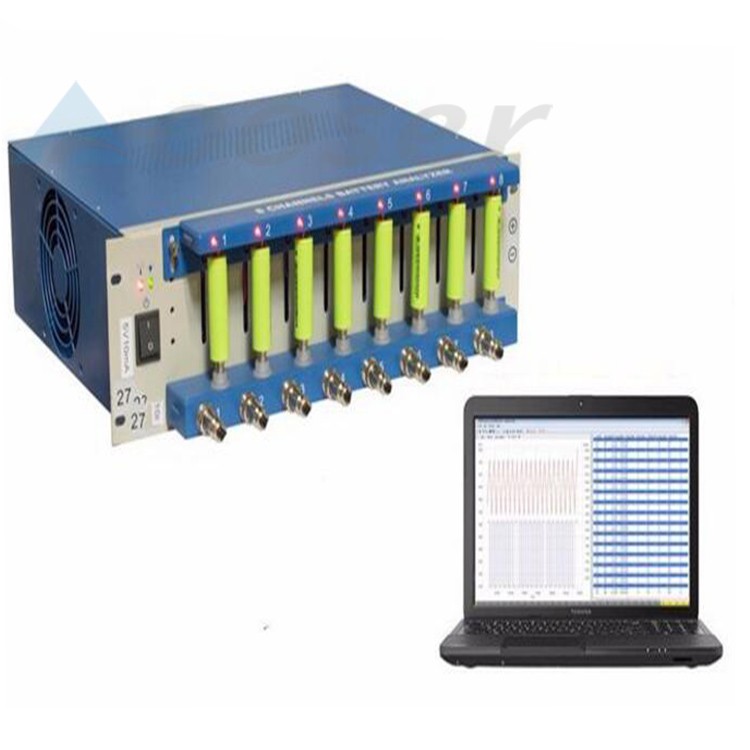

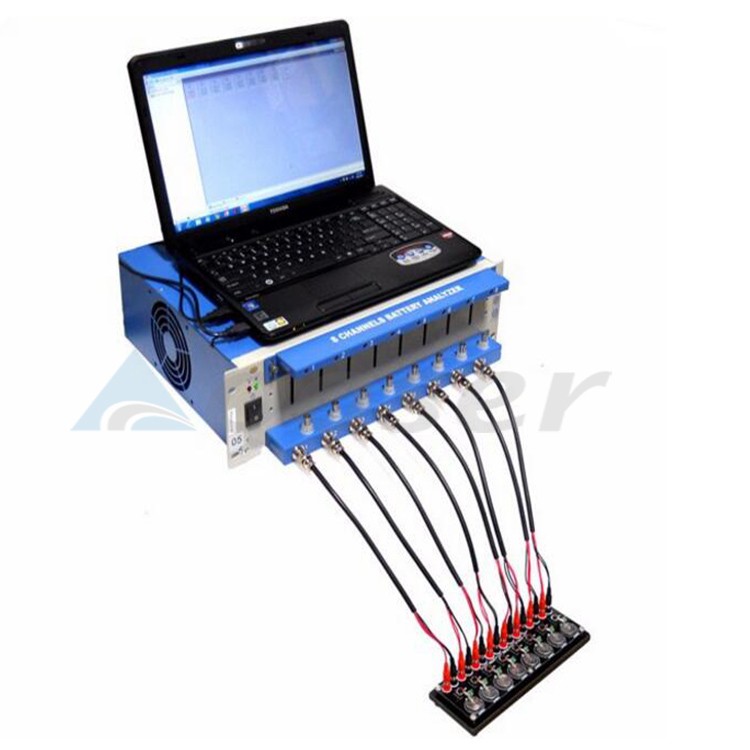

Lithium ion Battery Tester (5V3A) for Pouch Cell and Cylindrical Battery for Lab

Item

Parameter

Input Power

AC 220 V ±10% / 50 HZ

Resolution

AD: 16 bit; DA: 12 bit

Input Resistance

≥1 MΩ

Input Power

224 W

Channel Features

A Constant Current Source and a Constant Voltage Source with  Independent pairs of Closed-loop Structure

Channel Control Mode

Totally Independent Control

Voltage

Per Channel Voltage Range

10 mV~5V

Discharge Min Voltage

0.8 V

Stability

± 0.1% of FS

Accuracy

± 0.1% of FS

Current

Per Channel Current Range

6mA~3000mA

Stability

± 0.1% of FS

Accuracy

± 0.1% of FS

Power

Stability

± 0.2% of FS

Per Channel Output Power

15W

Time

Current Response Time

1ms (0-Full Range)

Step Time Range

≤(365*24 )hour/step,

Time Form Support 00:00:00(h,min:s,ms)

Data Recording

Record Condition

Time: 1s-60000s

Voltage: 10mV-5V

Current: 6mA-3000mA

Record Frequency

1Hz

Charge

End Condition

Voltage,Current,Relative Time,Capacity

Charge Mode

Constant Current Charge,Constant Voltage Charge,

Constant Current and Constant Voltage Charge

Discharge

Discharge Mode

CCD,CPD

End Condition

Voltage,Current,Relative Time,Capacity,

Pulse

Charge

CCC

Discharge

CCD

Min Pulse Width

500ms

End Condition

Voltage, Test Time

Automated Switch

Automated switch from charge to discharge for each pulse

Cycle

Max Steps Per Loop

63

Loop Measure Range

1~65535 times

Nested Loop

Nested loop Function,Max Support 3 Layers

Protection

Software Protection

Off-line Testing Function

Power-down Data Protection

Setting Protection Condition,Setting Parameter:Low Voltage limit,Upper Voltage limit,Low Current limit,Upper Current limit,Delay Time

Hardware Protection

Additional Anti-reverse Protection Model

Voltage and Current Testing Sample

4-wire connecting

Noise

<85dB

Database

MySQL Database

Data Output

EXCEL2003/2010,TXT

Communication Interface

R232

Per Unit Main Channels No.

8

Dimensions

480*330*130(mm)

Origin

China

Warranty

1 year and lifetime free for Online Explanation
