Lab Research Equipment Battery Electrode Heat Calender Roller Press Machine

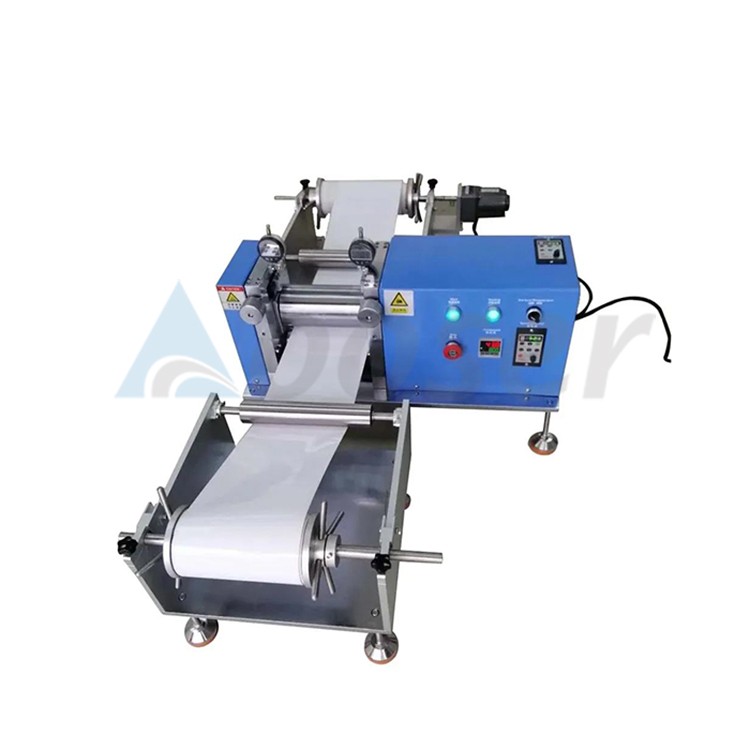

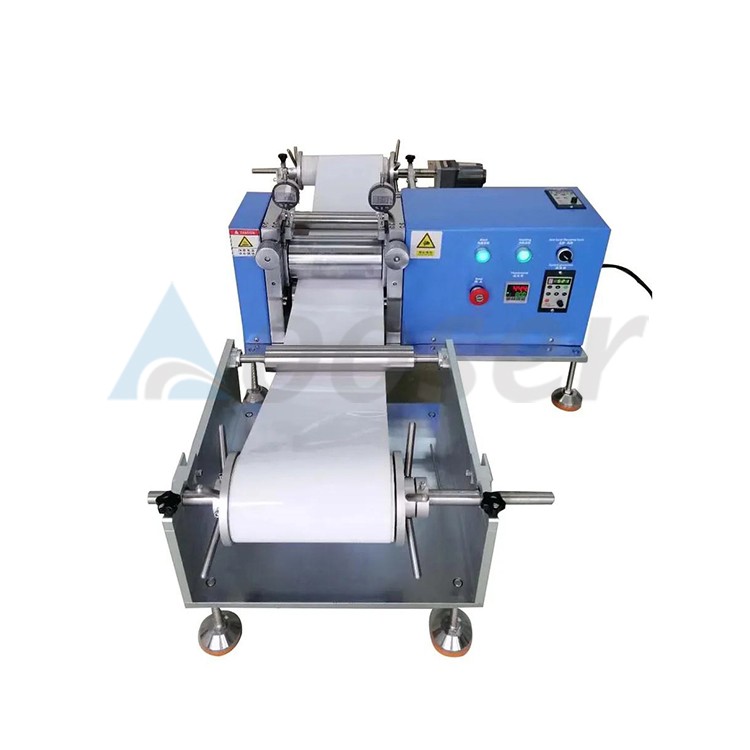

Product Name: Rolling Press Machine With Winding and Unwinding System

Origin: China

The AOT-GYJ-100C utilizes rolls composed of high-strength and high-hardness material, boasting a remarkable HRC62-63 hardness level. These rolls are constructed of 9Cr2Mo material, which has exceptional hardness and performance and undergoes a freezing treatment following heat treatment. Additionally, the rolls boast a deep surface quenching layer, ensuring a consistently stable performance.

EMAIL

Lab Research Equipment Battery Electrode Heat Calender Roller Press Machine


The AOT-GYJ-100C employs rolls with high-strength and hardness properties, registering a remarkable HRC62-63 hardness level. These rolls are made of 9Cr2Mo material renowned for its outstanding performance and hardness, undergoing a freezing treatment post-heat treatment. Expect a deep surface quenching layer that guarantees stable performance.


Incorporating a fixed pressure and limited distance pressing technique enables continuous pressing of intermittent coated battery electrodes. With stable pressure, high cylindricity of the rolling roller, and uniform rolling sheet, deformation is limited, significantly boosting production efficiency and reducing staff workload.


Product Name

 Rolling Press Machine With Winding and Unwinding System

Voltage

220V/50Hz

Power

3KW

Working pressure

Maximum5KN

Roll size

φ 100mm × 200mm

Roll temperature

130 ° C

Hardness of roller surface

HRC60-62

Effective clearance

0-3mm adjustable

Roller speed

0-4rpm, continuously variable and adjustable

Rolling force

Maximum 5T

Roll surface finish

0.8um

Roller transmission mode

High precision gear transmission

Rolling method

Continuous rolling method with gaps and pre pressure

Performance indicators of the winding and unwinding machine:

Pole parameters: The cylinder core is φ 76 mm, maximum straight diameter for unwinding φ 200 mm

Maximum width of pole piece 180 mm

Weight

150KG
