Battery Electrode Hydraulic Roller Press Machine With Automatic Unloading

Product Name: Rolling Press Machine

Brand Name: Aooser

Orgin:China

Description: The hydraulic balanced electric roller machine is specifically engineered to achieve high-precision rolling of positive and negative plates for the battery industry.

EMAIL

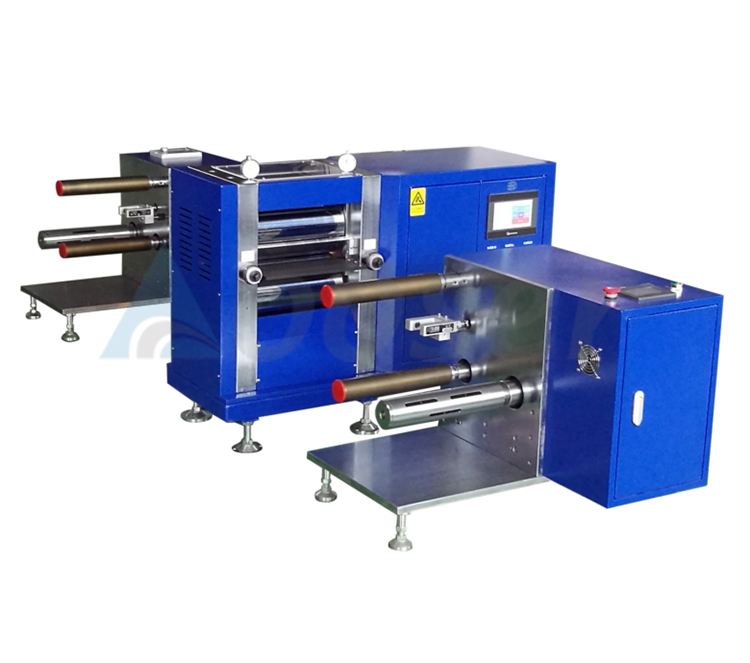

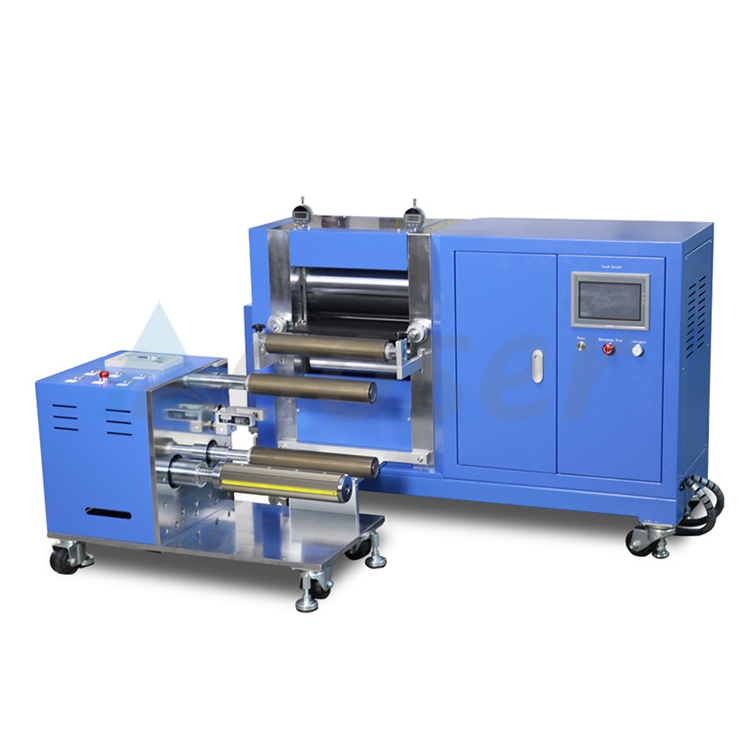

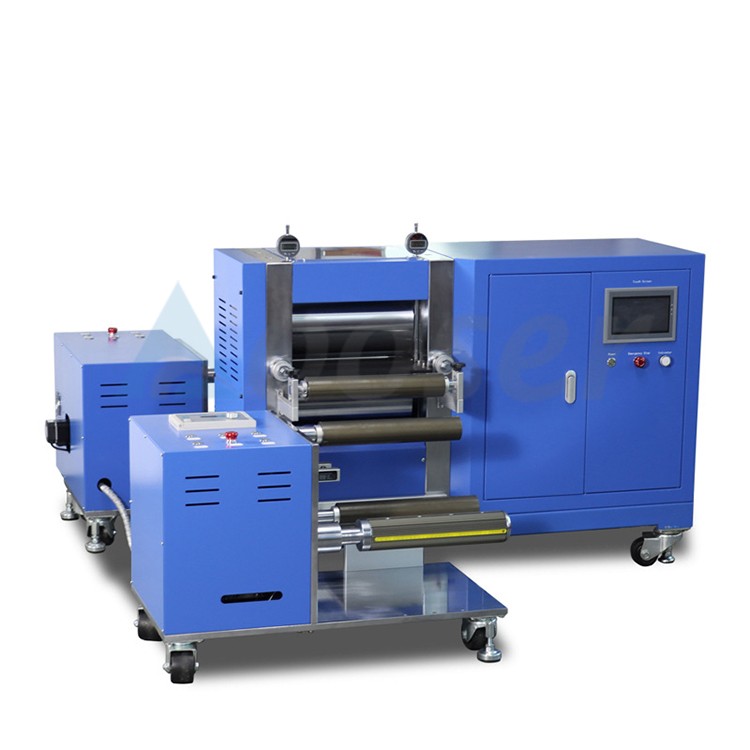

Lithium Battery Lab Hydraulic Roll to Roll Roller Press Machine with Automatic Unloading

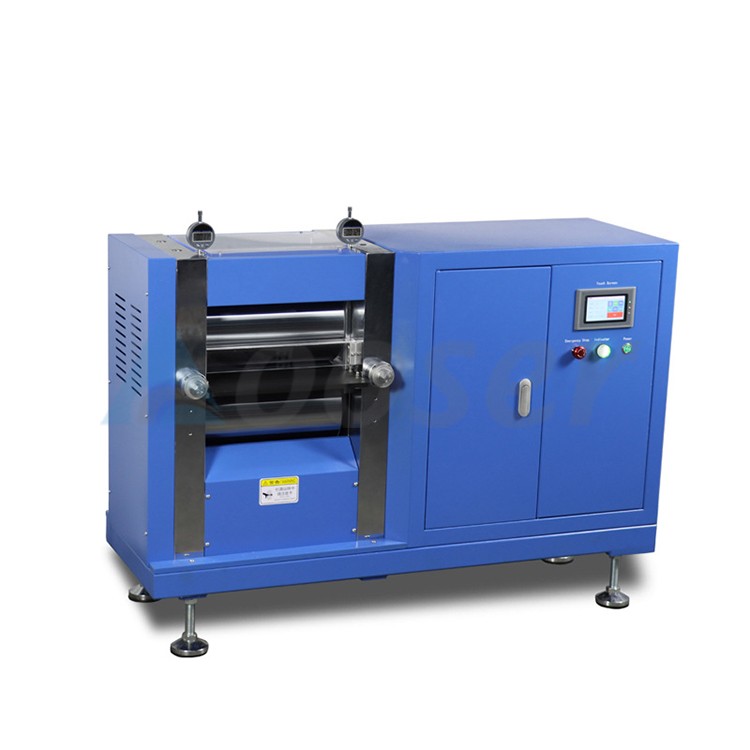

The hydraulic balanced electric roller machine is designed for high-precision rolling of positive and negative plates in the battery industry. The equipment has good horizontal and vertical uniformity in rolling, and the appearance of the rolled products is high-quality. The equipment is supplied with pressure by the hydraulic system for roller rolling, suitable for situations where high requirements are placed on rolling force and consistency of rolling gaps.

1. Rolling purpose: Rolling battery materials coated on the surface of aluminum or copper foil

2. The widest opening thickness of the rolling mill: 2mm

3. Rolling width: max 300mm

4.Rolling mill motor: AC variable frequency motor

5.With tension control function

6.Winding and unwinding with deviation correction function

Equipment technical parameters:

Product Name

Hydraulic Roll to roll press

Voltage

380V 3KW

Rolling force

Max. 25T

Mechanical speed

Max.6m/min

Roll diameter

Ф200 mm

Material

9Cr3Mo

Roll surface hardness

>HRC65

Roll surface width

330 mm

Pressing type

 hydraulic

Precision

±2.5 um

The widest opening of the rolling mill

2 mm

Reducer and gear box

combination type

Rolling mill motor

 AC variable frequency motor
