Product Name: Vacuum Mixing Machine
Max Rotational speed: 310 rpm
Mixing Jars: 304 stainless steel 150ml and 500ml
Dimensions: 33cmL*31cmW*56cmH
Weight: About 27kg
Vacuum Mixer Mixing Machine for Making Battery Electrode Paste
Description:

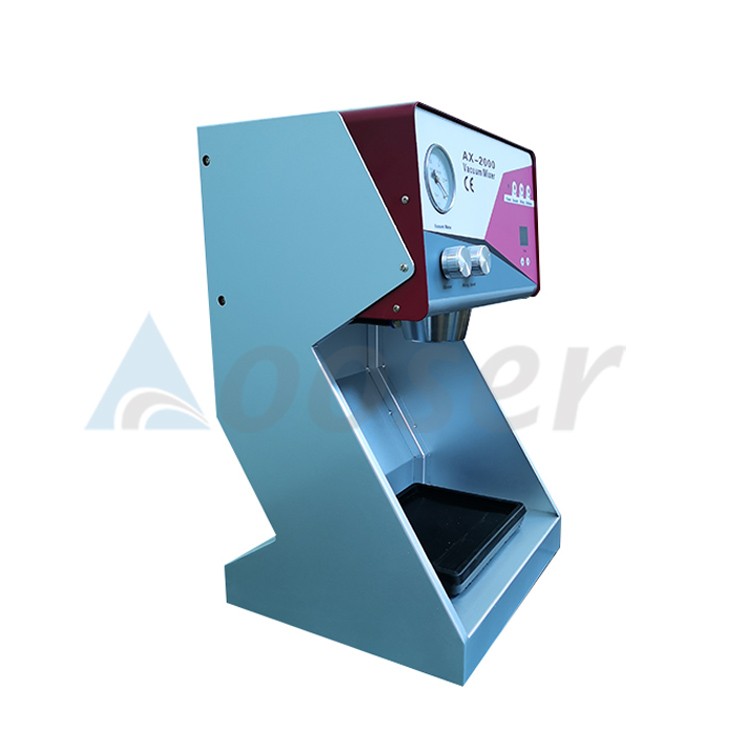

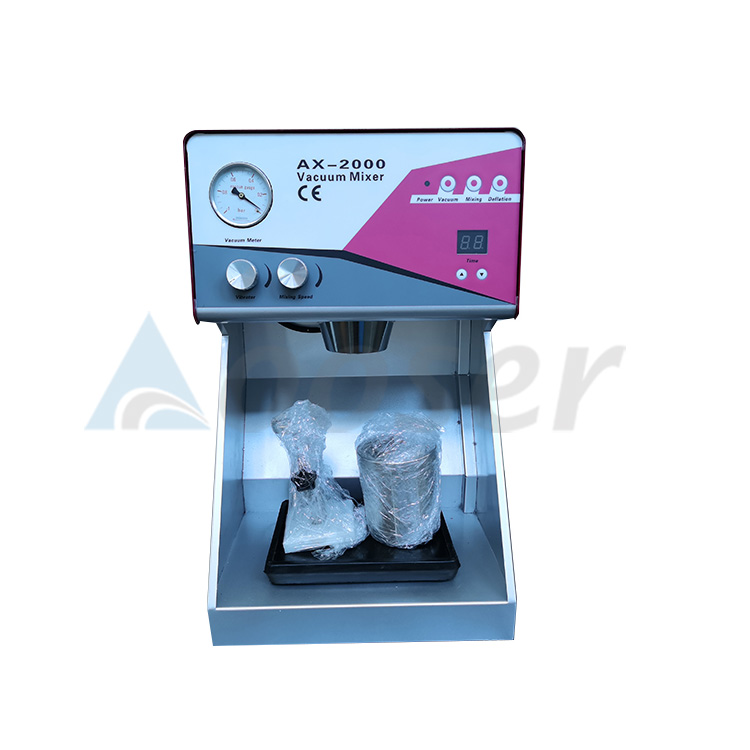

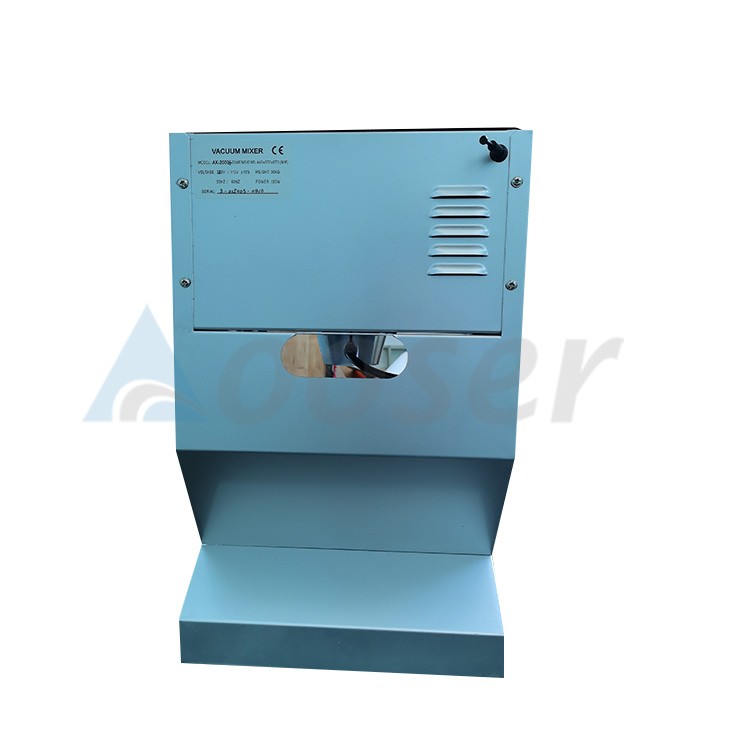

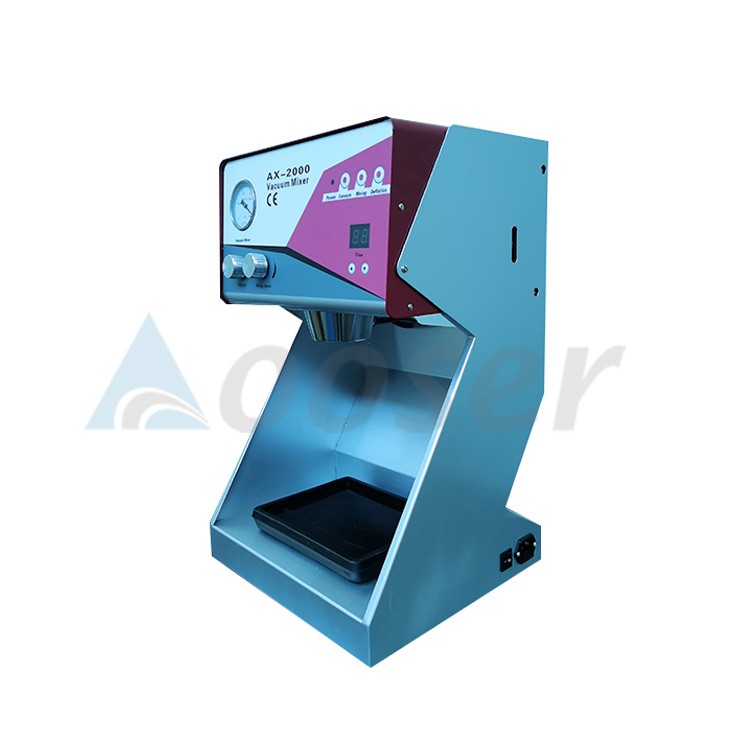

AS-AX-2000 vacuum mixer machine is designed to produce coating slurry by mixing the small batch of chemicals and compound under vacuum to remove gas bubble and protect the sample from oxidation.
This battery slurry mixer has a built-in pump that can vacuum the mixing container to -0.08Mpa and the step-less mixing speed around 300rpm. The vibration plate is located at the bottom to remove the gas bubble before vacuum mixing and disperse the slurry after mixing. It is excellent for preparing battery electrode paste and various ceramic materials in a material research lab. It is compact so that you can put in a glovebox with N2 gas (No Ar).
Specifications:
|
Power supply voltage |
AC 220V / 110V 50HZ / 60HZ ±10% |
|
Power |
150W |
|
MaxRotational speed |
310 rpm |
|
Mixing Jars |
304 stainless steel 150ml and500ml |
|
Vacuum Level |
-0.08~0.09 MPa |
|
Vacuum pump |
Built in single stage vacuum pump |
|
Mixing Time |
0~99 Minutes Adjustable |
|
Option |
30mL SS container is available at extra cost |
|
Dimensions |
33cmL*31cmW*56cmH |
|
Weight |
About 27kg |
|
Warranty |
One year limited with lifetime support |
|
Compliance |
CE only |
