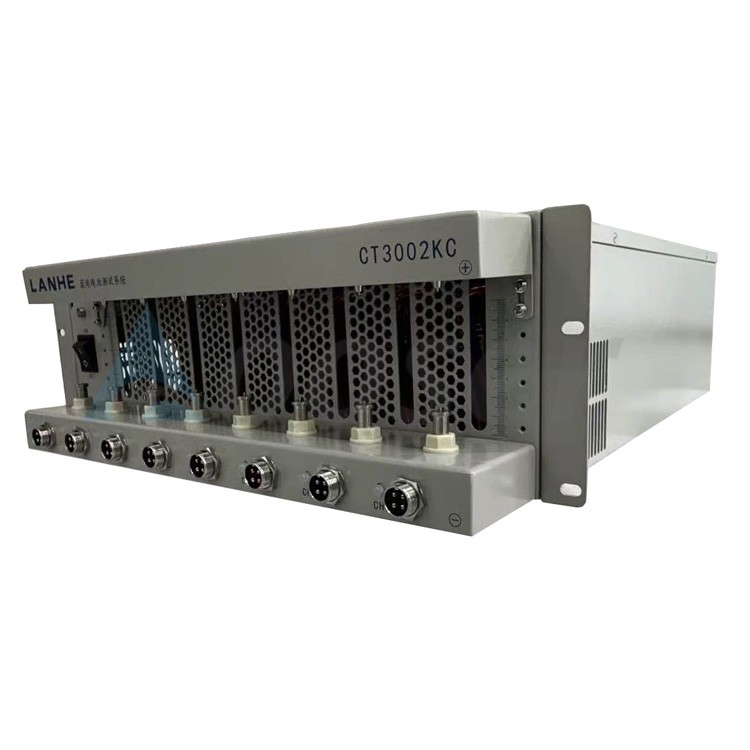

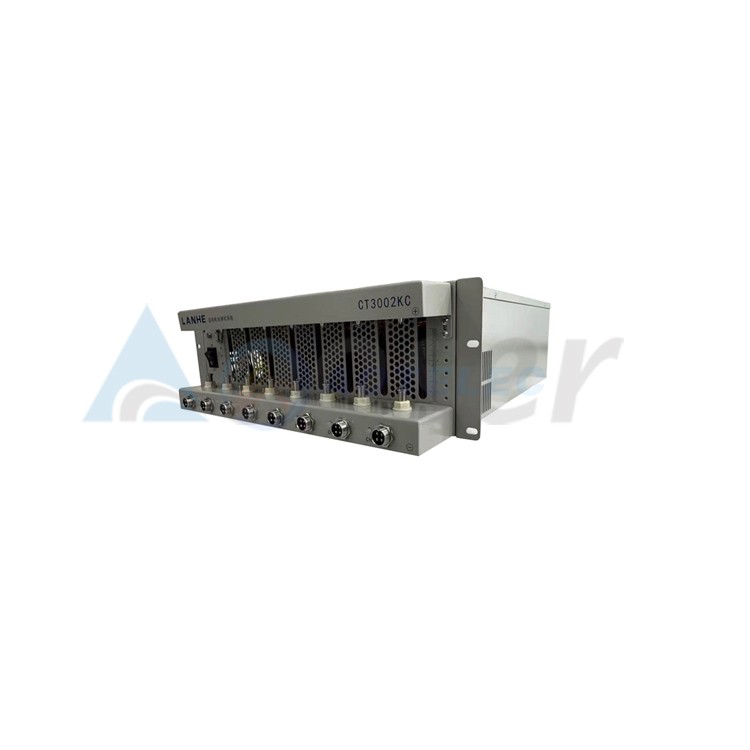

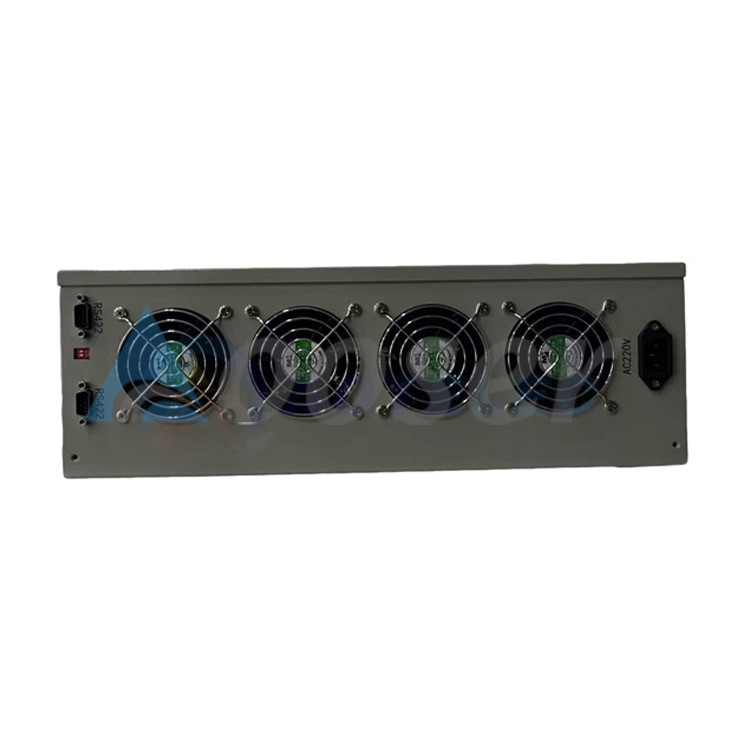

This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery.
This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery.
Items
Indicators
Input Power Source
AC 220V±10%/50HZ (AC 110V customizable)
Max. Input Power
600W
Resolution
AD: 16bit; DA: 12bit
Input Impedence
≥1MΩ
Voltage
Test Range
Charge: 0V-5V; Discharge: 0V-5V
Min. discharge voltage
0V
Measurement Accuracy
0.05%FS
Current
Test Range
2mA-8A
Error
≤0.5mA
Measurement Accuracy
0.05%FS
Output Power of Each Channel
40W
Time
Current Response Time
10mS
Step Interval
20mS
Available Setup
≤365*24 Hours/Step
Time Format 00:00:00 (h, min, s)
Data Record
Conditions
△t: 20mS-7200S
△U: 2mV-5V
△I: 2uA-2000A
Frequency
10Hz
Charge
Model
HOLD, CC, CV, CP, DCIR, CRATE
Constraints
Voltage, Current, Time, Capacitance etc almost 20 kinds
Discharge
Model
HOLD, DC, DP, DR, DRATE
Constraints
Voltage, Current, Time, Capacitance etc almost 20 kinds
Cycle
Times
1-65000
Max. Steps/Cycle
1100
Max. Nesting Layers
3
Protection Mechanism
Power outage, Anti-reverse connection
company profile

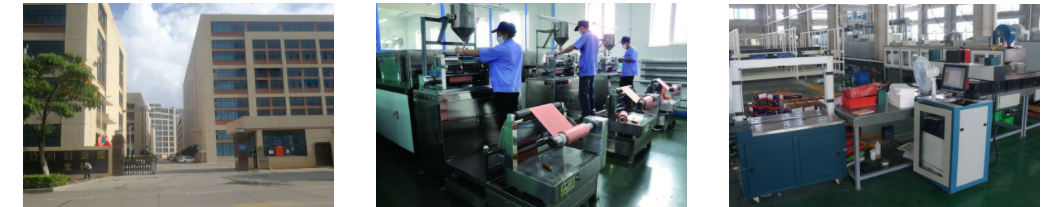

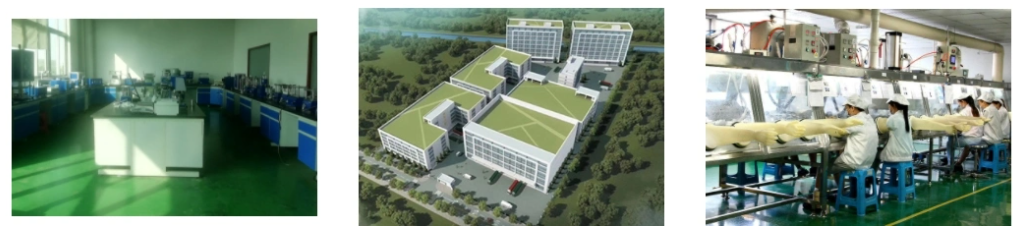

Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
