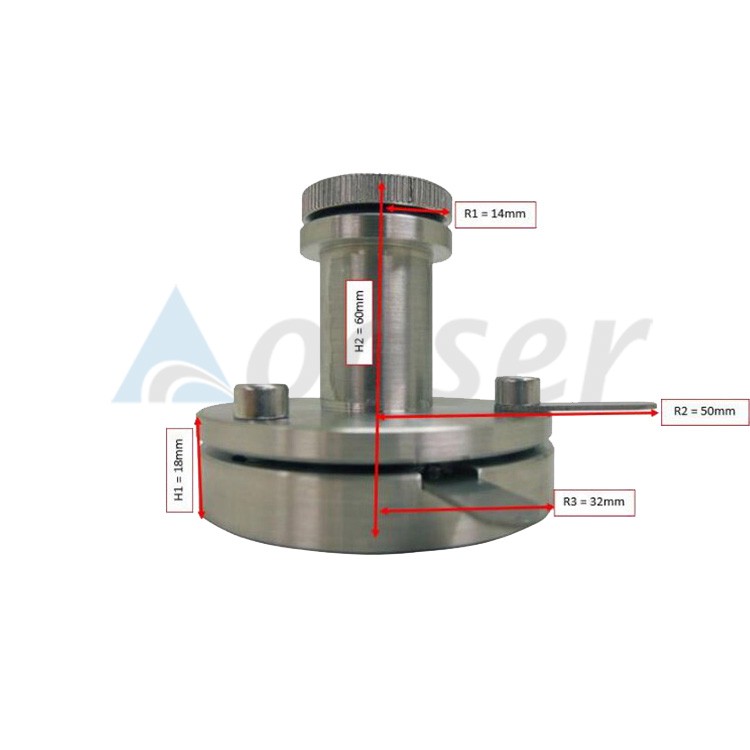

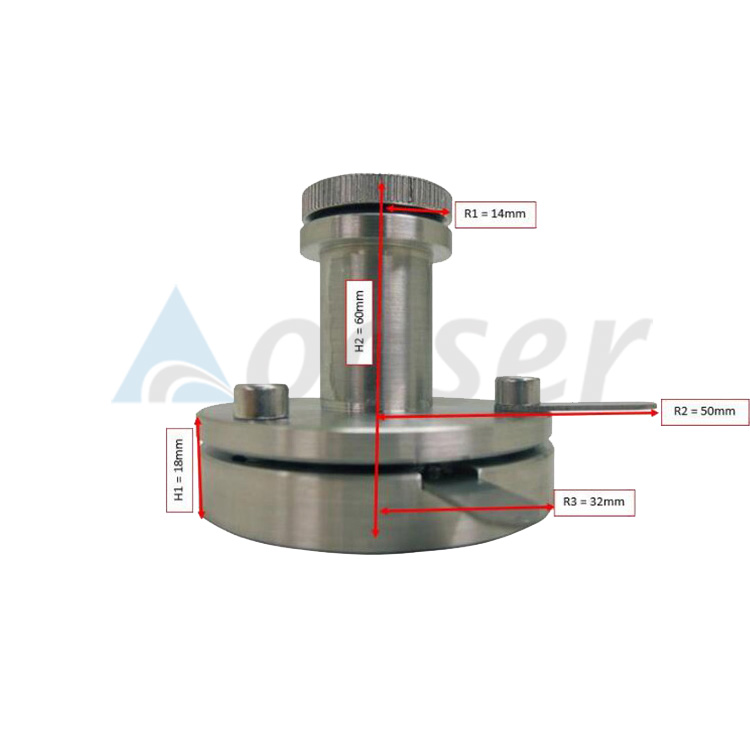

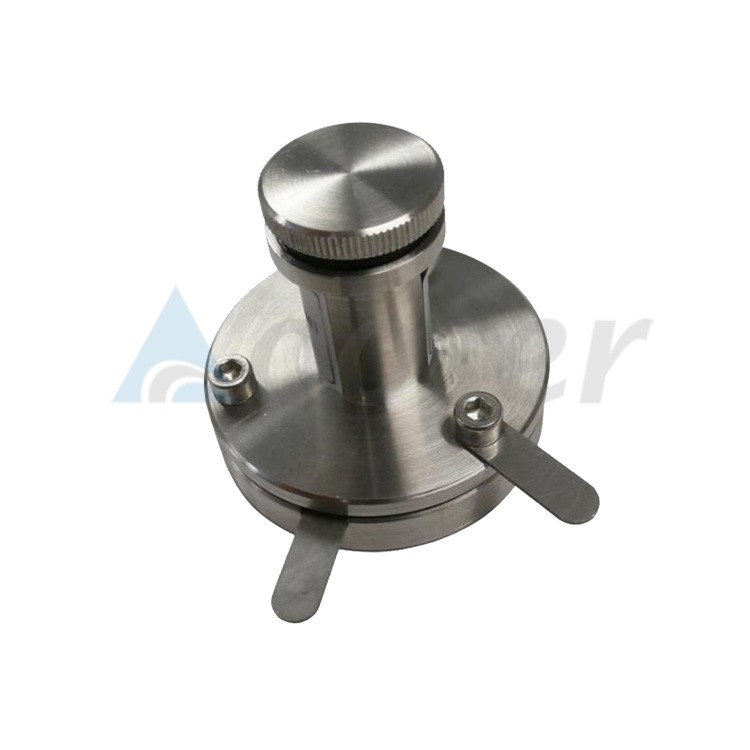

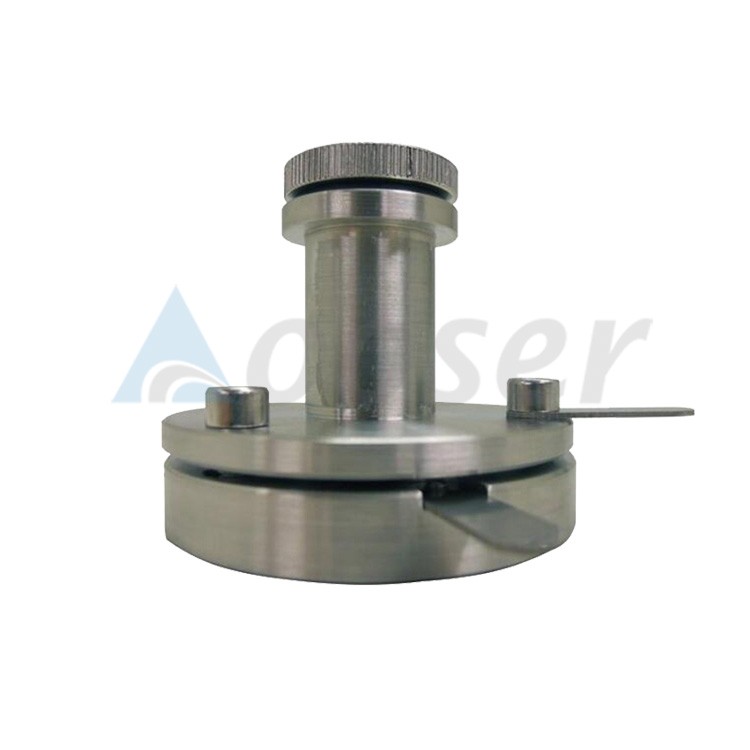

Battery Lab Compact Two Electrode Split Cell Test For Coin Cell Battery Research

Structure

Full stainless steel

Max. Cell Thickness

6mm (cathode+separator+anode)

Features

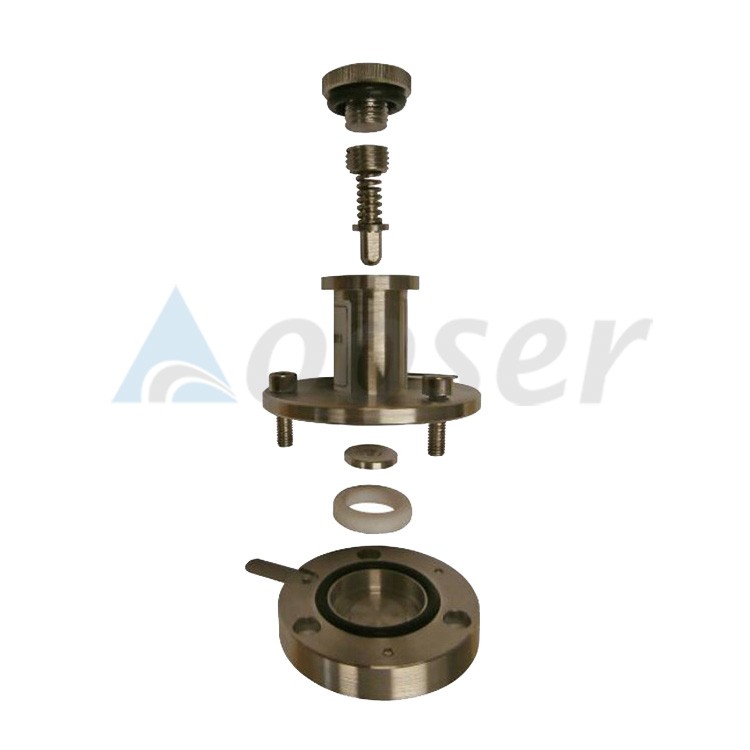

1.A 6mm height spacer inside the test cell to press down on the electrode and prevent the electrode from curling

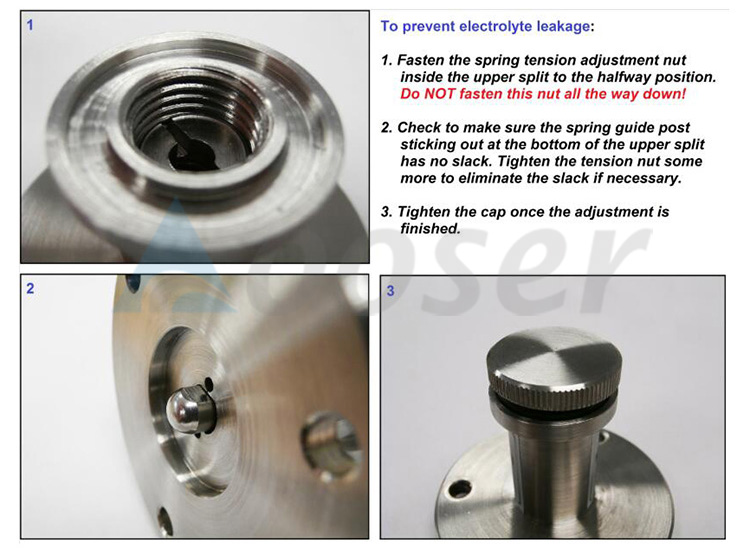

2.Sealed by electrolyte corrosive-proof PTFE O-rings

3.Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 200 ºC

4.Easy to separate after testing

5.Small enough to be put in and taken out from a glove box

6.Same functionality to "Swagelok Coin Cell" but with more size options for electrode and separator and also the proper dimensions for glove box compatibility

Max. Working

Temperature

200 ºC ( continuous )

280ºC ( for < 1 minute )

Optional

Please select the insert size in the Product Options. 19, 20, and 24 mm diameter inserts are available.
