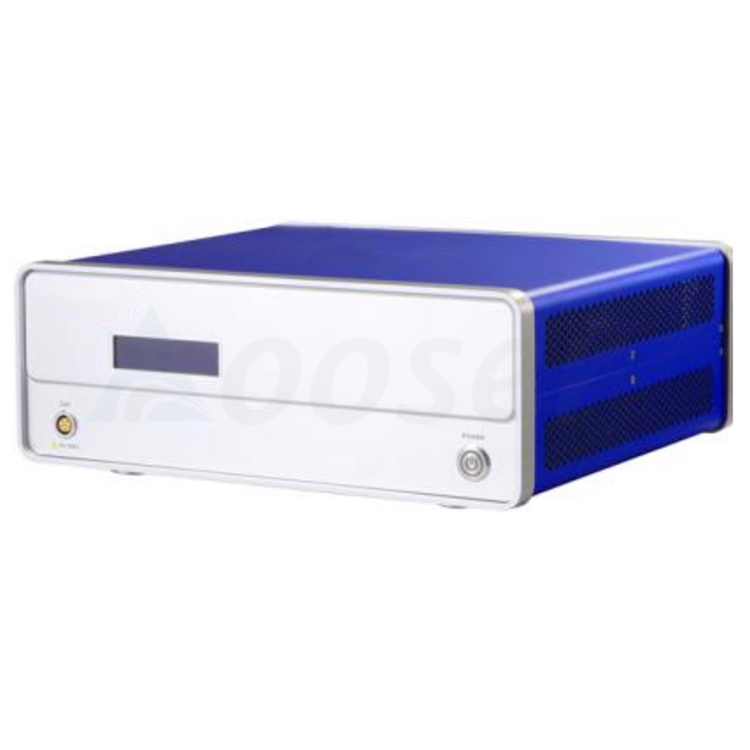

Product name: Electrochemical workstation

Model: CS350M, CS310M, CS300M

EMAIL

CS Series Single Channel Electrochemical Workstation for Lab Research


Instrument configuration:

Serial number

Item

Specification/Model

Quantity

Remarks

1

Electrochemical workstation host

CS350M、CS310M、CS300M

1 Set

Standard

2

Special software for testing and analysis

CorrTest

1 Set

3

Power cable/USB cable

--

1 Each

4

Electrode cable

--

1 Piece

5

Simulated cell

(Instrument self-test device)

--

1 Piece

6

Regular office computer

--

1 Set

Option


Technical parameter:


1. Hardware parameters

2,3,4 electrode system

Constant potential control range: ±10V

Constant current control range: ±2.0A

Potential control accuracy: 0.1% x full scale reading ±1mV

Current control accuracy: 0.1% x full scale reading

Potential resolution: 10μV (> 100Hz), 3μV (< 10Hz)

Current sensitivity: < 1pA

Potential rise time: < 1μS (< 10mA), < 10μS (< 2A)

Reference electrode input impedance: 10^12Ω | | 20pF

Current range: 2A ~ 2nA, a total of 10 stops

Tank pressure: ±21V

Maximum output current: 2.0A

CV and LSV scanning speed: 0.001mV ~ 10000V/s

CA and CC pulse width: 0.0001 ~ 65000s

Current scanning increment: 1mA@1A/mS

Potential increment during potential scanning: 0.076mV @1V/mS

SWV frequency: 0.001 ~ 100KHz

DPV and NPV pulse width: 0.0001 ~ 1000s

AD data acquisition: 16bit@1MHz, 20bit@1KHz

DA resolution: 16bit, setup time: 1μS

The minimum potential increment of CV: 0.075mV

Low-pass filter: 8 segments programmable

Current and potential range: automatic setting

Interface Communication mode: Network port


2. Electrochemical impedance function index

Signal generator:

Frequency response: 10μHz ~ 1MHz

Frequency accuracy: 0.005%

Ac signal amplitude: 1mV ~ 2500mV

Signal resolution: 0.1mV RMS

Dc bias: -10 ~ +10V

DDS output impedance: 50Ω

Waveform: sine wave, triangular wave, square wave

Sine wave distortion: < 1%

Scanning mode: logarithm/linear, increase/decrease


Signal analyzer:

Minimum integration time: 10mS or the maximum time of a cycle

Maximum integration time: 10^6 cycles or 10^5S

Measurement time delay: 0 ~ 10^5 seconds


Dc offset compensation:

Automatic potential compensation range: -10V ~ +10V

Current compensation range: -1A ~ +1A

Bandwidth Adjustment (Bandwidth) : Automatic or manual Settings, a total of 8 adjustable levels


3. Main functions of CorrTest measurement and control software


Steady state polarization: Open circuit Potential measurement (OCP), constant potential polarization (I-t curve), constant current polarization, Dynamic potential scanning (TAFEL curve), dynamic current scanning (DGP), potential scanning - step



Transient polarization: Arbitrary constant potential step wave, arbitrary constant current step wave, constant potential step, constant current step



Timing analysis: Chronopotentiometry (CP), Chronogalvanometry (CA), Chronocoulometry (CC)



Voltammetry analysis: Linear sweep voltammetry (LSV), linear cyclic voltammetry (CV), step cyclic voltammetry (SCV), square wave voltammetry (SWV), Differential pulse voltammetry (DPV), conventional pulse voltammetry (NPV), conventional differential pulse Voltammetry (DNPV) #, differential pulse current detection (DPA), double differential pulse current detection Method (DDPA), three-pulse Current Detection method (TPA), Integrated Pulse Current detection method (IPAD), AC voltammetry (ACV) ", second harmonic AC voltammetry (SHACV), Fourier transform AC voltammetry (FTACV) [numbered methods include the corresponding dissolution voltammetry analysis method]


Ac impedance: Electrochemical impedance (EIS) ~ frequency scanning, electrochemical impedance (EIS) ~ time scanning, electrochemical impedance (EIS) ~ potential scanning (Mott-Schottky curve), constant current impedance testing

Battery test: Battery charging and discharging test, constant current charging and discharging, constant current intermittent titration GITT, constant potential intermittent titration PITT


Extended measurement: Electrochemical noise (EN), galvanic corrosion measurement (ZRA), electrochemical dissolution/deposition, Controlled potential electrolysis Coulometry (BE), solution resistance measurement, cyclic polarization curve


Functional approaches

CS300M

CS310M

CS350M


Steady-state polarization

Open circuit potential measurement (OCP)

·

·

·

Constant potential polarization (i-t curve)

·

·

·

Constant current polarization

·

·

·

Potentiodynamic scanning (TAFEL curve)

·

·

·

Dynamic current scanning (DGP)

·

·

·

Potential sweep - Step

·

·

·


Transient polarization

Arbitrary constant potential step wave

·

·

·

Arbitrary constant current step wave

·

·

·

Constant potential step (VSTEP)

·

·

·

Constant current step (ISTEP)

·

·

·

Timing analysis

Chronopotentiometry (CP)

·

·

·

Chronoamperometry (CA)

·

·

·

Chronoelectric Method (CC)

·

·

·

Voltammetric analysis

Linear sweep voltammetry (LSV) #

·

·

·

Linear cyclic voltammetry (CV)

·

·

·

Step cycle voltammetry (SCV) #

·

·

Square wave voltammetry (SWV) #

·

·

Differential pulse voltammetry (DPV) #

·

·

Conventional pulse voltammetry (NPV) #

·

·

Conventional differential pulse voltammetry (DNPV) #

·

·

Differential Pulse Current Detection (DPA)

·

·

Dual Differential Pulse Current Detection (DDPA)

·

·

Three-pulse Current Detection (TPA)

·

·

Integrated Pulse Current Detection (IPAD)

·

·

Ac voltammetry (ACV) #

·

·

Second harmonic AC voltamperes (SHACV)

·

·

Fourier transform alternating current voltammetry (FTACV)

·

·

Dissolution voltamperes

Potential stripping analysis (PSA)

·

·

Linear sweep stripping voltammetry (LSSV)

·

·

Stepped stripping voltammetry (SCSV)

·

·

Square wave stripping voltamere (SWSV)

·

·

Differential pulse stripping voltammetry (DPSV)

·

·

Conventional pulse stripping voltammetry (NPSV)

·

·

Differential conventional pulse stripping voltammetry (DNPSV)

·

·

Alternating-current impedance

Electrochemical impedance (EIS) ~ frequency scanning

·

·

Electrochemical impedance (EIS) ~ time scanning

·

·

Electrochemical negative reactance (EIS) ~ potential scanning

·

·

Constant current impedance test

·

·

Battery testing

Battery charging and discharging test

·

·

·

Constant current Charge and Discharge (GCD)

·

·

·

Potentiostatic intermittent titration technique (PITT)

·

·

·

Constant current Intermittent titration Technique (GITT)

·

·

·

Biconstant measurement

Hydrogen diffusion test (HDT)

·

·

·

Disk ring electrode test

·

·

·

Extended measurement

Electrochemical noise (EN)

·

·

·

Galvanic Corrosion Measurement (ZRA)

·

·

·

Controlled Potential Electrolysis Coulomb (BE)

·

·

·

Potentiodynamic reactivation (EPR)

·

·

·

Solution resistance measurement

·

·

·

Cyclic polarization curve (CPP)

·

·

·
