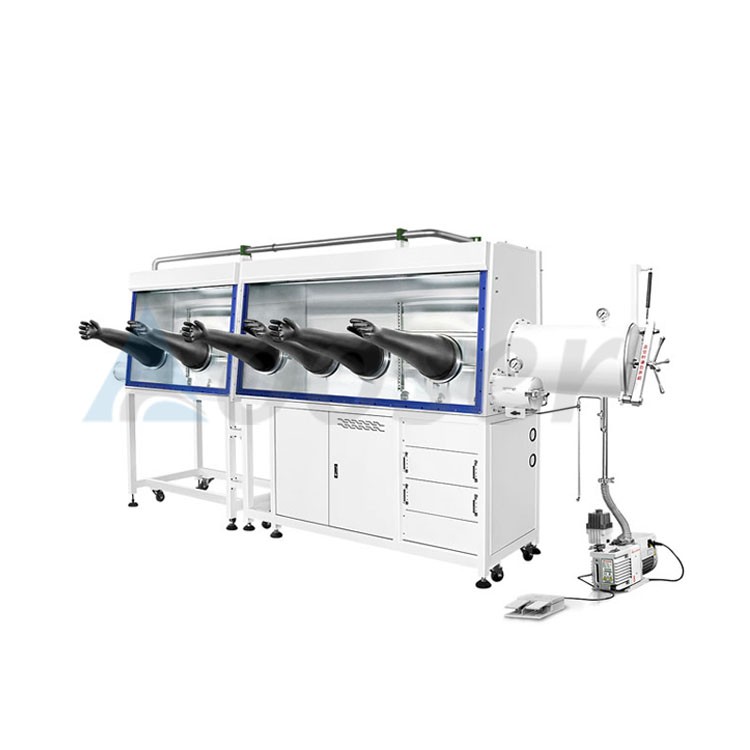

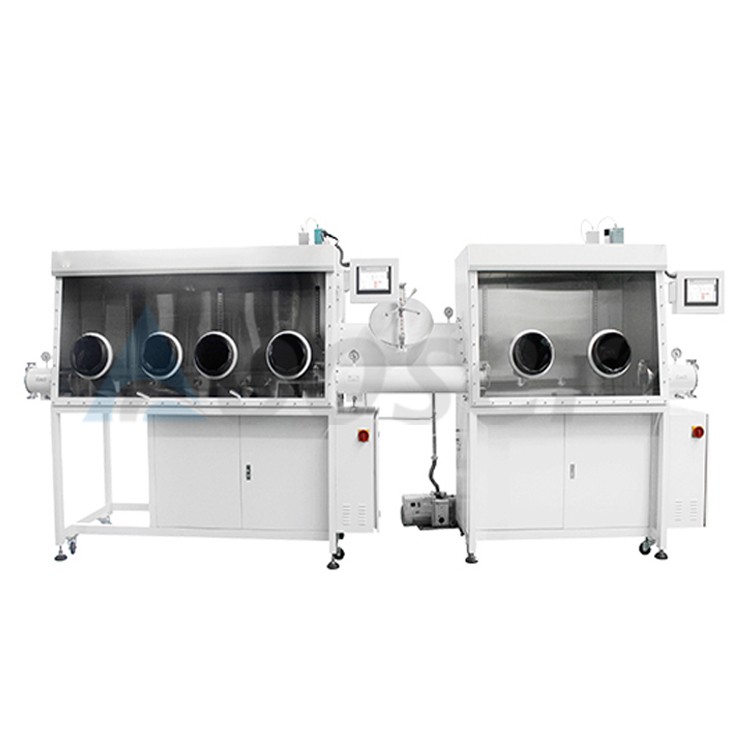

Three Working Stations Vacuum Glove Box with 6 Gloves for Lab Research

Glove Box

Box

Material: 304 stainless steel, thickness 3mm

Outer surface: 304 stainless steel

Inner surface: oil film drawing surface

Size: optional length 1500, 1800, 2440, 3660, 4880, 7320mm

         Optional depth of 750, 1000, 1200mm

         Height 900mm

Front window

Tilting window: transparent toughened safety glass, thickness 8mm

Glove mouth

Material is POM or aluminum alloy: O-ring seal

Gloves

Butyl rubber: thickness 0.4mm, diameter 7'' or 8''

Filter

Specification: 0.3μm, one gas inlet and one gas outlet

Shelf

Material: stainless steel, built-in 2 layers, height adjustable

Cabinet lighting

Location: LED light, installed in the lampshade

interface

Specification: DN40KF, several spare interfaces, 1 power interface (220V)

Purification unit

Purification column

Function: gas sealing, water removal and oxygen removal

Container material: 304 stainless steel

Purification materials: copper catalyst 5kg, molecular sieve 5kg

Purification capacity: 60L deoxygenation, 2kg dewatering

Water and oxygen index: <1ppm

Circulatory system

Working gas: nitrogen, argon, helium

Circulation capacity: integrated fan flow rate 90m3/h (larger fan flow rate 145m3/h, 180m3/h can be provided)

Regeneration

Operation: PLC automatically controls the regeneration process

Regeneration gas: mixed gas of working gas and hydrogen (hydrogen 5%-10%)

Vacuum pump

Specification: 8m³/h, 12m³/h

Rotary vane pump: with oil mist filter, air vibration control

Valve

Main valve: DN40KF, electric angle valve

Control valve: solenoid integrated valve

Transition warehouse

Large transition warehouse

Warehouse body

Size: diameter 360mm, length 600mm (optional diameter 400mm)

Material: 304 stainless steel

Surface: the inner surface is oil film drawing surface, the outer surface is spray paint or mirror surface

annex

Tray: sliding tray

Warehouse door: double doors, anodized aluminum material, vertical operation thickness of 10mm, with lifting structure

Pressure gauge: analog display

control

Operation: automatic control

Small transition warehouse

Warehouse body

Size: diameter 150mm, length 300mm (optional diameter 100mm)

Material: 304 stainless steel

Surface: the inner surface is oil film drawing surface, the outer surface is spray paint or mirror surface

annex

Warehouse door: double door

Pressure gauge: analog display

control

Operation: manual operation

Control System

Description

Display: Siemens PLC touch screen

Function: Including self-diagnosis, power-off and self-starting features, with pressure control and adaptive functions, automatic control, cycle control, password protection

Pressure control: control the pressure of the box and transition chamber, the working pressure of the box can be set freely within +/- 10mbar, and the system will automatically protect if it exceeds +/- 12mbar

Foot switch: the air pressure in the box can be adjusted by the foot switch

Data Memo: Automatically record system data

Accessories

Vacuum pump

Specifications: 8m³/h, 12m³/h, 16m³/h

Oxygen analyzer

Measuring range: 0～1000ppm

Dew point analyzer

Measuring range: 0～500ppm
