Model: AS-TVG-3
Origin: China
Material: 304 stainless steel

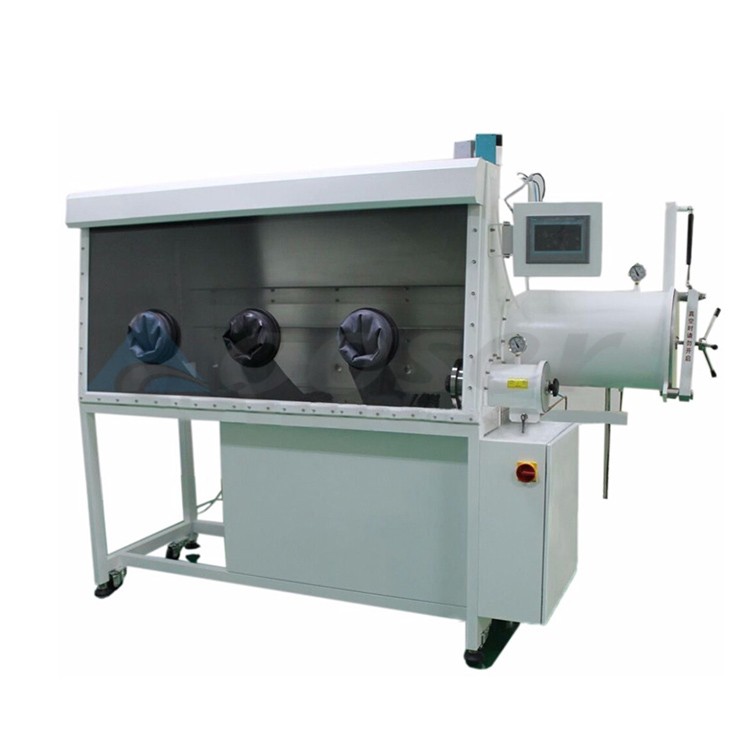

Description: The glove box device for laboratory is mainly composed of display system, transfer chamber, vacuum system, control system, box, circulation, purification and regeneration system and other components.
DESCRIPTION:
1 .AS-TVG-3 Laboratory glove box is a kind of equipment with anhydrous and anaerobic environment.
2 .The glove box device for laboratory is mainly composed of display system, transfer chamber, vacuum system, control system, box, circulation, purification and regeneration system.
SPECIFICATIONS:
|
Model |
Vacuum Glove Box AS-TVG-3 |
|
Source voltage |
AC110V-240V, Customized |
|
Warranty |
One Year limited warranty with lifetime support |
|
Type |
Single section single station |
|
Dimension(L*W*H) |
SUS304 stainless steel plate, 1500*800*930mm |
|
Total dimension(L*W*H) |
SUS304 stainless steel plate, 2215*830*1830mm |
|
Big transitive cabin |
SUS304 stainless steel, DN385*588mm |
|
Small transitive cabin |
SUS304 stainless steel, DN150*350mm |
|
Gloves |
3 pcs, butyl material, thickness : 0.4mm |
|
Gloves port |
DN215mm, Acid and alkali resistant material PPS |
|
Purification system |
Single purifying column, With the remove of water, oxygen function |
|
Control system |
6 inch color touch screen, SIEMENS |
|
Vacuum pump |
4L/S |
|
Pressure sensor |
-2500~2500Pa, Touch screen |
|
H2O concentration |
<1 ppm (20 °C, 1 atm) Touch screen |
|
Oxygen concentration |
<1 ppm (20 °C, 1 atm) Touch screen |
|
Organic solvent filter |
21 L |
|
Working gas |
N2,Ar,He |
Notes:
Cabinet water and oxygen content under the standard condition:
Water content≤1ppm, oxygen content≤1 ppm (Note: Standard condition is that an atmospheric pressure, constant temperature of 20 degree).
Leakage Rate:≤0.05Vol%/ h (subject to change value of oxygen content in box)
Used Gases
a) Working Gas: N2,Ar,He and etc.
b) Controlling Gas: Compressed air or Inert Gas.
C) Restoring Gas: Mixed gas of working gas and hydrogen.
Restoring gas is as same as working gas if there is only water removal system or oxygen removal system.
Remarks: All Single side boxes of 4 gloves are assembled glove box. Numbers of assembled box can be ordered as per customer’s needs. Quantity of purification columns is also designed to be matched according to customer’s requirements
