Model: AS-RP-300
Origin: China
Roller Dimensions:300mm(Dia.) x 350mm(W)
Rolling Speed: 0-120mm/s adjustable
Compliance:CE Certificate

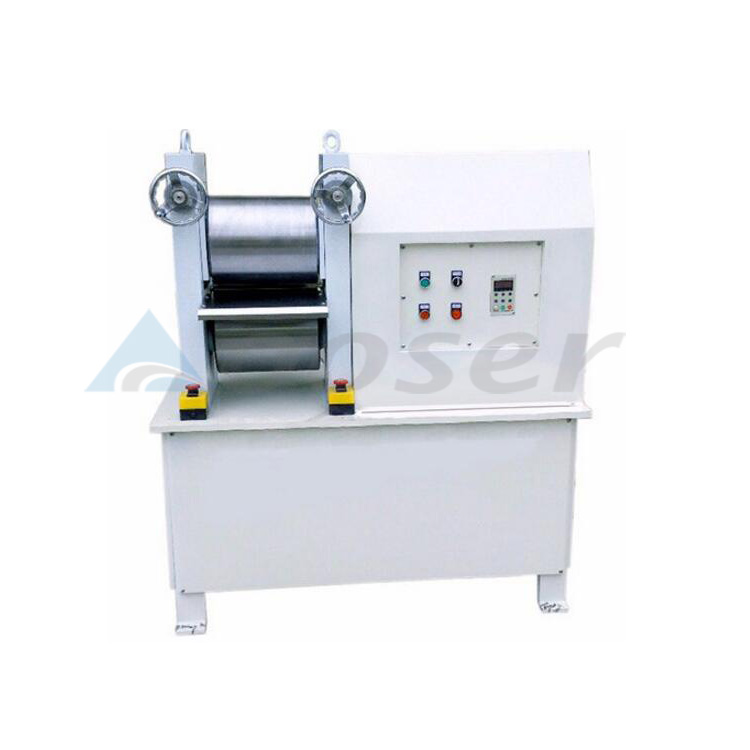

Laboratory 300mm Width Precision Rolling Press machine for Battery Electrode Calendering
Introduction:
AS-RP-300 is a electric rolling press with variable speed 24DC gear motor and UL certified switch power supply, which can be used from 110V- 220VAC. It has dual rollers and is an ideal rolling press for preparing electrode sheet for Li-Ion batteries research after coating and drying.
SPECIFICATIONS:
|
Roller Dimensions |
300mm(Dia.) x 350mm(W) |
|
Working Voltage |
110V - 240V AC, 50/60Hz, automatic switch for worldwide use |
|
Structure |
Heavy duty steel frame, gears, and handle
Dual micrometer for accurate thickness adjustment in the range 0 - 8 mm Maximum
|
|
Roller |
1. Roller diameter tolerance: 0.004mm
2. Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating
3. Rolling Speed: 0-120mm/s adjustable
|
|
Roller Surface Hardness |
62 HRC
Never roll materials with hardness > 50HRC
|
|
Compliance |
CE Certificate |
|
Warranty |
One Year limited warranty with lifetime support |
|
Warnings |
1. Never roll materials with hardness > 50HRC
2. In order to prolong the lifespan of the roller bearings, regular lubrication is recommended.
3. Multi-step thickness calibration: When calibrating the thickness, make increment/decrement of 0.1mm or 20% of sheet thickness each time.
4. Must clean roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion
5. This rolling machine can be used under Ar gas.
|
