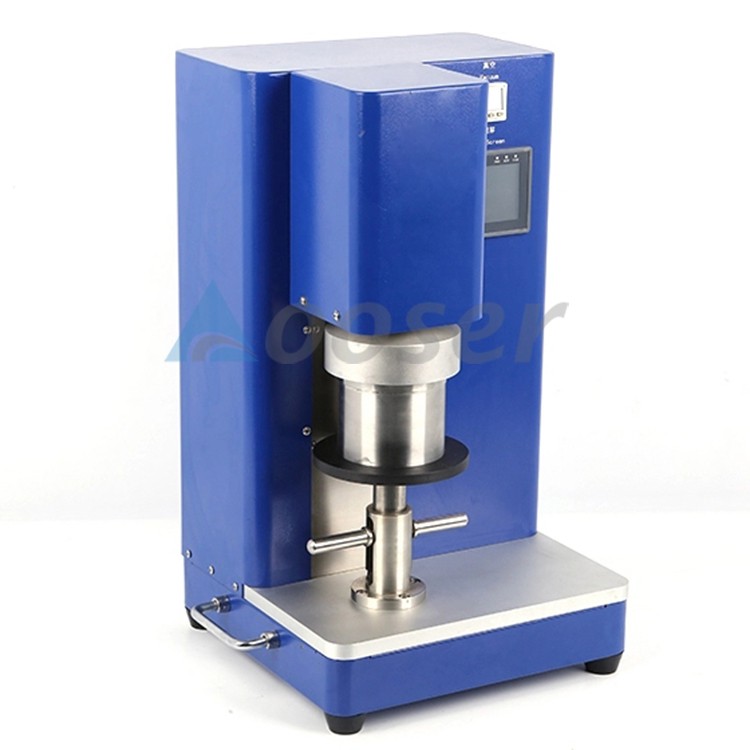

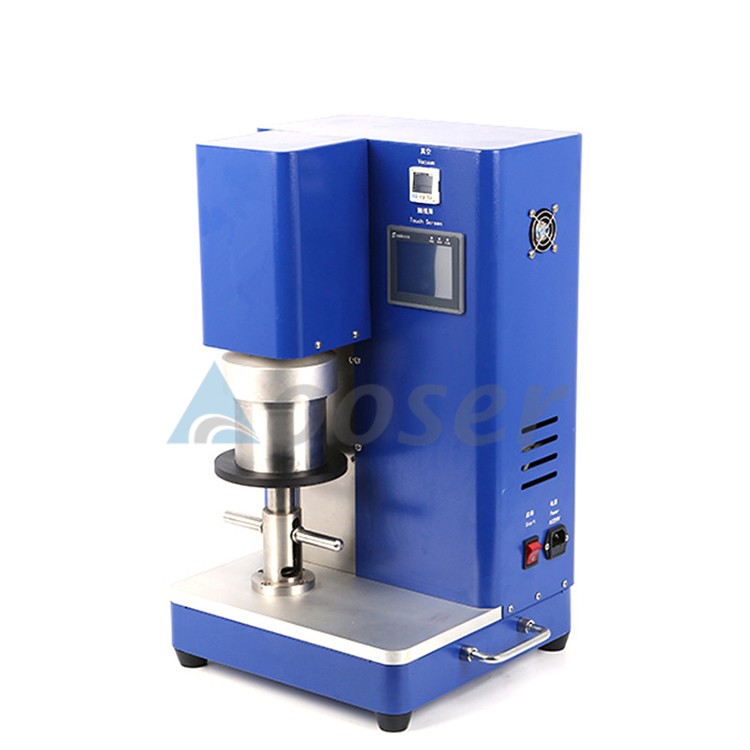

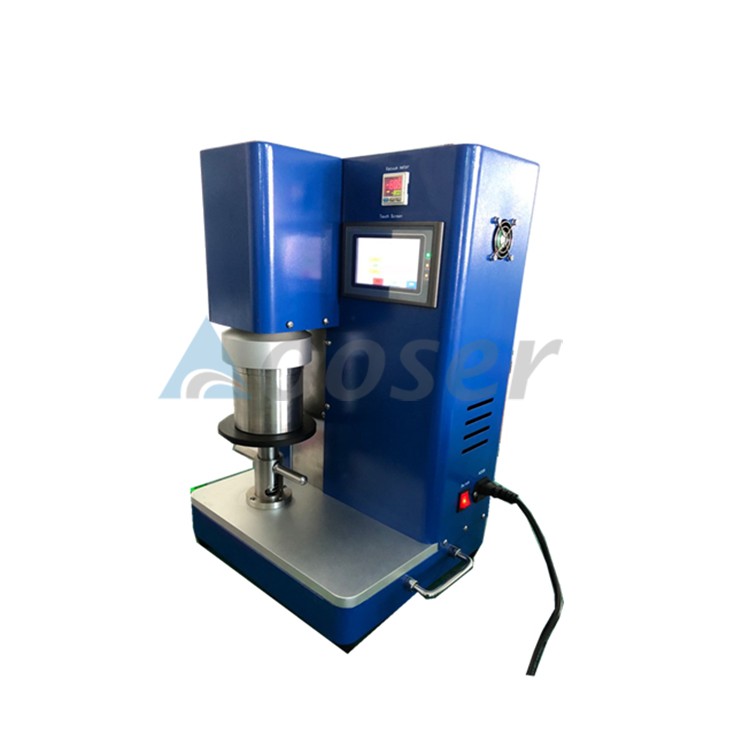

AS-XJB is a compact dual-shaft planetary vacuum mixer. Compared to single shaft models, the dual shaft mixer comes with three segments programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing gas bubble, which can vacuum the mixing container to -0.08 MPa. It is a high-quality mixer tool for preparing battery electrode paste and various ceramic materials in a research lab.
Compact Dual-Shaft Planetary Vacuum Mixer Mixing Machine with 250ml 500ml Container For Laboratory Research
AS-XJB is a compact dual-shaft planetary vacuum mixer. Compared to single shaft models, the dual shaft mixer comes with three segments programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing gas bubble, which can vacuum the mixing container to -0.08 MPa. It is a high-quality mixer tool for preparing battery electrode paste and various ceramic materials in a research lab.
Specifications:
|
Voltage Input & Power |
One listed 100-240 VAC IN |
|
Rotary Speed |
0 - 600 rpm |
|
Mixing Container |
1. One 500 mL stainless steel vacuum sealed container is included.
2. Dual helical ribbon mixing blades are built on the lid of the container.
|
|
Vacuum Pump |
Built-in single stage vacuum pump
Vacuum Level: -0.08 MPa
|
|
Contol Panel |
1. Color touch screen control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off
2. Mixing Time: 0 - 600 minute
3. Mixing Speed: 0 - 600 RPM and 3 segments programmable
4. Note: Max. mixing speed depends on slurry viscosity. Max.10000 mPa.s is allowed at 600 rpm. Lower speed will be required for more sticky slurry
|
|
Timing Range |
0 to 120 minutes for built-in mechanical timer |
|

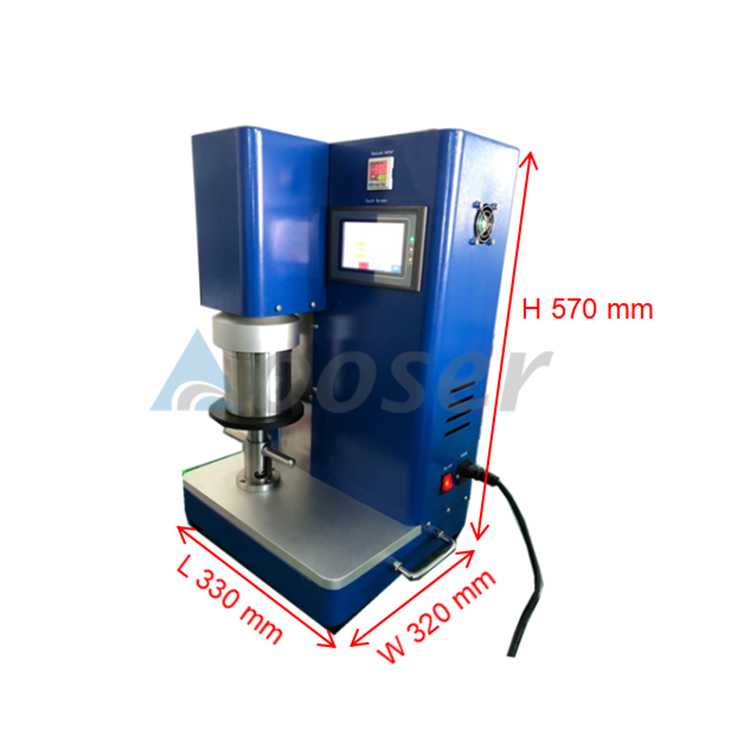

Dimensions |
330 mm x 320 mm × 570 mm |
|
Compliance |
CE Certified |
|
Warranty |
One years limited warranty with lifetime technical support |
|
Net Weight |
40 kg |
