1.Support breakpoint start, support automatic start and manual start mode conversion.
2.It has a false spot welding and out of spot welding alarm function.
3.Supports any point programming and array programming. 999 groups can be saved programming files.
4.Welding needle replacement forecast reminder.
5.Own welding current monitoring system, real-time monitoring of welding current.
Model: AS-DZD-10000E
Voltage: 220V 50Hz, 110V optional
Warranty: 1 Year with life time support

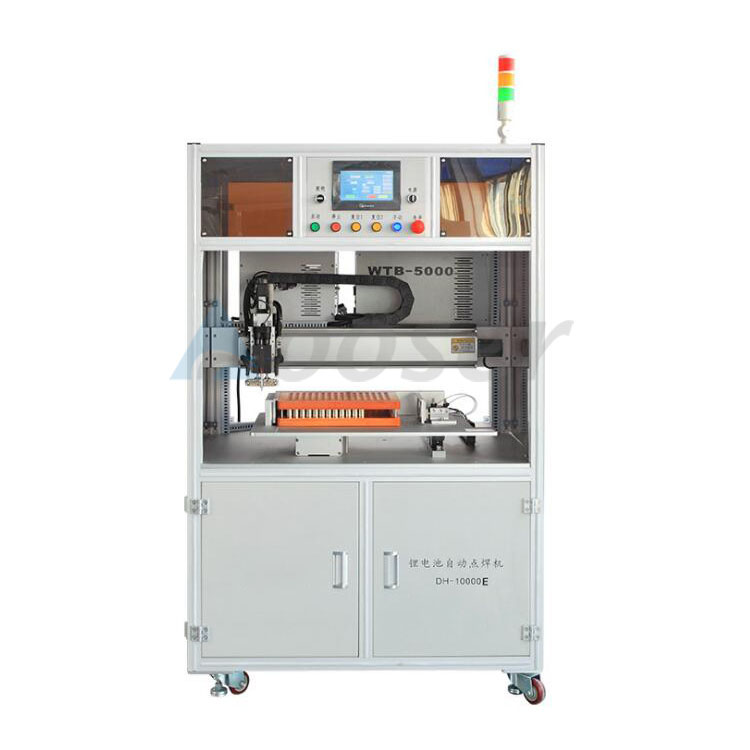

Automatic Spot Welder Welding Machine for Battery Pack Manufacturing

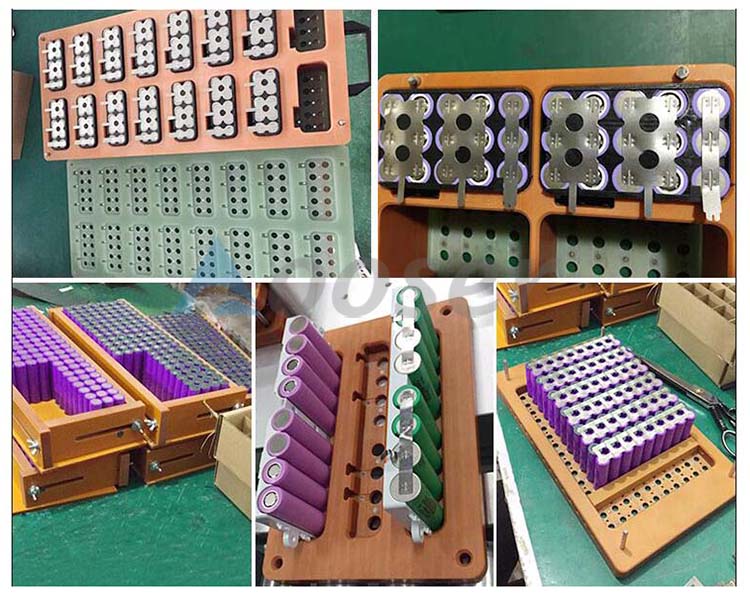

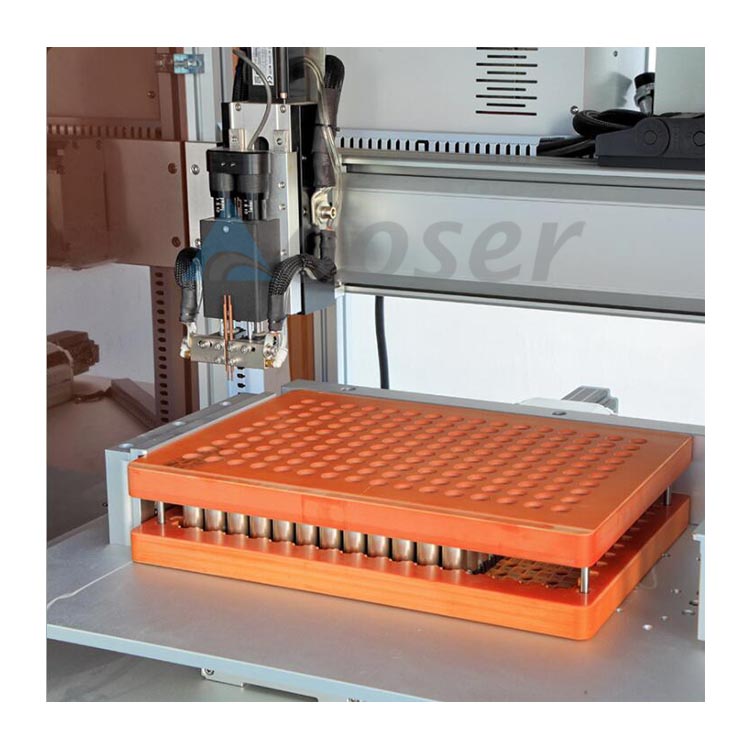

This machine can be used for 18650,21700, 26650,32650 cylinder battery pack single-side automatic spot welding.
Features :
1.Support breakpoint start, support automatic start and manual start mode conversion.
2.It has a false spot welding and out of spot welding alarm function.
3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4.Welding needle replacement forecast reminder.
5.Own welding current monitoring system, real-time monitoring of welding current.
Application:
Power Storage Battery
Power ModuleBattery
Electric ToolBattery
Photovoltaic Energy Storage Battery
Parameters:
|
Model |
Single-side Automatic Spot Welding Machine AS-DZD-1000E |
|
X-axis travel |
540mm (Customized) |
|
Y-axis travel |
380mm (Customized) |
|
Welding thickness |
0.12mm-0.3mm (Welding power optional) |
|
Spot welding speed |
0.7s / point; 1500pcs / h |
|
Welding head spring pressure range |
1.0-0.5kg |
|
Maximum speed of motor drive |
1000mm/s |
|
The maximum number of batteries loaded |
300pcs (standard 18650 lithium battery) |
|
Number of groups for storing files |
99 groups |
|
Operating system |
Embedded control system + man-machine interface |
|
Transmission |
Stepper + imported precision linear guide (optional servo + screw) |
|
Power supply |
Single-phase 220V±10% / 50Hz±10% |
|
Power |
<1000w |
|
Air supply |
0.3 ~ 0.4Mpa |
|
Application |
Storage Battery Pack, Electric Bicycle Battery; Power Battery Welding |
|
Weight |
200KG |
|
Dimensions |
About 1000mm*1000mm*1800mm |
