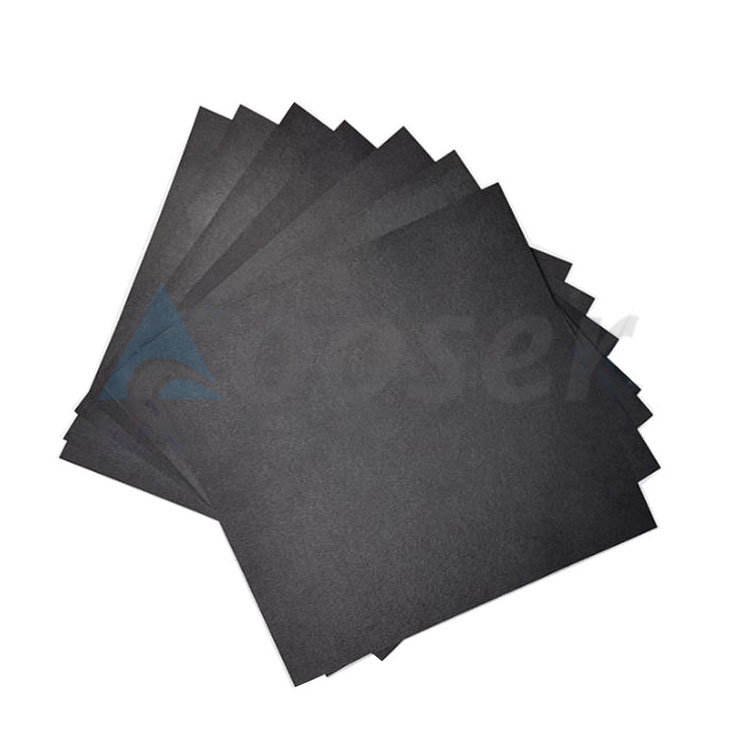

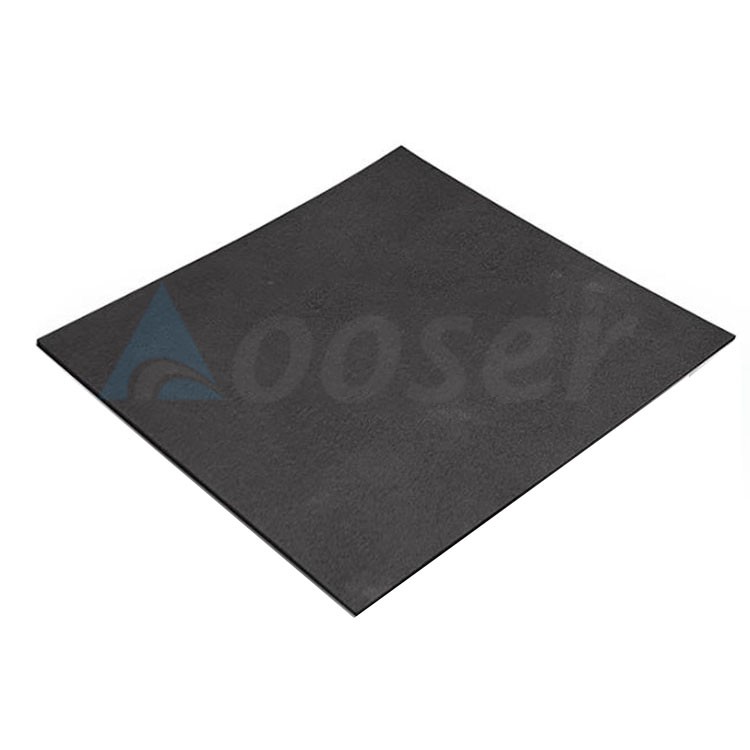

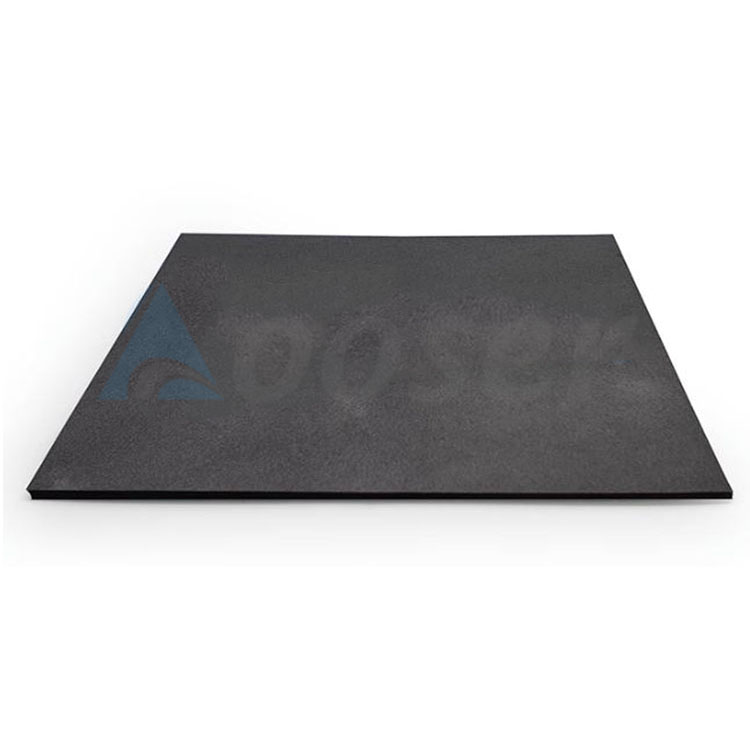

Battery Cathode Material Black Conductive Activated Carbon Paper for Lithium Battery

Battery Cathode Material Black Conductive Activated Carbon Paper for Lithium Battery

Name: Black Conductive Activated Carbon Paper

Abbreviation: Carbon Paper

Origin: China

Quality: High Standard

Battery Cathode Material Black Conductive Activated Carbon Paper for Lithium Battery

Description:

Black Conductive Activated Carbon Paper is a conductive and porous material made from activated carbon fibers.

Toray Paper- TGP-T-060 is a carbon fiber composite paper suitable for use as a catalyst backing layer for fuel cells,electrolyzers, batteries, and various other electrochemical devices after applying a microporous layer (MPL) onto it. The carbon paper susbtrate has a thickness of 190 um (microns) and the MPL has a thickness of 60 microns. This product has a total thickness of approximately 250 microns. Toray Paper 060 has a PTFE treatment of approx. 8-9% and the MPL has a PTFE content of approx. 33-35%. Toray Paper 060 with MPL is a great low-cost alternative to conventional woven carbon cloth Gas Diffusion Layer (GDL) materials. Toray Paper 060 has a standard PTFE wet proofing (which is 8-9%).

Specification:

Model		TGP-H-030	TGP-H060	TGP-H090	TGP-H-120
Thickness		0.11	019	0.28	0.37
Power resistance value(mΩcm)	Thickness direction	80	80	80	80
Power resistance value(mΩcm)	One-sided direction	-	5.8	5.6	4.7
Thermal conductivity WI(m·k)	Thickness direction (room temperature)	-	-1.7	-1.7	-1.7
	Single direction (room temperature)	-	21	21	21
	Single direction (100℃)	-	23	23	23
Gas permeability ml·mm/(cm·hr·mmA q)		2500	1900	1700	1500
Porosity (%)		80	78	78	78
High density (g/cm3)		0.4	0..44	0.44	0.44
Origin	China
Quality	High standard
