  • Hydraulic Roller Press Machine for Lithium ion Battery Electrode Calendering
  • Hydraulic Roller Press Machine for Lithium ion Battery Electrode Calendering
Hydraulic Roller Press Machine for Lithium ion Battery Electrode CalenderingHydraulic Roller Press Machine for Lithium ion Battery Electrode Calendering

Hydraulic Roller Press Machine for Lithium ion Battery Electrode Calendering

Model: AS-HM-300C

Rolling Width: 300mm

Calendering thickness: 0.01-3mm adjustable

Speed:1-3m/min

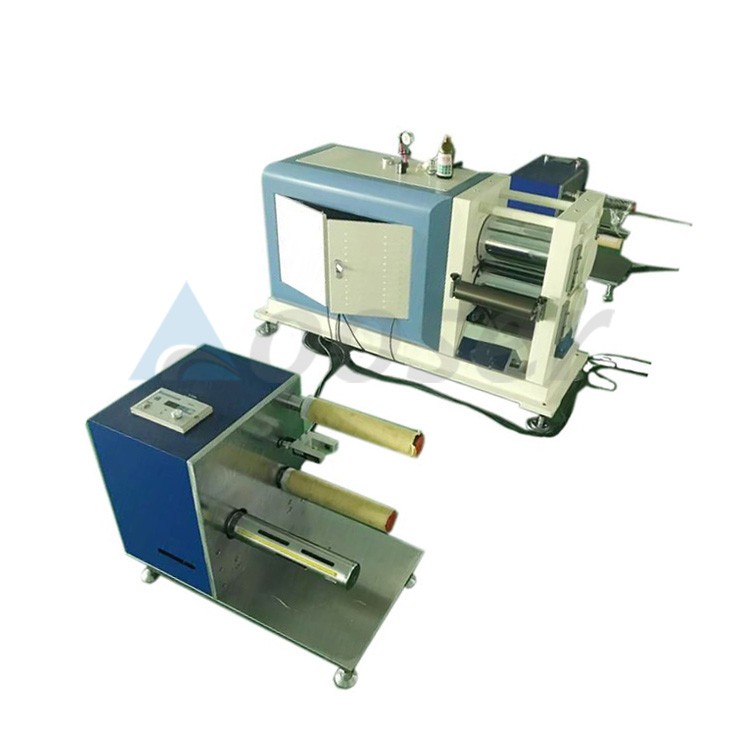

Description: It is with tension controlled feeding and winding devices with the electric rolling press machine, which can roll to roll continuous electrode calendering, suitable for battery electrode roll to roll calendering for pilot scale research work.

EMAIL

Hydraulic roller press Machine for Battery Electrode Calendering


Description:

1. AS-HM-300C Hydraulic Roll to Roll pressure controlled Calendering machine is an Automatic Battery Electrode Rolling Press System with precision digital pressure control. The pressure can be adjusted easily by touch screen. The biggest rolling press width is 300mm.

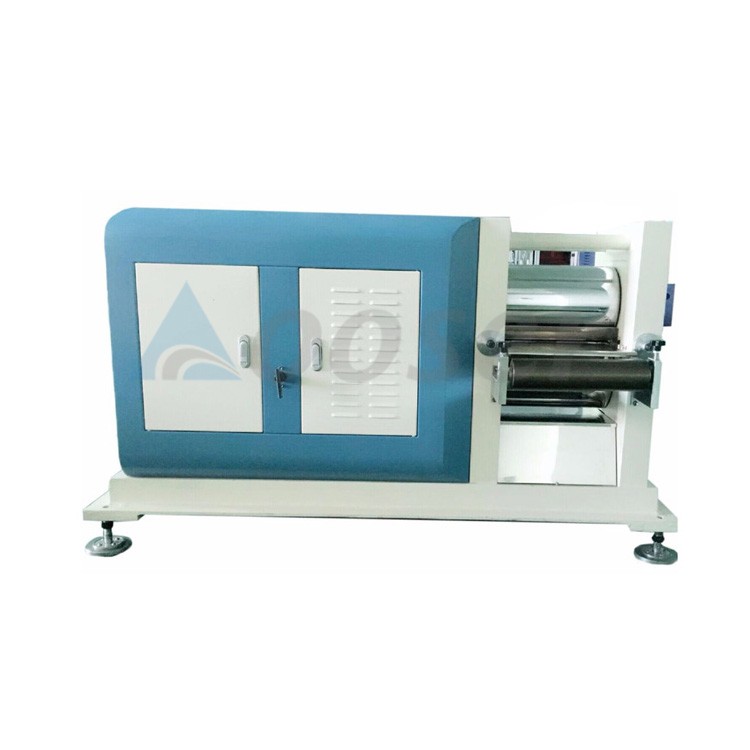

2. You can also just choose the hydraulic roller press machine without feeding and winding device ,and add heat function to this roller press machine with temperature up to 130℃.


Specification:

Model

Roll to Roll Pressure Adjusted Roller Press AS-HM-300C

Function

Calender battery electrode

Calender Thickness

0.01-3mm adjusted

Calender Width

Max 300mm

Calender Pressure

Max 20KN

Speed

1-3m/min

Working Roller

Diameter 210mm, 9Cr3Mo materials

Roller Width

300mm

Calendertype

Hydraulic press

Accuracy

0.003mm

Rolling Press Machine Power

1500W

Rolling Press Machine Size

About L1300mm*W600mm*H1300mm

Total Installation Dimension

About L3000mm*W1200mm*H1300mm

Power Supply

380V 4KW

Tension Control

Absolute value photoelectric encoder with floating guide roller

Electric control

With tension display, rolling speed display function

Electric motor revolution and connter revolution

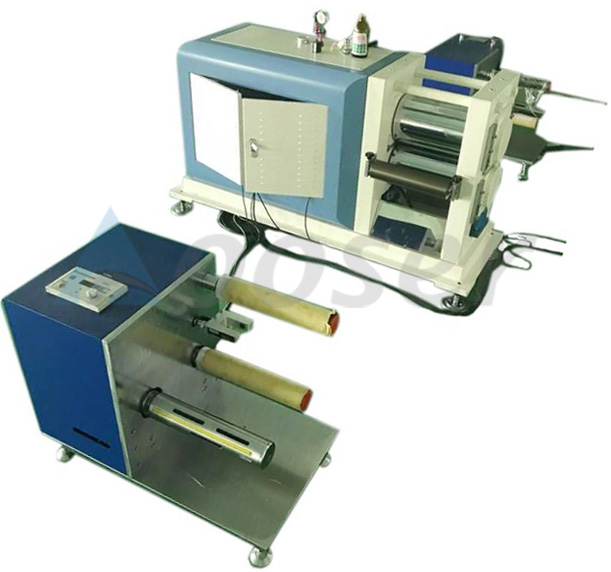

Hydraulic Roller Press Machine for Battery Electrode Calendering

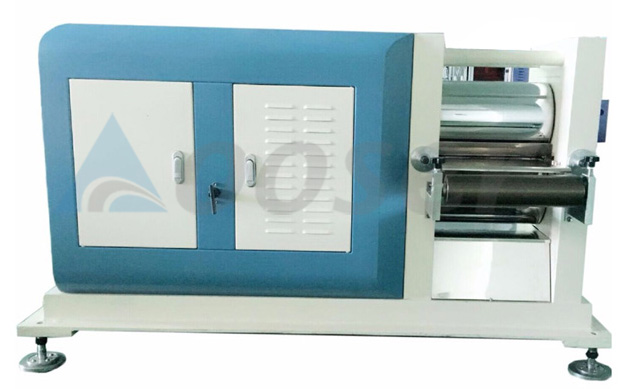

Battery Electrode Hydraulic Roller Press Machine
