LATP Solid State Electrolyte Powder for Battery Material

Product Name

LATP Powder

Product Quantity

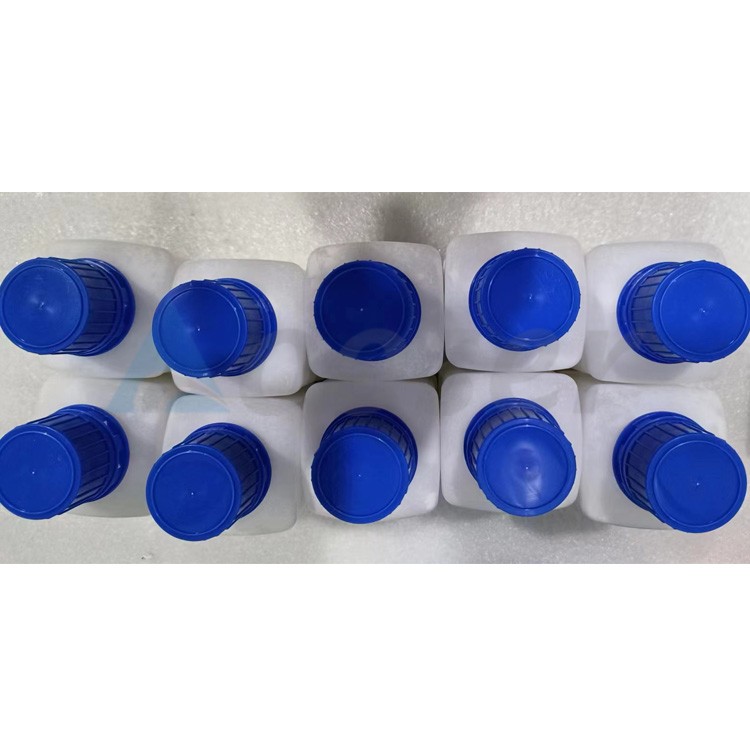

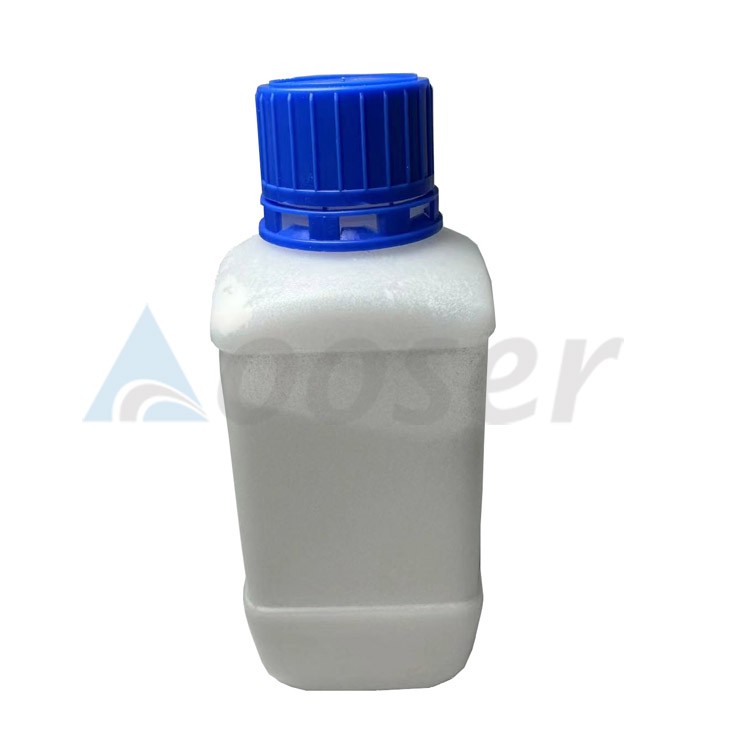

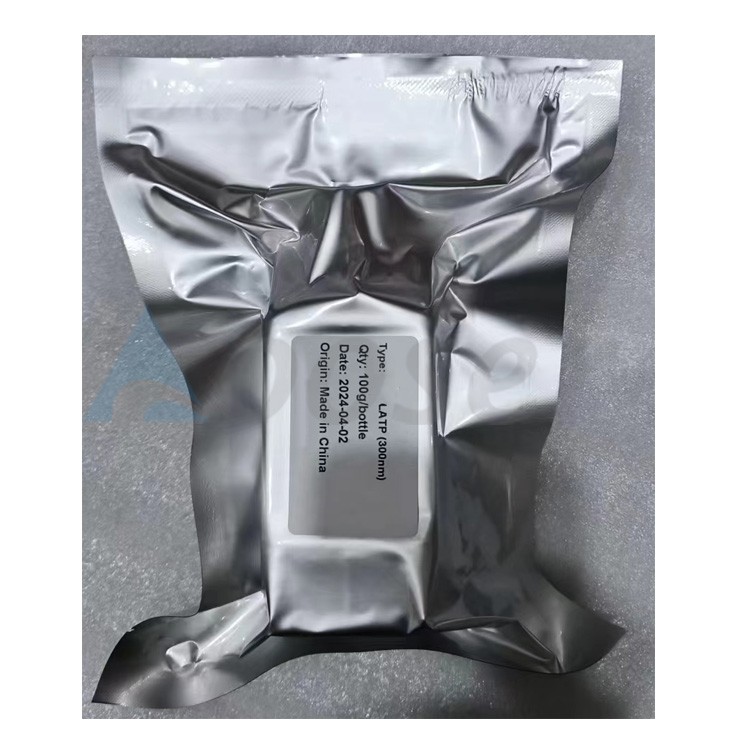

100 g/ bottle x 50 bottles

Lot Identification Mark

LATP-L123

Product Model

D50=0.3士0.05μm

Test item

Criterion of Acceptability

Detection Result

Remark

Chemical composition

Single phase structure, no obvious impurity diffraction peak

Rigaku MiniFlex600 instrument (Cu Ka radiation, scanning ễ citation range 10°-80°, scanning rate 5/min)

Impedance spectrum or conductivity - temperature relation

Diameter :

10.49 mm

Solartron1470E electrochemical workstation (test frequency 10-10^7Hz)

Thickness: 2.22mm

 Micromorphology

FEI ApreoC scanning electron microscope was used

 Particle size test

D10=0.194 μm

D50=0.324 μm

D90=0.504 μm

Malvern 3000 laser particle size distributor (powder refractive index 1.75)

Specific surface area (m^2/g)

20.07

TRISTART3020 surface meter was used

 pH

 6.83

The magnetic pHSJ-4F pH meter is adopted
