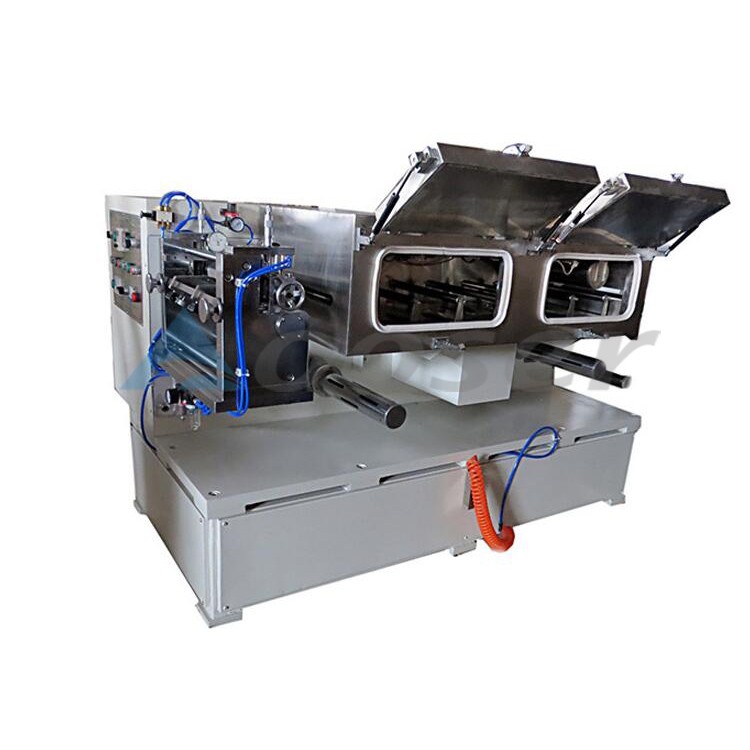

Lab Battery Electrode Lithium ion Battery Continuous Coating Machine with Drying Oven

Model: AS-CM-300

Origin: China

Max Coaitng Width: 300mm

Temp accuracy: ±1.5℃

Weight: 56KG

Description: Adopting continuous coating mode,this coating machine is mainly used in the slurry drying process for lithium battery electrode coating which are suitable for laboratory research.

EMAIL

Electrode Lithium ion Battery Continuous Coating Machine with Drying Oven


Features:

1 Scraping system, parts processing precision, slurry contact part stainless steel structure, scraping thickness adjustable.

2 Main transmission adopts frequency control of motor speed, wide speed range speed constant and reliable for the speed control system, constant torque

3 Drying box adopts far infrared heating pipe, high heat efficiency, long service life

4 Using hot air circulation system, can make the temperature uniform, not easy to burn the pole piece

5 Temperature control adopts PID control system, high control accuracy, reliable work

6 The reeling adopts automatic correction system, pole piece coiling system


Model

Continuous Coating Machine AS-CCM-300

Source voltage

AC 220V/110V, 50HZ

Power

6500W

Warranty

One Year limited warranty with lifetime support

Max electrode width

Less than 300mm

Coating speed

1m/min, adjustable

Coating accuracy

≤±0.003mm

Roller diameter

Dia.100mm

Max coating roller diameter

Dia.250mm

Control pressure

5-50N, adjustable

Dry temperature

RT-150℃, adjustable

Oven length

1.2m

Air compression

0.5-0.7MPa

Coating mode

Single face continuous coating

Application foil

Aluminum foil, Copper foil

Weight

About 1050kg

Dimension(L*W*H)

1800*800*1300mm

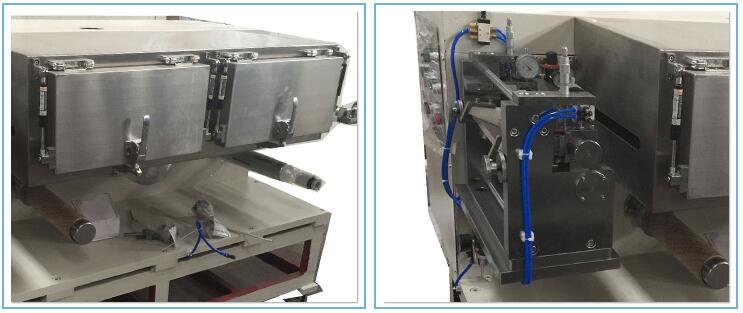

Details:

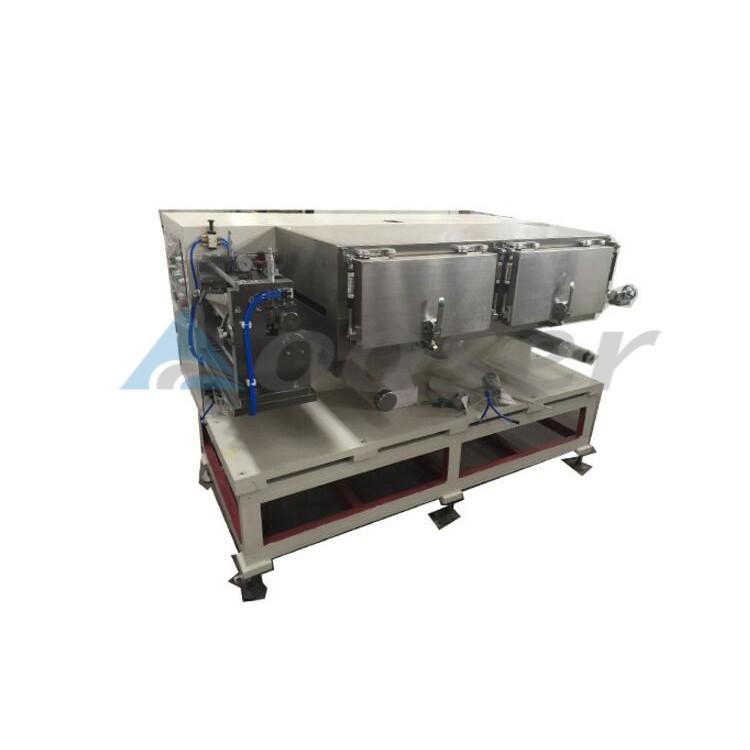

Lithium ion Battery Continuous Coating Machine with Drying Oven
