1. 25um microporous trilayer membrane(PP/PE/PP) Celgard 2325
2. Excellent resistance to acids, bases&most chemicals
3. Uniform pore structure with high chemical and thermal stability
4. Oxidation resistance for excellent cycling&trickle charge performance
5. PE inner layer provides high-speed shutdown
6. Zero TD shrinkage reduces internal shorting and inproves high temperature dimensional stability

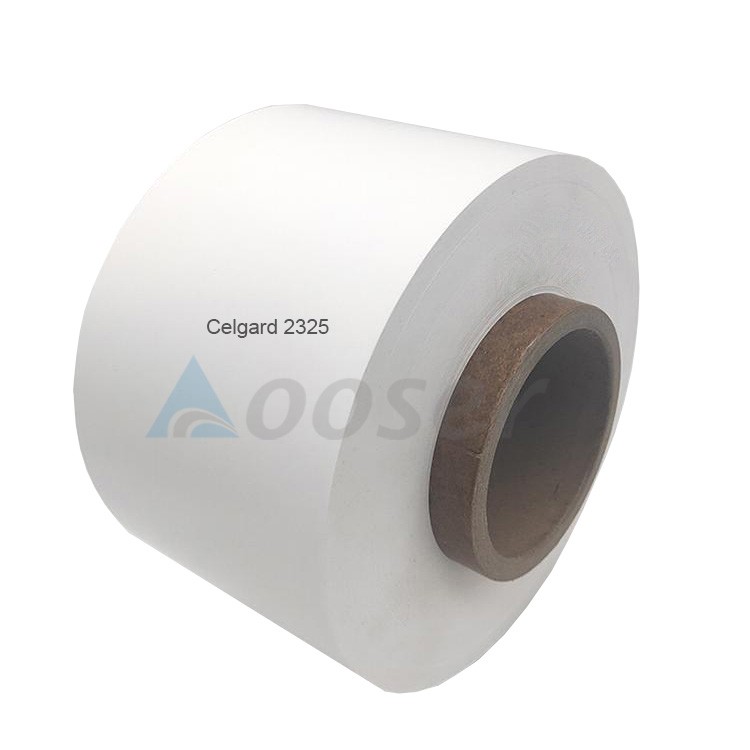

25um PP/PE/PP Three Layers Battery separator Celgard 2325
Introductions:
This Microporous Trilayers PP/PE/PP Membranes is usually used to the disposable (secondary) lithium battery.This seperator is a PP/PE/PP trilayers (polypropylene-polyethyerlene-polypropylene) membrane. It is made by Celgard. It can be used as li-ion battery separator in battery R&D.
Features:
1. 25um microporous trilayer membrane(PP/PE/PP)
2. Excellent resistance to acids, bases&most chemicals
3. Uniform pore structure with high chemical and thermal stability
4. Oxidation resistance for excellent cycling&trickle charge performance
5. PE inner layer provides high-speed shutdown
6. Zero TD shrinkage reduces internal shorting and inproves high temperature dimensional stability
Specifications:
|
Name |
25um PP/PE/PP Battery SeparatorCelgard 2325 |
|
Type |
PP/PE/PP thrilayers |
|
Thickness |
25μm |
|
Width |
85mm (other width can be customized) |
|
Length |
60m (Customized) |
|
Gurley JIS |
620 seconds |
|
TD Shrinkage @ 90°C / 1 hour |
0% |
|
MD Shrinkage @ 90°C / 1 hour |
5% |
|
Porosity |
39% |
|
Puncture Strength |
380 grams |
|
Tensile Strength, MD |
1700 Kg/cm^2 |
|
Tensile Strength, TD |
150 Kg/cm^2 |
|
MOQ |
5 m2 (Customized size is 10 m2) |
|
Lead time |
2-5 days after payment |
|
Warranty |
6 Months |
