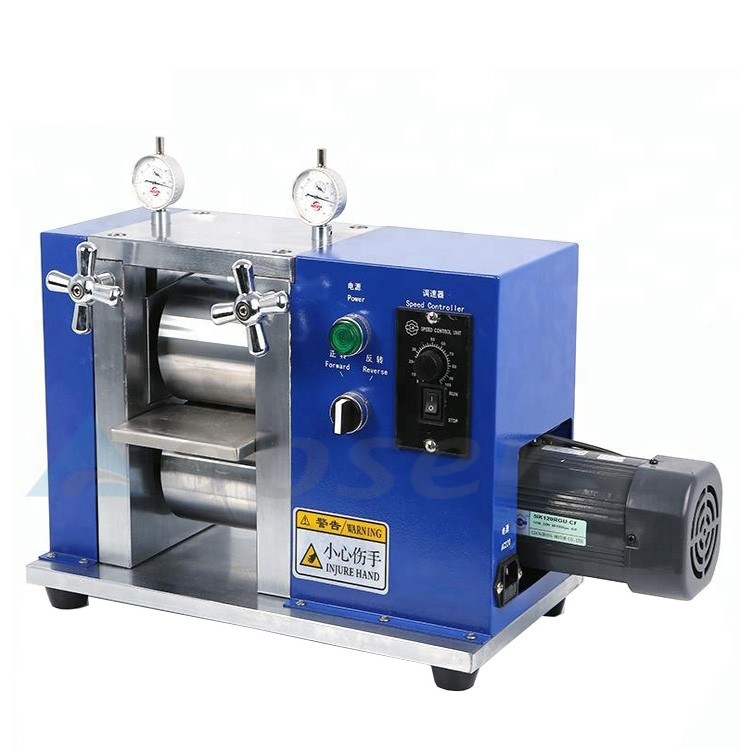

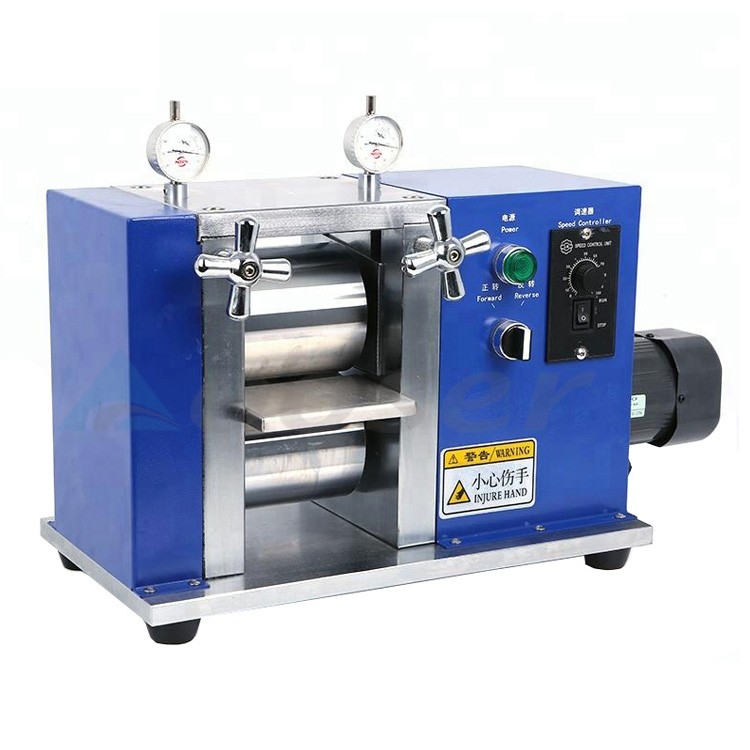

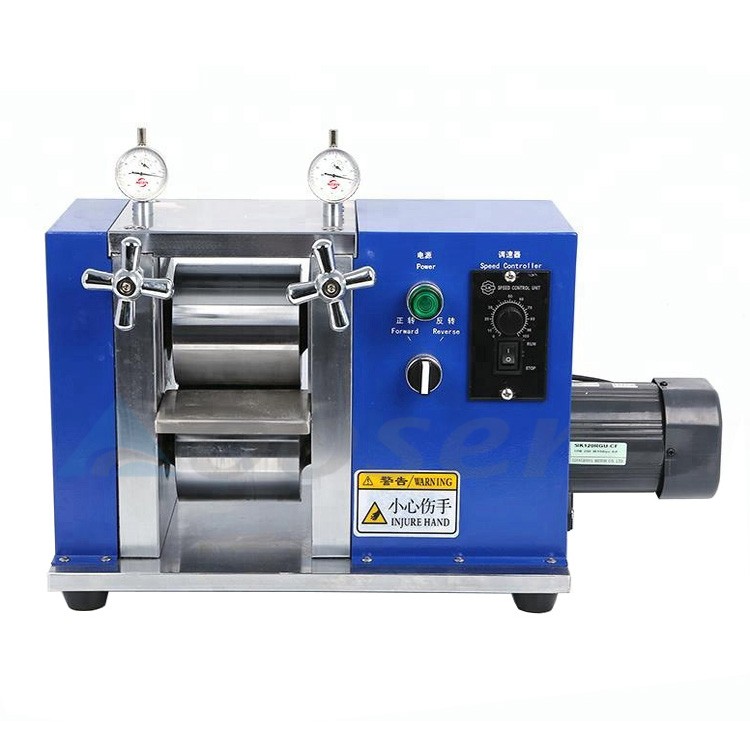

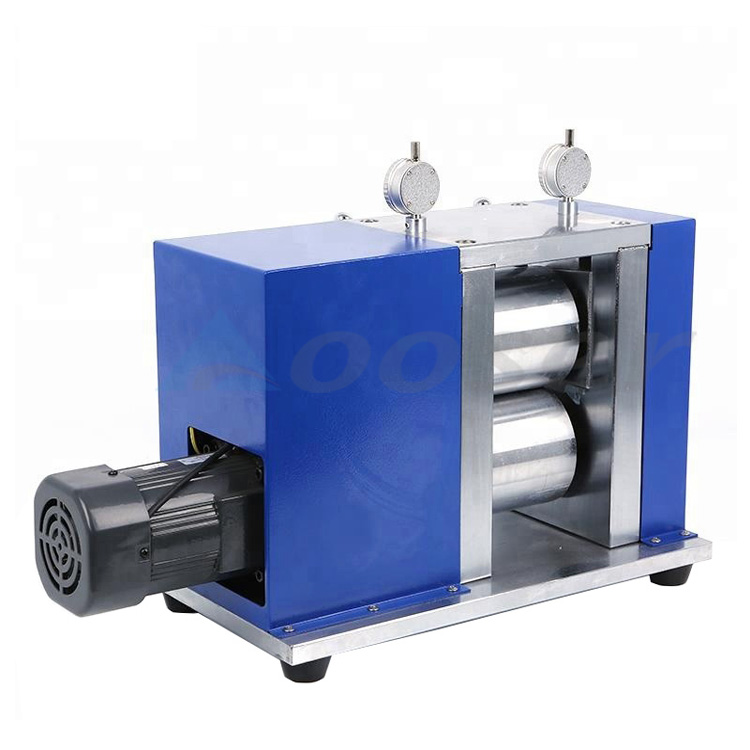

100mm Lab Electric Battery Electrode Sheets Calendering Roller Press Machine

100mm Lab Electric Battery Electrode Sheets Calendering Roller Press Machine

Model: AS-ERP-100

Roller diameter: 96 mm

Roller width: 100 mm

Origin:China

100mm Lab Electric Battery Electrode Sheets Calendering Roller Press Machine

This equipment is mainly used for electric rolling press of battery materials, a few precious metal materials like gold and silver andnonferrous materials like copper and aluminum in lab.

Features :
1. Hard chrome plated on surface.Material HRC62.

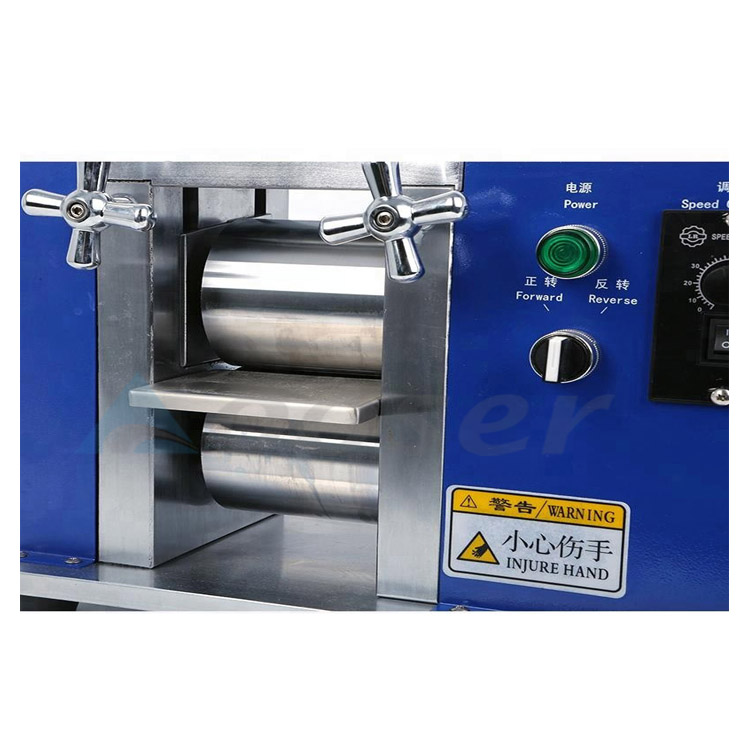

2. Transparent protective plate is designed for safety operation.
3. Press gap is adjustable.
4. Rolling speed , press thickness is adjustable.

Application:

Material research

Trial-production

Battery lab

Battery research

Lithium ion battery lab

Specifications:

BATTERY LAB EQUIPMENT of ROLLER PRESS

Item Name

Battery material presser AS-ERP-100

Watt

100W

Voltage

220V

Roller material

HRC62

Roller diameter

96mm

>0.8um

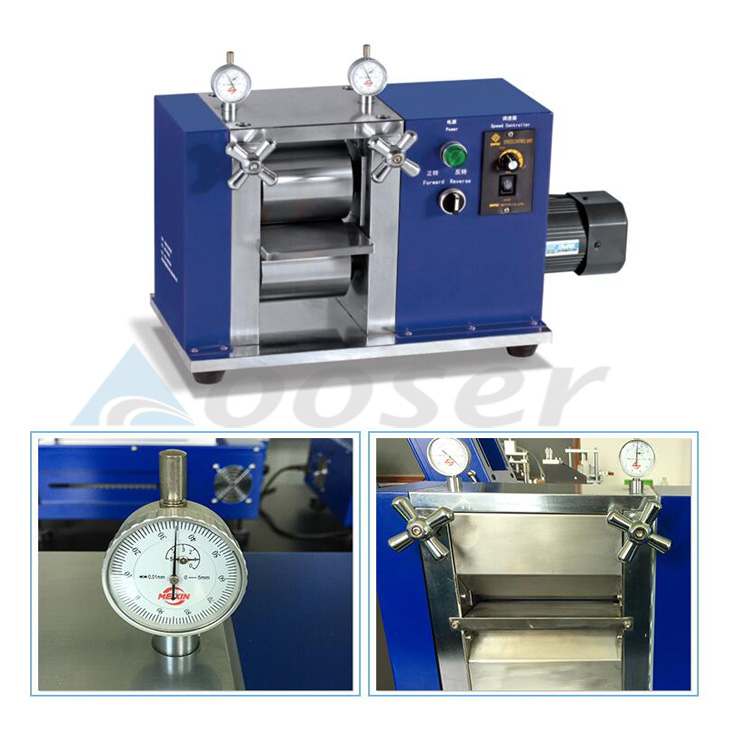

Press gap

0-2mm adjusted

Rolling width

0-100mm adjusted

Rolling speed

0~40mm/s adjusted

Size

L385mm*W245mm*H355mm

Weight

60KG

Application Notes

This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise.

1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting

2 Coated Rust-proof oil if machine were to be unused for a long period of time

3 The minimum thickness of the rolled sheet should depend on the physical property

of the materials. Here are some results from our test:

Electrode	Size	Original thickness	Finished thickness
LiFePO4 double sides	W50mm x L260mm	0.205mm	0.09mm
LiMn2O4 double sides	W50mm x L260mm	0.205mm	0.09mm
Copper foil + graphite (single side)	W75mm x L240mm	0.09mm	0.04mm
