Modal: AS-TF1200
Shipping port :Xiamen, China
Size: Depends on you
Payment: T/T, WesternUnion, MoneyGram, Paypal, Visa
Description:The split-tube furnace are made of famous Kanthal(Sweden) spiral wire coils embedded with Mitsubishi (Japan) quality 1500 grade alumina fiber insulation. The double steel interior shell helps minimize heat loss from the exterior surface.

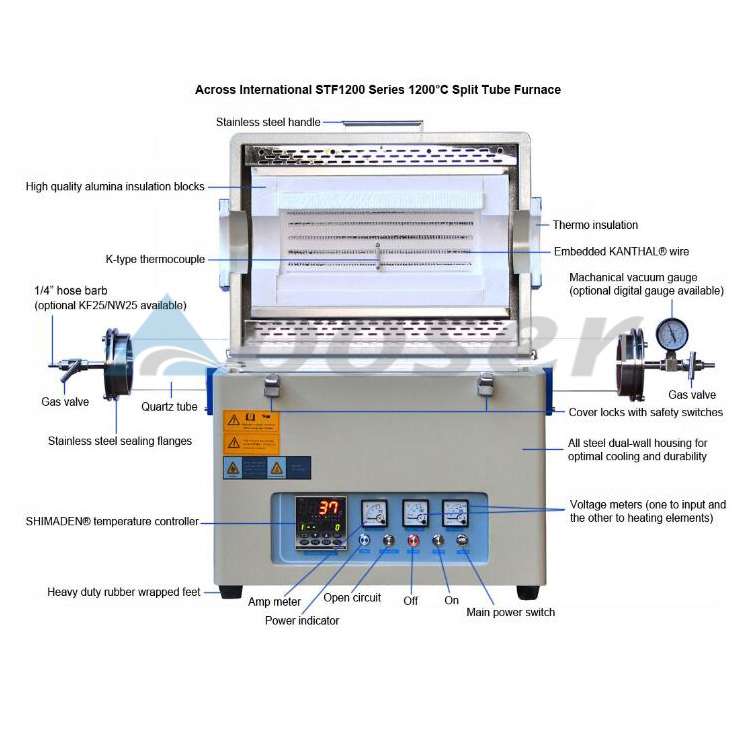

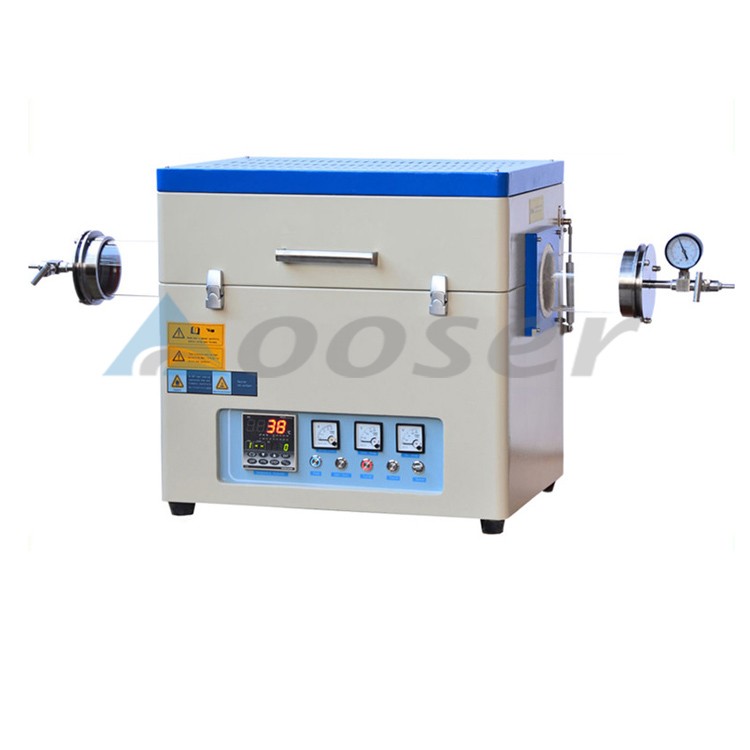

1200°C Single-Zone Split Tube Furnace
Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
All our furnaces are CE compliant.
Features:
Compact, portable and lightweight design.
Split furnace chamber for fast and easy tube access.

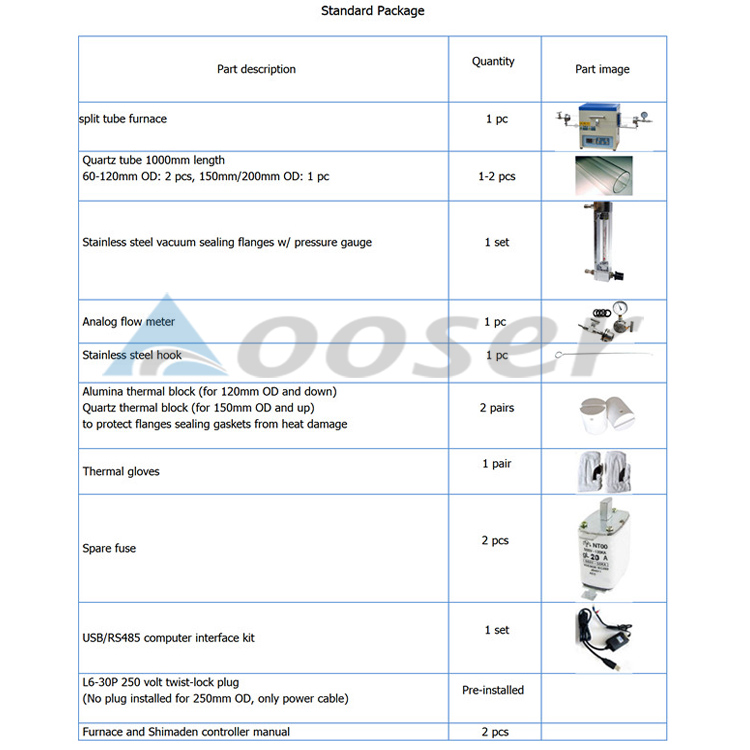

Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
Built-in computer interface.
Long life type K thermocouple.
Safety:
1.Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
2. Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane,etc.
General specifications.
|
Electrical requirements |
110-240VAC, 50/60 Hz, single phase |
|
Tube material |
Quartz |
|
Maximum working temperature |
1200°C |
|
Maximum constant working temperature |
1100°C |
|
Constant working temperature under vacuum |
1000°C |
|
Minimum working temperature |
Ambient |
|
Rated vacuum pressure |
0.001 Pa / 0.0075 millitorr / 0.00001 mbar |
|
Rated positive pressure |
0.02 MPa / 150 torr / 3 psi |
|
Heating element type |
Kanthal (Sweden) resistance coil wire |
|
Thermocouple type |
K |
|
Refractory lining |
Mitsubishi (Japan) high quality 1500 grade fiber alumina |
|
Temperature controller |
Shimaden (Japan) fp93 (made in Japan) with 4 programs and |
|
Maximum heating & cooling rate |
< 30°C / min |
|
Heating zone length |
16 inches |
|
Constant temperature zone length |
10 inches |
|
Temperature controller precision |
+/- 1°C |
|
Vacuum sealing flange kit |
Stainless steel vacuum sealing flanges with one vacuum gauge, |
|
Gas inlet/outlet |
1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread) |
|
CE compliance |
Yes |
Size comparison:
|
Tube size (OD x length) |
60mm x 1m |
80mm x 1m |
100mm x 1m |
120mm x 1m |
150mm x 1m |
200mm x 1m |
250mm x 1m |
|
Maximum output |
2.5 kW |
3.5 kW |
3.5 kW |
4 kW |
5 kW |
6 kW |
8 kW |
|
Furnace dimensions (LxWxH) |
24x15x20" |
24x17x23" |
24x17x23" |
24x17x23" |
24x18x24" |
26x21x28" |
26x21x28" |
|
Shipping dimensions (LxWxH) |
46x21x36" |
46x21x36" |
46x21x36" |
46x21x36" |
46x22x37" |
50x28x40" |
50x28x40" |
|
Shipping weight (Lb) |
260 |
300 |
340 |
400 |
450 |
500 |
650 |
