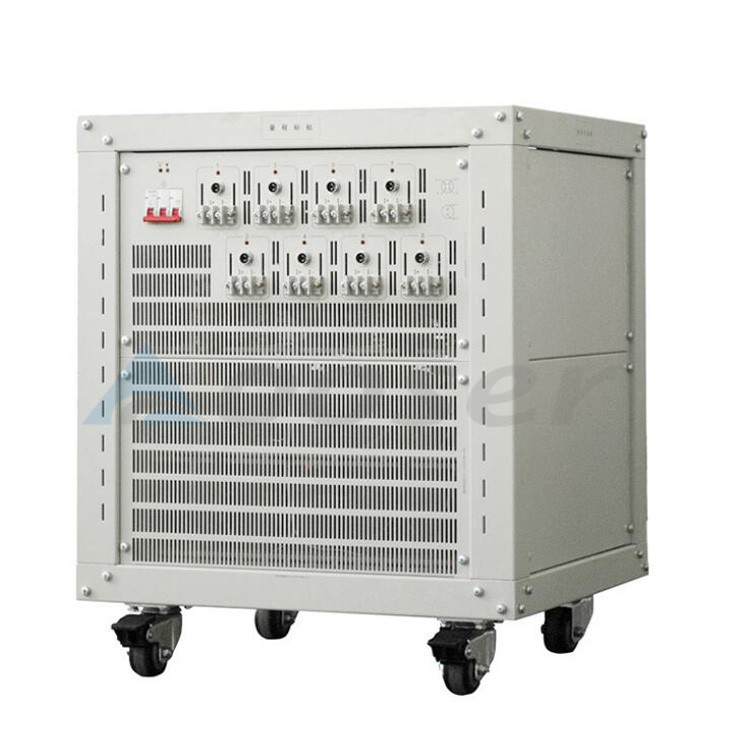

BTS-30V10A Lithium Battery Testing System Analyzer of Charging and Discharging

Electricity Requirement

208~240VAC 50/60Hz

Power Consumption

2.4KW

Current

Range: 0.03A – 10A programmable

Accuracy: ±(0.05% RD + 0.1% FS)

Customizable current range

0-1 mA, 0-10 mA, 0-300 mA, 0-2 A, 0-3 A, 0-5 A, 0-20 A, 0-30 A, etc.

Voltage

Range: 0.15V - 30V programmable

Accuracy: ±(0.05% RD + 0.1% FS)

Customizable voltage range

0-5 V, 0-10 V, 0-20 V, 0-30 V, 0-50 V, 0-60 V, 0-150 V, 0-300 V, 0-500 V, etc.

Time Range

0 - 999 seconds

Cycle Measurement Range

1 - 9999 times

Port

Network

Input Impedance

≥ 10 m-ohm

Software

Uses standard SQL database management

Windows-based software interfaces for easy operation

Real-time monitoring windows and integrated graph/data windows

Can set various working modes for measuring capacity and cycle life of all types of rechargeable batteries, such as:

constant current discharge, constant current charge, constant voltage charge, rest, as well as voltage, current, time, capability, negative voltage slope, and other limit conditions

The user can define the curve by different types ,such as voltage-time curve, current-time curve, capacity-voltage curve, loop times charge/discharge capacity curve, loop times charge/ discharge efficiency curve, etc. to make curves be compared both by visually and statistically

Provide timely instructions, warnings, and intelligent support

Record

Complete test process record (log function)

Intelligent power failure protection:

Compliance

CE Certified

Warranty

Two years limited warranty with lifetime support for the battery analyzer.

Product Dimensions

26"(L) x 20"(W) x 20"(H)

Net Weight

90 kg (200 lbs)

Warranty

One year limited warranty with lifetime support for the battery analyzer

Origin

China
