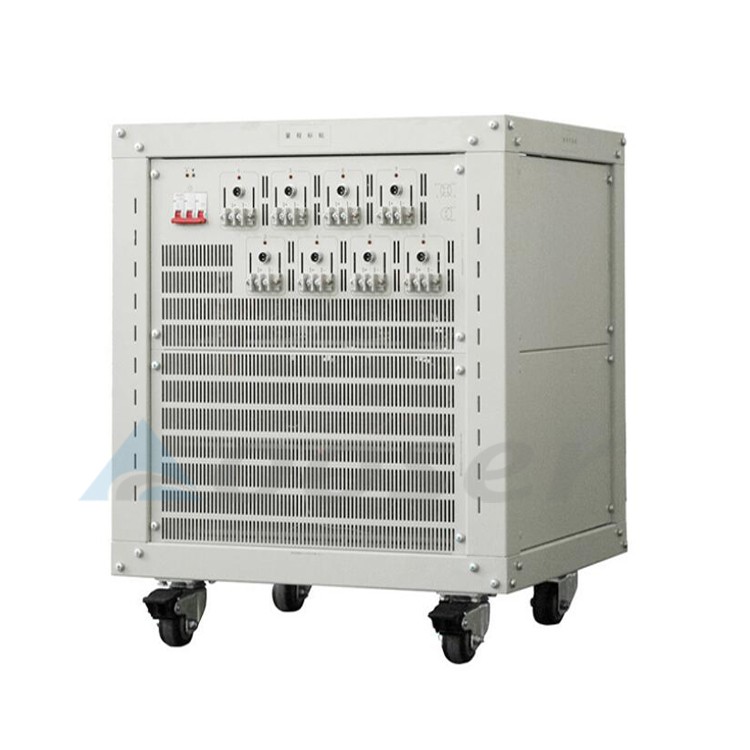

40V10A Lithium Battery Testing System Analyzer with Automatic Charge and Discharge

Model

BTS-40V10A

Input Power

AC 220V ±10% / 50Hz

Resolution

AD：16bit；DA：16bit

Input Resistance

≥1MΩ

Input Power

4253W

Channel Features

Constant Current Source and Constant Voltage Source

with Independent pairs of Closed-loop Structure

Channel Control Mode

Independent Control

Voltage

Per Channel Voltage Range

0.2V-40V

Min discharge Voltage

0V

Accuracy

± 0.1% of FS

Stability

± 0.1% of FS

Current

Per Channel Current Range

0.05A-10A

Cut offCurrent

0.02A

Accuracy

± 0.1% of FS

Stability

± 0.1% of FS

Power

Per Channel Output Power

400W

Stability

± 0.2% of FS

Time

Current Response Time

20ms (0-Full Range)

Step Time Range

≤(365*24 )hour/step，

Time Form Support 00：00：00(h、min:s、ms)

Data Recording

Record Condition

Minimum  Time Interval: 100ms

Minimum Voltage Interval: 80mV

Minimum Current  Interval : 20mA

Record Frequency

10Hz

Charge

Charge Mode

Constant Current Charge、Constant Voltage Charge、

Constant Current and Constant Voltage Charge、CPC

End Condition

Voltage、Current、Relative Time、Capacity、-ΔV

Discharge

Discharge Mode

CCD、CPD、CRD

End Condition

Voltage、Current、Relative Time、Capacity、-ΔV

Pulse

charge

CCC

Discharge

CCD

Min Pulse Width

500ms

Automated Switch

Automated switch from charge to discharge for each pulse

End Condition

Voltage, Test Time

DCIR

Support DCIR testing

Cycle

Loop Measure Range

1~65535 times

Max Steps Per Loop

254

Nested Loop

Nested loop Function，Max Support 3 Layers

Protection

Software Protection

l Power-down Data Protection

l Off-line Testing Function

l Setting Protection Condition，Setting Parameter：

Low Voltage limit、Upper Voltage limit、Low Current limit、

Upper Current limit、Delay Time

Hardware Protection

Additional Anti-reverse Protection Model

Voltage and Current Testing Sample

4-wire connecting

Noise

<85dB

Database

MySQL Database

Host computer communication mode

TCP/IP Protocol

Data Output

EXCEL 2003, 2010,TXT

Communication Interface

Ethernet Port

Per Unit Main Channels No.

8

Origin

China

Warranty

ONE Year limited warranty with lifetime support for the battery analyzer.
