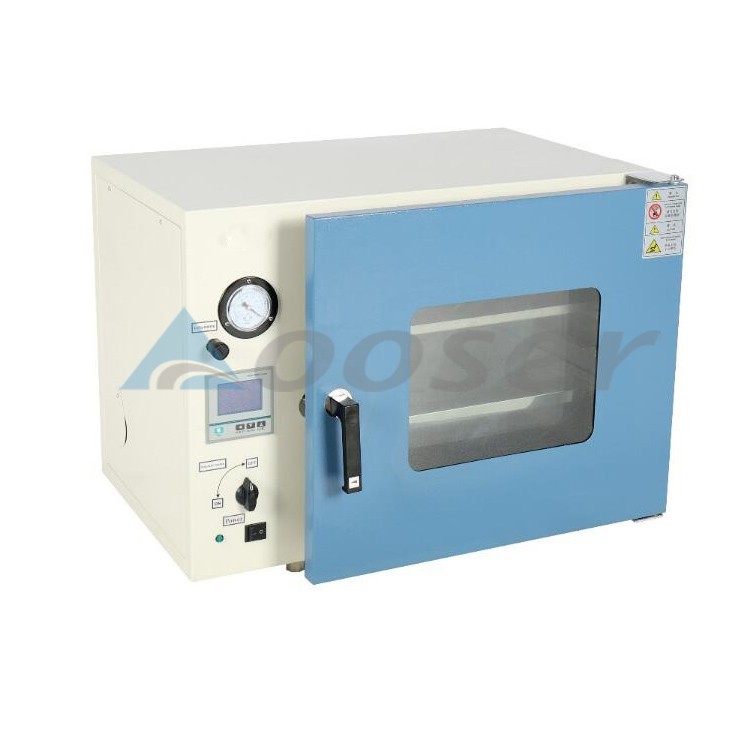

25L Heat Drying Laboratory Small Vacuum Oven

Model: AS-DVO-6020

Origin:China

Material: 304 Stainless Steel

Temperature: RT+10-250℃

Description:This product is mainly used in scientific research institutions, professional colleges, laboratories, industrial and mining enterprises and production field for materials drying and heat treatment under the vacuum state.

25L Heat Drying Laboratory Small Vacuum Oven

Introduction:

The Vacuum Drying Oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing vacuum embedding, and plating applications.

This Vacuum Drying Oven for lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying.

1. Vacuum environment greatly lowered the liquid’s boiling point which needs to be driven away; therefore the vacuum dry method can be applied into heat sensitivity material.

2. For the samples which can't be dried easily, such as powder or other pellet form sample, using vacuum dry method may effectively reduce drying time.

3. Various complex structures of machinery ministry or other porous sample process use vacuum dry method after washing will not leave any residue.

4. Safety guarantee: whether under vacuum or inertia condition, the possibility of oxide explodes when is heated will completely be eliminated.

5. Compared with the normal drying method depended on air circulation, powder samples will not be blown or moved away by air.

Parameters:

Model	AS-DVO-6020 Vacuum Drying Oven
Source voltage	AC220V/50HZ , 110V60Hz Customized
Power	300W
Warranty	One Year Limited Manufacture Warranty with Life Time Support
Working room material	Stainless steel
Temperature range	RT+10-200℃
Temperature fluctuation	0.1℃/±0.5℃

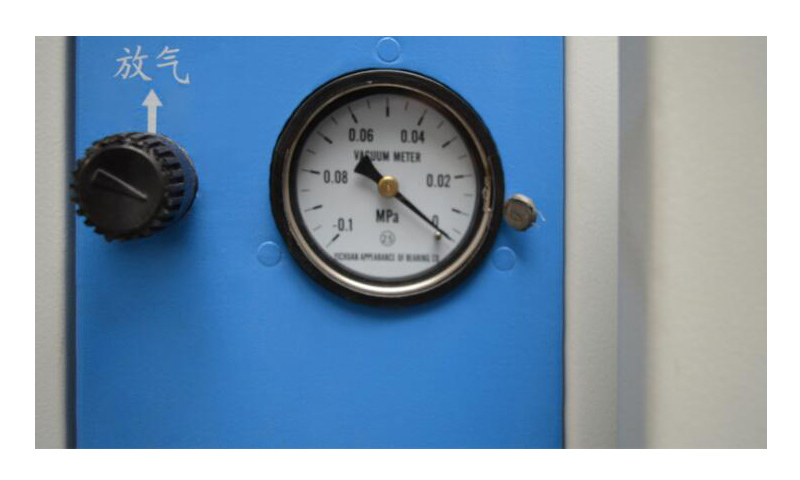

Vacuum degree	Less than 133Pa
Volume	25L
Inner box size(LWH)	300300275mm
Dimension(LWH)	605490450mm
Temperature controller	1 High precision microcomputer temperature controller, accurate temperature control 2 Working temperature can be set and working time can be set for 0-9999min. 3 When time reach, sound alarm, and when any error, also alarm. function
Inner box material	304 stainless steel
Outside shell material	High quality cold-rolled steel plate electrostatic spray

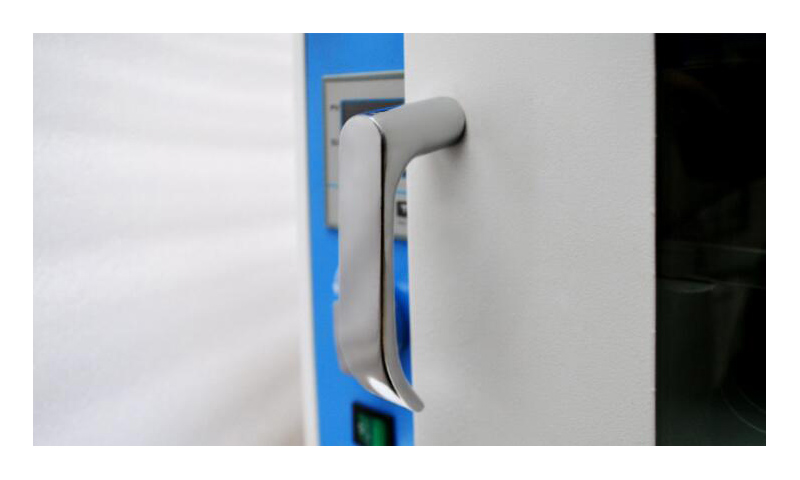

Box door	Toughened bulletproof double glass door
Safety device	With over temperature protection, grounding etc
Shelf	1pcs 1 Solid stainless steel shelf, guarantee the oven temperature 2 Mesh stainless steel shelf can be also chosen
Ambient temperature	+5~40℃
Application	The product is widely used in biochemistry, chemical and pharmaceutical, health care, agricultural research, environment protection and other areas of research and application for powder drying, baking and all kinds of glass containers’ disinfection and sterilization. Especially for those drying heat-sensitive, labile, oxidizing material and decompounded to carry on fast and effective drying process.
