420L Convection Dry Oven with Digital Temperature Controller

420L Convection Dry Oven with Digital Temperature Controller

Product Name:Convection Dry Oven

Brand Name:AS-DHG-9425

Product Origin:China

Product description: DHG-9425 is a Large Mechanical Convection Oven with a digital temperature controller.

The AS-DHG-9425 Large Mechanical Convection Oven is engineered for industrial and laboratory applications. Equipped with a digital temperature controller (±1°C stability), it reaches a maximum operating temperature of 250°C with rapid heating at 10°C/min. Its 420L stainless steel chamber and three heavy-duty shelves (10kg load per shelf) ensure uniform heat distribution, making it ideal for battery material drying, medical equipment sterilization, chemical heat treatment, and other precision thermal processes.

Core Technologies

（1）Forced-Air Convection System: Ensures ±2°C uniformity @100°C, eliminating hot spots.

（2）Advanced PID Control: Digital temperature controller with ±1°C accuracy and programmable multi-stage heating.

（3）Robust Construction: 304 stainless steel chamber (anti-corrosion) + three adjustable shelves (30kg total load).

Industry Applications

（1）Battery Manufacturing: Electrode material drying, separator heat treatment.

（2）Medical/Lab: Instrument sterilization, packaging dehydration.

（3）Chemical Processing: Powder curing, wax melting.

（4）Electronics: PCB board drying, coating curing.

Customer Benefits

（1）High Efficiency: 10°C/min heating reduces cycle time, boosting productivity by 20%+.

（2）Precision Control: ±1°C stability minimizes material degradation (yield rate ≥99.5%).

（3）Durability: Stainless steel chamber withstands corrosion (10+ years lifespan).

（4）Smart Integration: Optional RS485 communication for MES/SCADA connectivity.

Working Voltage	208-240V AC, Single Phase, 50/60 Hz (30A Breaker Required)
Max. Power Consumption	3500W
Operating Temperature	250°C max continuously
Max. Heating Rate	10°C/min
Temperature Stability	± 1.0 °C
Temperature Uniformity	± 2°C @100°C

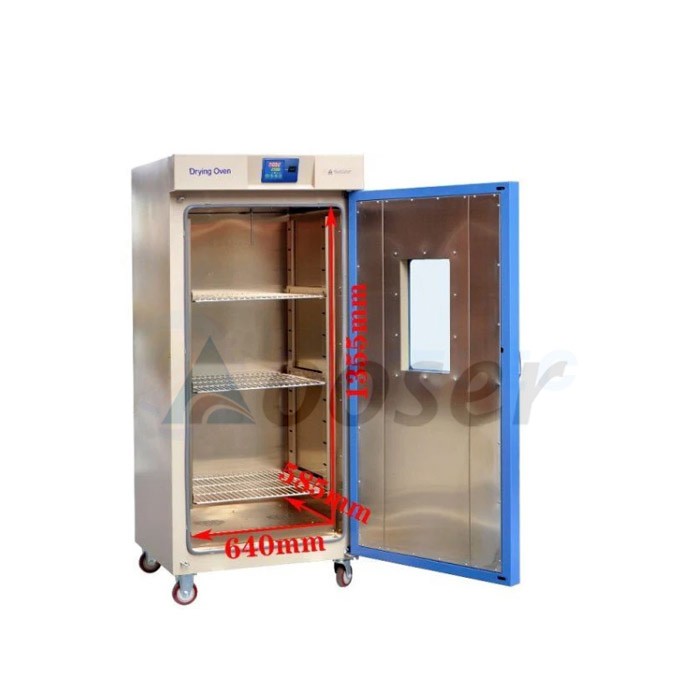

Chamber	· Interior Material: Stainless Steel · 3 stainless steel shelves were included for immediate use · Dimensions: L 640 mm x W 585 mm x H 1355mm ( ~25 L“x23” Wx53 H) · Volume: 420L · Max loading weight on each shelf: ~10kg
Temperature Controller	digital temperature controller with +/- 1°C accuracy

Company Profile

Xiamen AS battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AS Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
