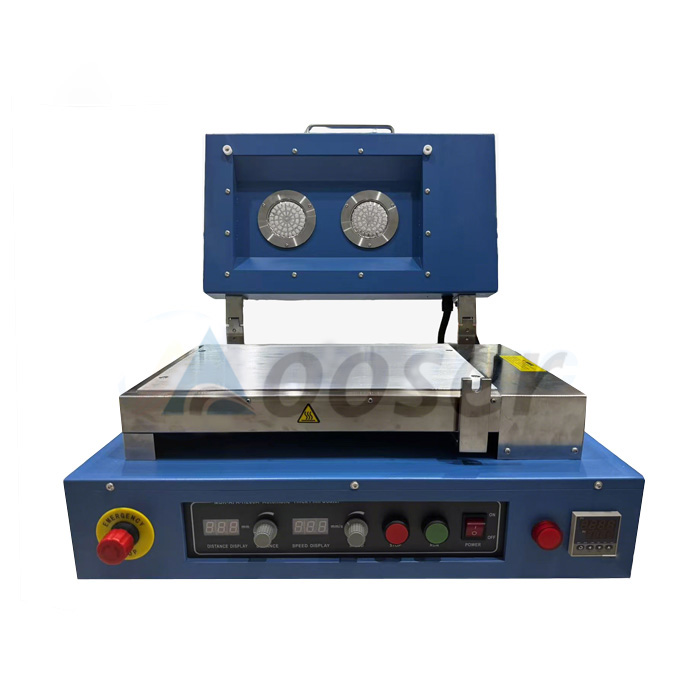

Battery Casting Coater Machine

Heatable Vacuum Platform

· Vacuum chuck made of aluminum alloy with the micro-size holes

· Vacuum chuck Area:  400mm (L) x 250mm (W) (16"L x 10"W )

· Heating elements are installed inside the chuck which can reach 250ºC Max.

· Precision digital temperature controller with +/- 1ºC accuracy

Film Applicator

· Built-in pushing bar for using micrometer adjustable applicator

· 180 mm width Applicator with micrometer adjustable head is included for immediate use (Click picture 1 to see details)

· 24VDC motor driving mechanism, which can be used under Ar gas glovebox.

Coating Area

· Standard Package: 350mm(L) x 180mm(W) due to the width and occupied area of the 180 mm applicator.

· Maximum: 350mm(L) x 230mm(W) Reduced width to avoid slurry spilling off the vacuum bed.

· Length 10 - 350 mm adjustable by using Adjustable Position Switch

Accuracy of Film thickness

· +/- 0.01mm

Traverse  Speed & Distance

· Travel Speed: 0 - 80mm/sec variable

· Travel distance: 0 - 400 mm adjustable

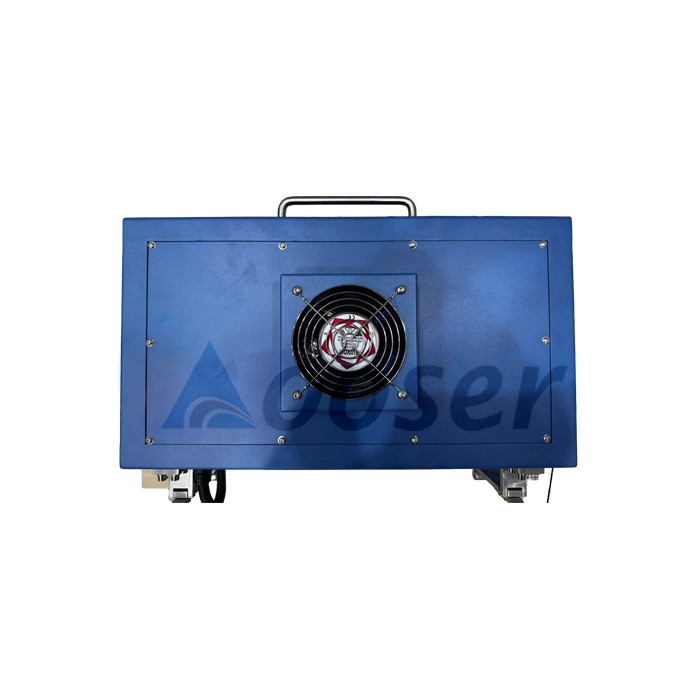

Top Cover and Filter

· Active carbon filter and  venting fan are installed on the top cover

· The filter will remove organic vapor to make the lab environment safe & clean

Net weight

40kg
