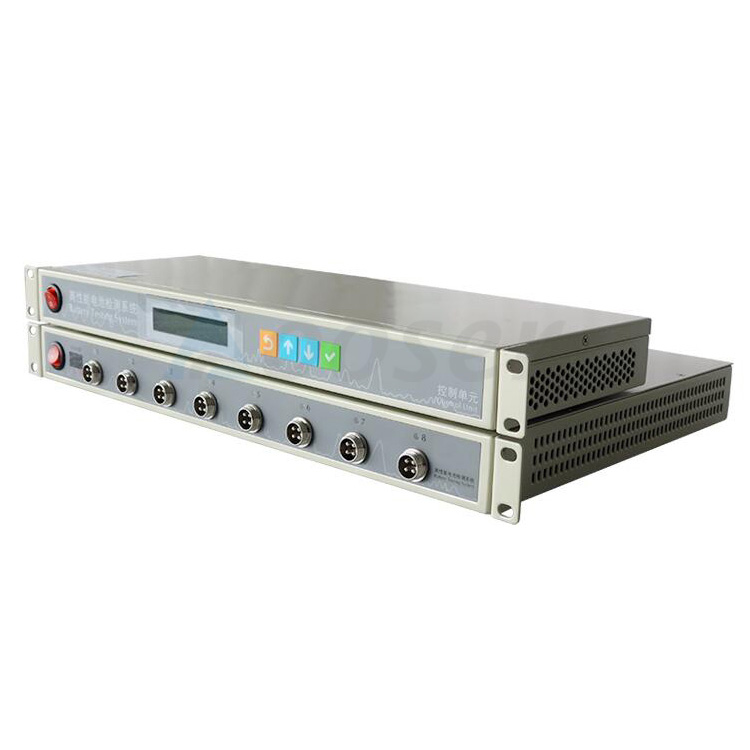

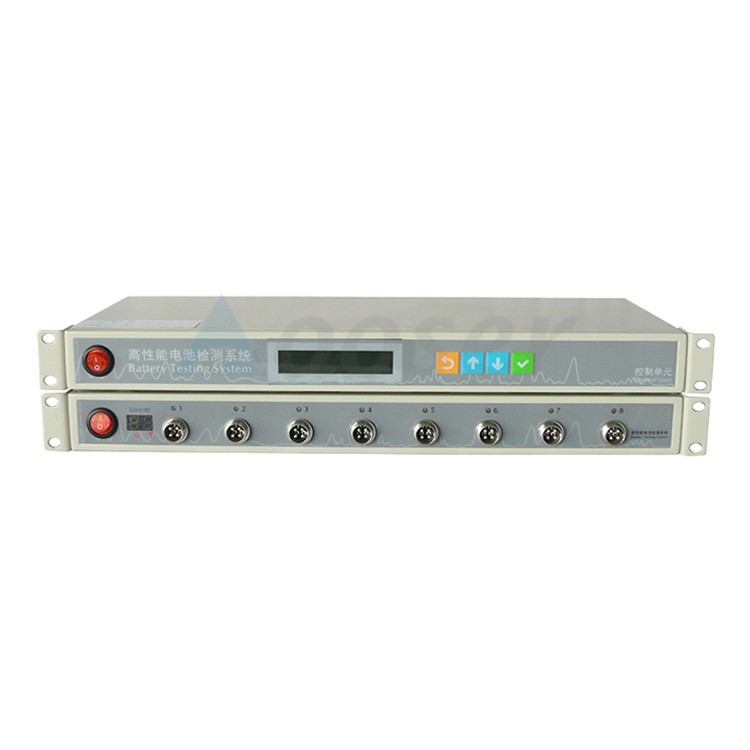

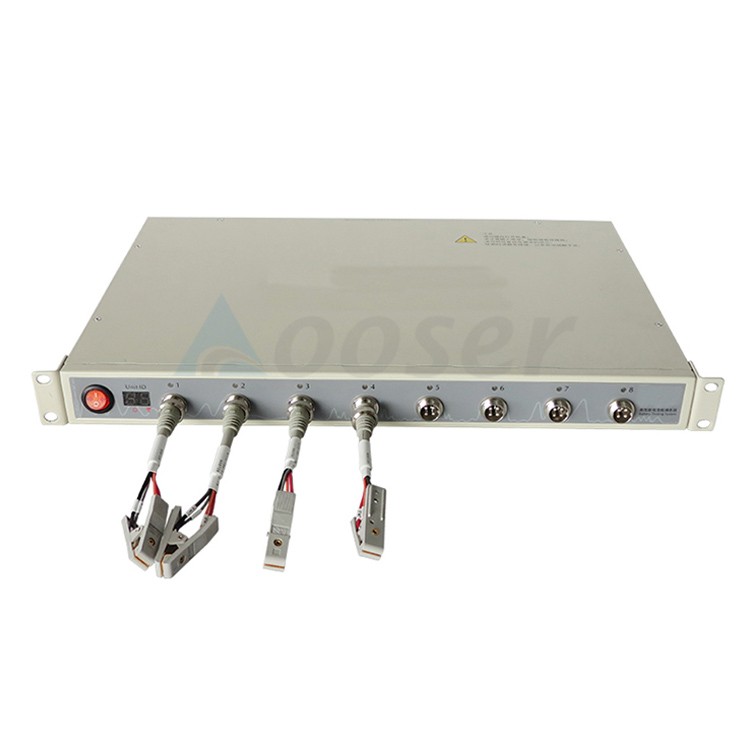

5V50mA Coin Cell Tester for Lab Button Battery Analyzing

5V50mA Coin Cell Tester for Lab Button Battery Analyzing

1. The lithium ion battery tester is according to the international standard design, battery tester each channel has an independent constant-current source and constant-voltage source. It is used to test rechargeable( Lithium-ion battery,Ni-MH battery, Ni-CD battery and polymer battery, etc.) pack battery, and so on.
2. Battery tester internal electrical power supply uses the high efficiency switching power supply, the energy conservation effect remarkable, each power tube has the independent protection circuit, guarantees the Equipment works with safety and reliability.
3. Measure adopts four wire method, decrease contact error, increase measure precision.
4. Battery tester each channel is independent, total 8 channels; With high efficient cooling system, Equipment can work 24 hours with full load.

5V50mA coin cell Tester for Lab Button Battery Analyzing

Description:

2. Battery tester internal electrical power supply uses the high efficiency switching power supply, the energy conservation effect remarkable, each power tube has the independent protection circuit, guarantees the Equipment works with safety and reliability.

3. Measure adopts four wire method, decrease contact error, increase measure precision.

4. Battery tester each channel is independent, total 8 channels; With high efficient cooling system, Equipment can work 24 hours with full load.

Parameters:

Aooser BTS4000-5V50mA Battery Testing Equipment
Model：	BTS4000-5V50mA	Battery Testing System		SN:	CT-4008T-5V50mA-164
Items		Values
Input AC		AC 220V/110V ±10% / 50Hz
Input power		25 W
Resolution		AD:16bit;DA:16bit
Input impedance		≥1G Ω
Voltage	CV output range	25mV~5V
	Min discharge voltage	-5V
	Accuracy	± 0.05% FS
	Stability	± 0.05% FS
Current	Output range/channel	Range1: 5μA-1mA; Range2: 1mA-25mA; Range3:25mA-50mA
	Accuracy	± 0.05% FS
	CV cut-off current	Range1: 2μA; Range2: 20μA; Range3:40μA
	Stability	± 0.05% FS
Power	Output power/channel	0.25	W
	Stability	± 0.1% of FS
Time	Current response time	<500μs (10%FS~90%FS)
	Working step time	≤(365*24)h/step Time format-00:00:00.000(h,m,s,ms)
Data record	Data record conditions	Min data record interval:100ms
		Min voltage change:10mV
		Min current change:2μA;50μA;100μA
	Frequency	10Hz
Charge	Charge modes	CC,CV,CCCV,CP
	Cut-off condition	Voltage,Current,Time,Capacity,Energy,-△V
Discharge	Discharge modes	CC,CV,CCCV,CP,CR
	Cut-off condition	Voltage,Current,Time,Capacity, Energy
Pulse	Charge	CC, CP
	Discharge	CC, CP
	Min pulse width	500ms
	Pulse counts	Up to 32
	Chg and Dschg switch	Supported
	Cut-off condition	Voltage, Time
DCIR	Supported
Cycle	Max cycles	65535
	Max steps	254
	Cycle nest	3
Protection	Safety protection	Power-failure data protection
		Offline operation mode
		User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.

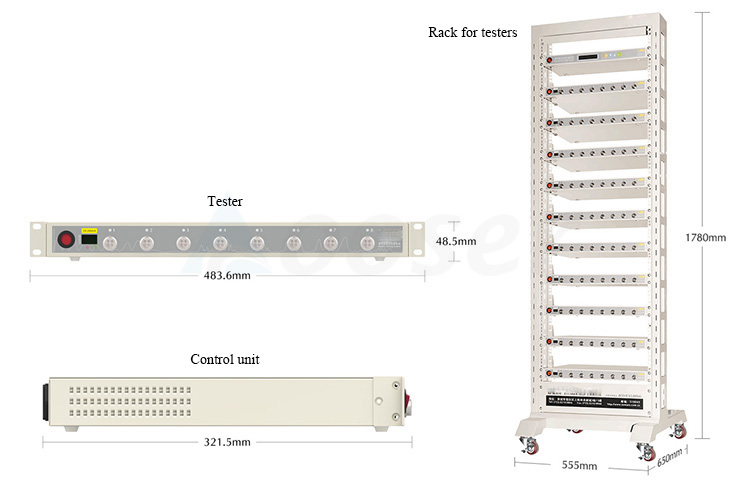

Dimension	1U(19"),W483mmD310mmH48mm
