5V10mA Coin Cell Tester for Research Institutions and Universities

5V10mA Coin Cell Tester for Research Institutions and Universities

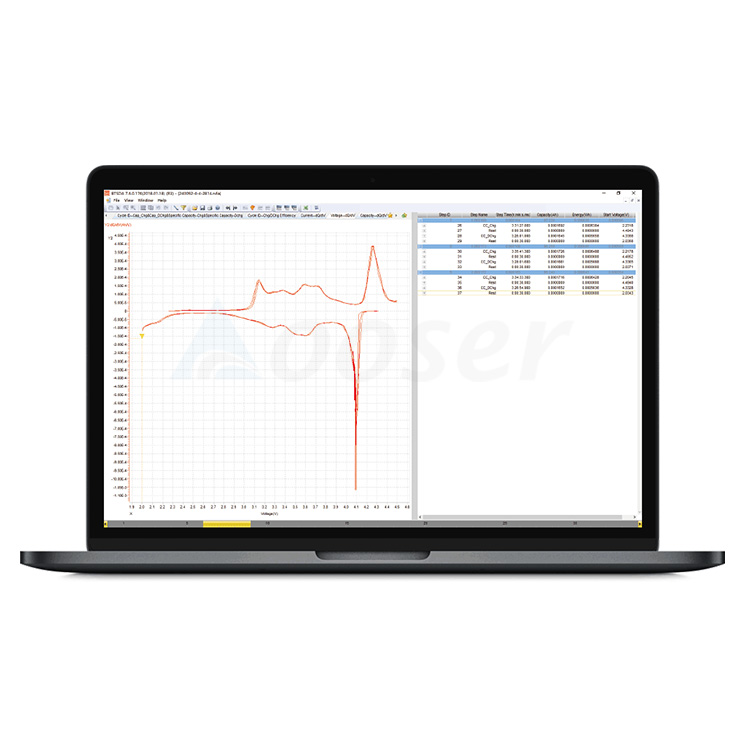

Aooser CT-4000 three-range mA device meets 0.01% FS accuracy, DCIR test, dQ/dV differential capacity curve, μA-level current unit, three-electrode test. Mainly for research institutions and universities.

CT-4000 three-range mA device meets 0.01% FS accuracy, DCIR test, dQ/dV differential capacity curve, μA-level current unit, three-electrode test. Mainly for research institutions and universities.

Parameters:

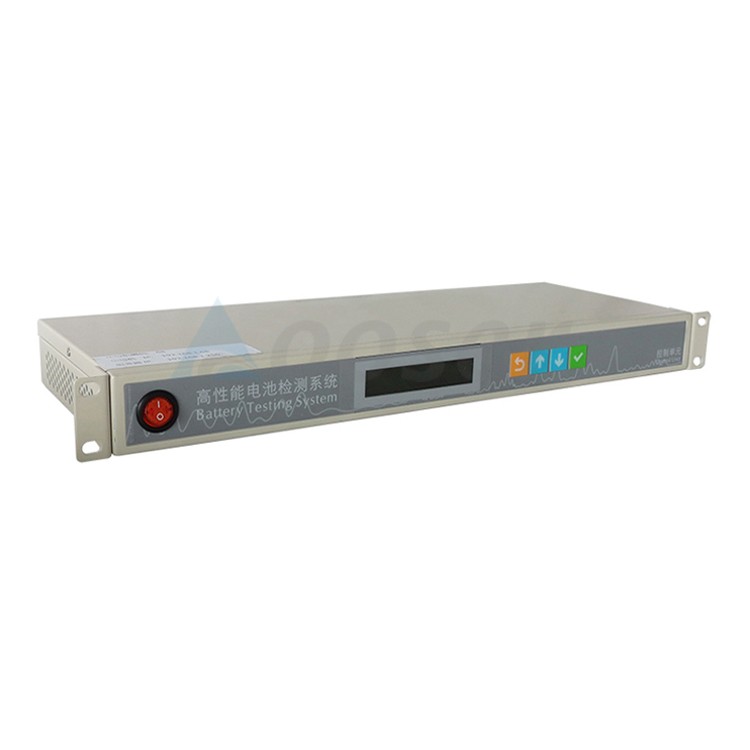

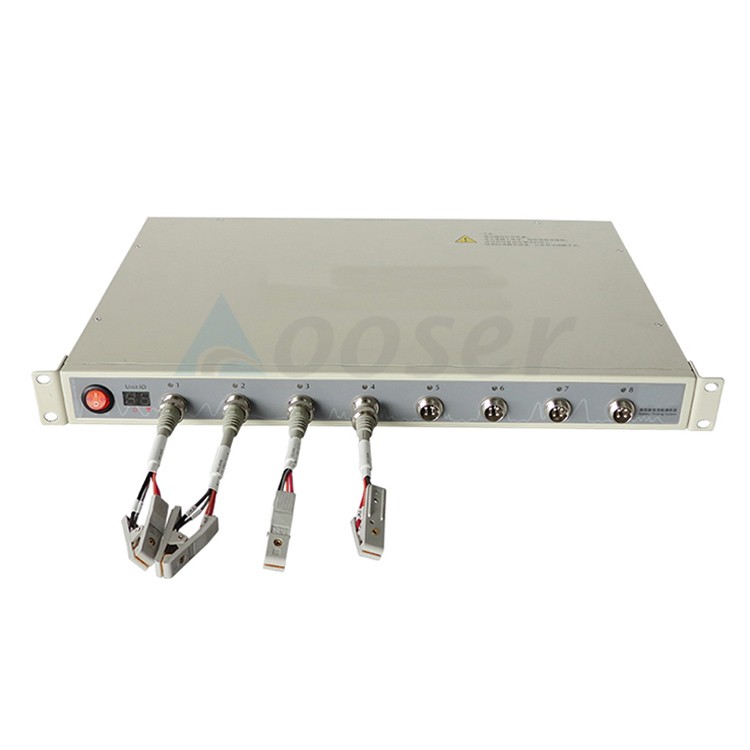

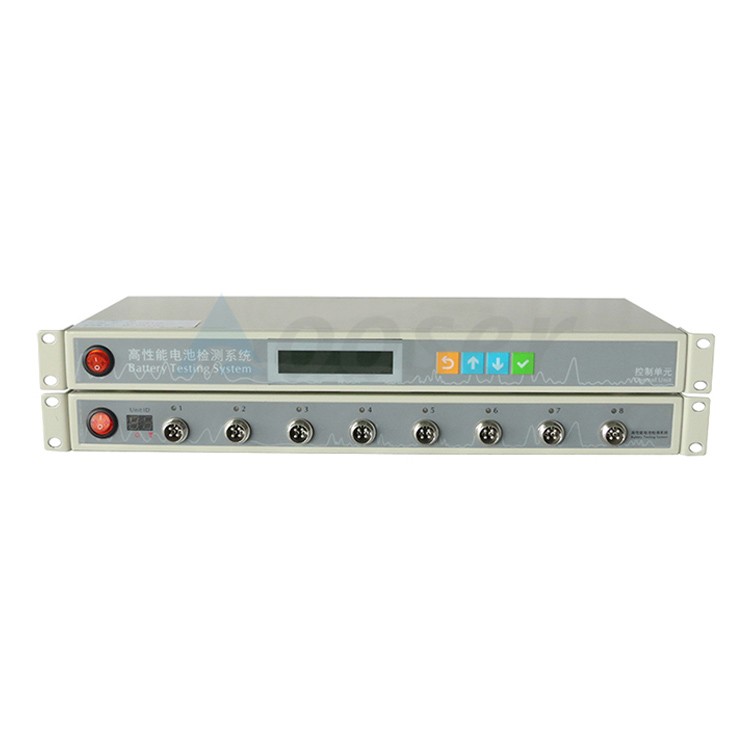

BTS4000-5V10mA Battery Testing System
Model：	BTS4000-5V10mA	Battery Testing System		SN:	CT-4008T-5V10mA-164
Items		Values
Input AC		AC 220V/110V ±10% / 50Hz
Input power		25W
Resolution		AD:16bit; DA:16bit
Input impedance		≥1G Ω
Voltage	CV output range	25mV~5V
	Min discharge voltage	-5V
	Accuracy	± 0.05% FS
	Stability	± 0.05% FS
Current	Output range/channel	Range1: 5μA-1mA; Range2: 1mA-5mA; Range3 : 5mA-10mA;
	Accuracy	± 0.05% FS
	CV cut-off current	Range1: 2μA; Range2: 0.01mA; Range3: 0.02mA
	Stability	± 0.05% FS
Power	Output power/channel	0.05	W
	Stability	± 0.1% FS
Time	Current response time	<500μs (10%FS~90%FS)
	Working step time	≤(365*24)h/step Time format-00:00:00.000(h, m, s, ms)
Data record	Data record conditions	Min data record interval:100ms
		Min voltage change: 10mV
		Min current change: 2μA; 0.01mA; 0.02mA
	Frequency	10Hz
Charge	Charge modes	CC, CV, CCCV, CP
	Cut-off condition	Voltage, Current, Time, Capacity, -△V
Discharge	Discharge modes	CC, CV, CCCV, CP, CR
	Cut-off condition	Voltage, Current, Time, Capacity
Pulse	Charge	CC, CP
	Discharge	CC, CP
	Min pulse width	500ms
	Pulse counts	Up to 32
	Chg and Dschg switch	Supported
	Cut-off condition	Voltage, Time
DCIR	Calculated DCIR values available in BTSDA
Cycle	Max cycles	65535
	Max steps	254
	Cycle nest	3
Protection	Safety protection	● Power-failure data protection
		● Offline operation mode
		● User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.
