Three-Electrode Split-Able Test Cell for Testing Coin Cell Electrode Materials

Three-Electrode Split-Able Test Cell for Testing Coin Cell Electrode Materials

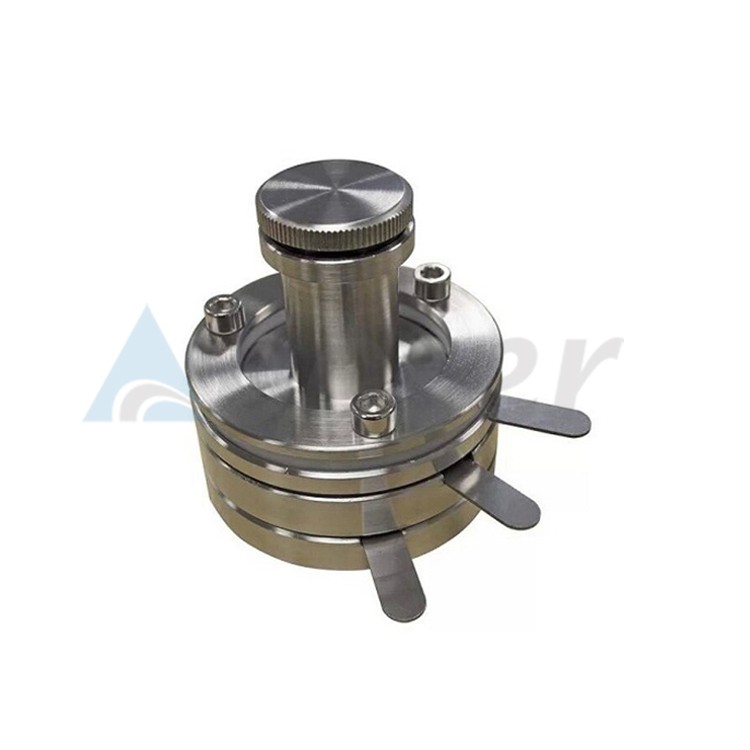

Product Name: Three-electrode split test cell

Structure: Full stainless steel (SS304)

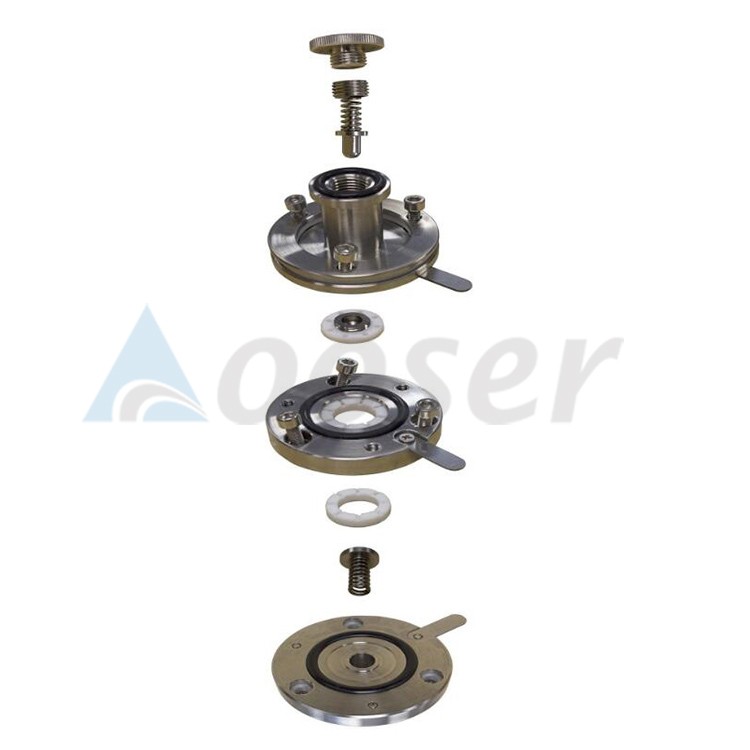

It is designed to test various electrodes easily and quickly by providing the user a structure to simulate assembled coin cells without the need to crimp actual coin cell cases. Two sides of the test cell connect to both electrode (the anode and cathode), with the middle being connected to the reference electrode which can be used for monitoring voltage variations of the two electrodes. This test cell can accept 15 mm diameter electrodes and 24mm separators.

Specification

Structure

Full stainless steel (SS304)

Features

24 mm diameter insert

Sealed by electrolyte corrosive-proof PTFE O-rings

Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250C

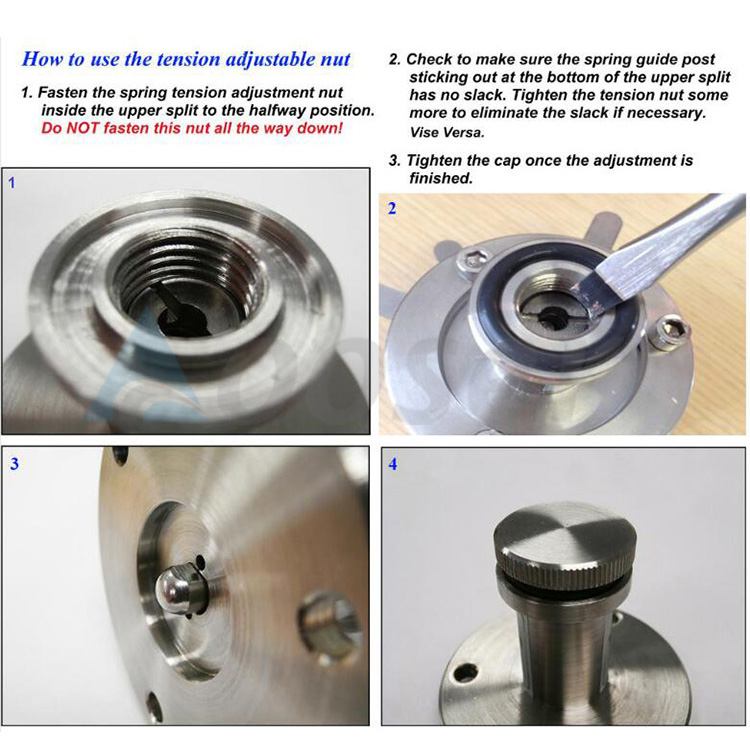

Adjustable spring tension on top to accept various electrode thicknesses

Easy to separate after testing

Small enough to be put into and taken out from a glove box

Warranty

One year limited manufacturer warranty with lifetime support,
