Manual 18650/21700/32650 Cylindrical Battery Sealing Machine for Lab

Manual 18650/21700/32650 Cylindrical Battery Sealing Machine for Lab

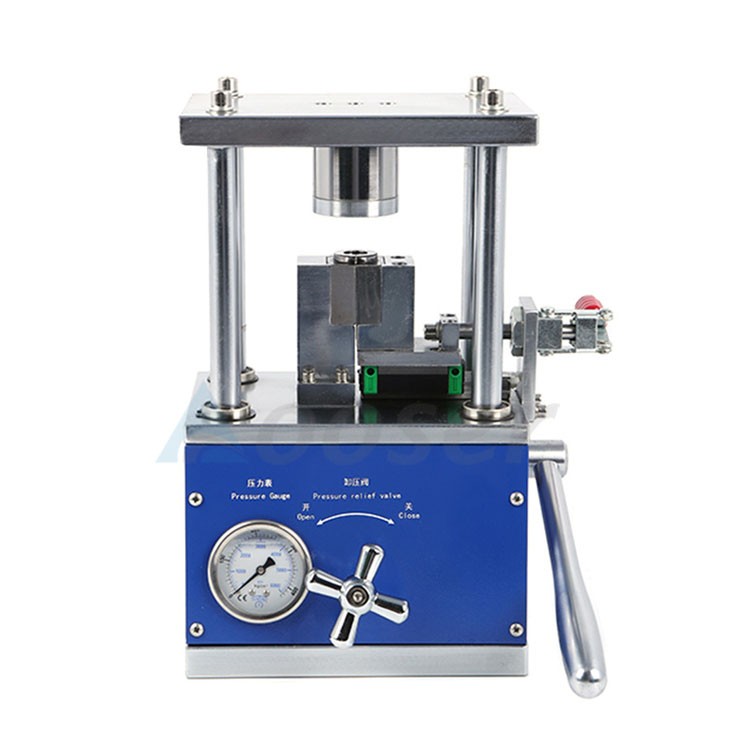

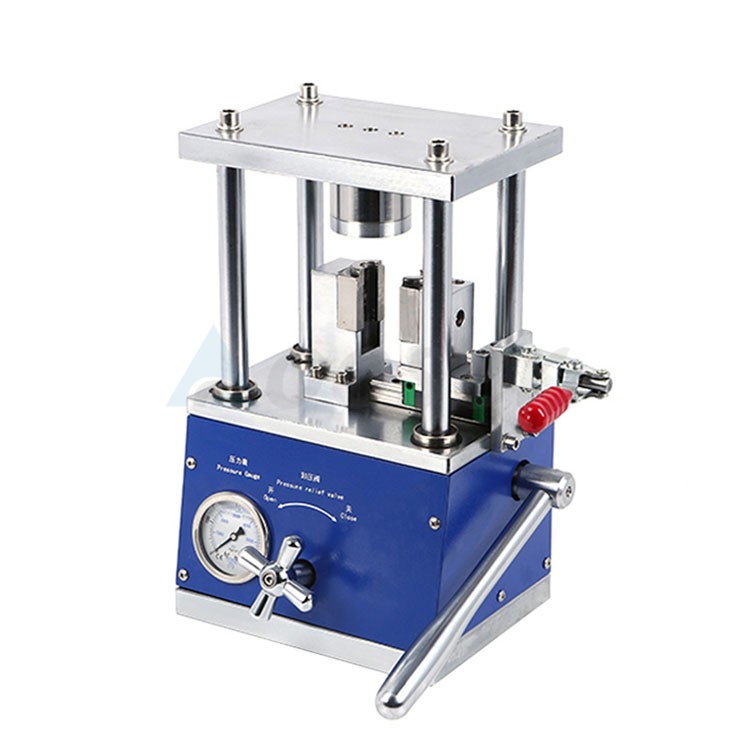

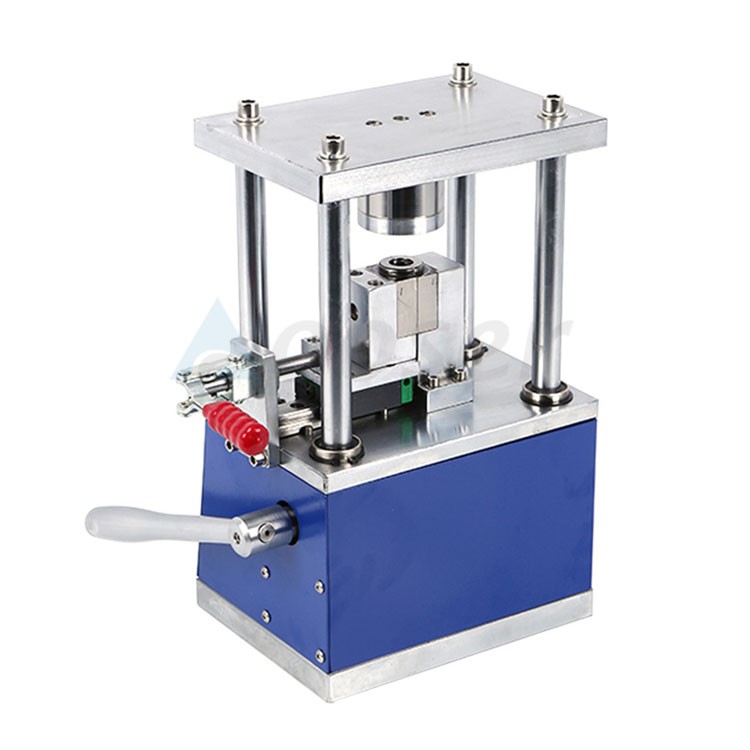

AS-CF650 is a compact manual crimping machine for sealing all types of cylindrical cases in battery R&D labs. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.

Compact Hydraulic Sealing Machine For18650 21700 32650 Cylindrical Batteries

AS-CF650 isa compact manual crimping machine for sealing all types of cylindrical cases in battery R&D labs. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.

Specifications:

Model	Hydraulic Sealing Machine AS-CF650
Driving Force	Manual hydraulic pressing up to 5T
Pressure Gauge	0-3500 psi (0-250 kg/cm^2)
Body	Stainless Steel
Crimping Dies	Six standard die for your choice: CR123 /18650 / 26650 / 32650 / AA /AAA
Warranty	One year limited with lifetime support
Product Dimensions	330mm(L) x 240mm(W) x 400mm(H)
Application Notes	Customized die for other cylindrical cell types is available upon request It is necessary to groove the opening end of the cylindrical case by using the grooving machine before sealing the cap Each type of cylinder cell can only be sealed specifically by certain model of equipment. Please select the type of cylinder cell in the Product Options drop box to check the model number and price for the corresponding crimping die of each cylinder cell type
Net Weight	About 28kg
Packing weight	About 35kg

Manual 18650 Battery Sealing Machine

Hydraulic Sealing Machine for Cylindrical Batteries
