AS-QF650 is a compact cylinder driven crimper for sealing all types of cylindrical cases in battery R&D labs, standard configuration mold can be used for 18650 cylindrical battery sealing.
Customized die for other cylindrical cell types is available upon request(21700 26650 32650 etc).

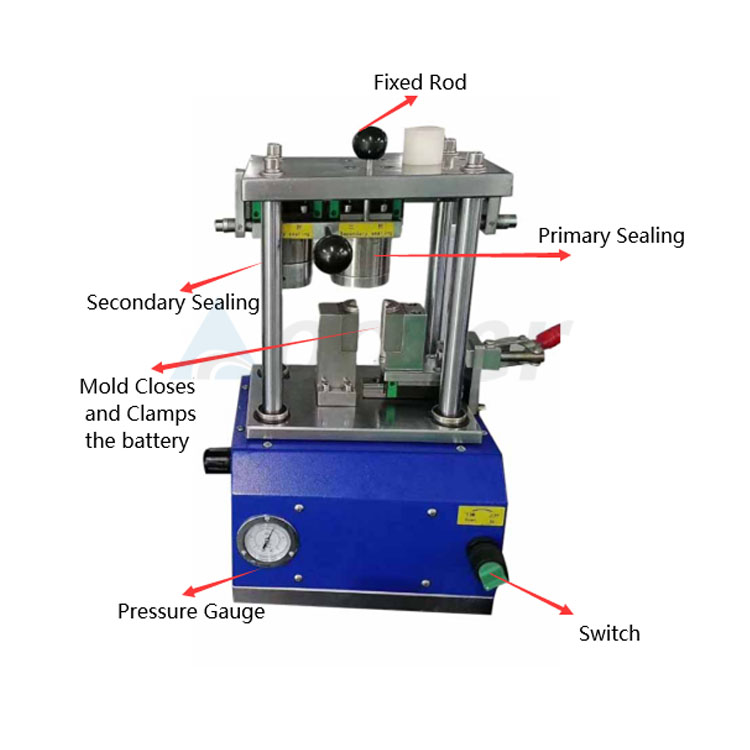

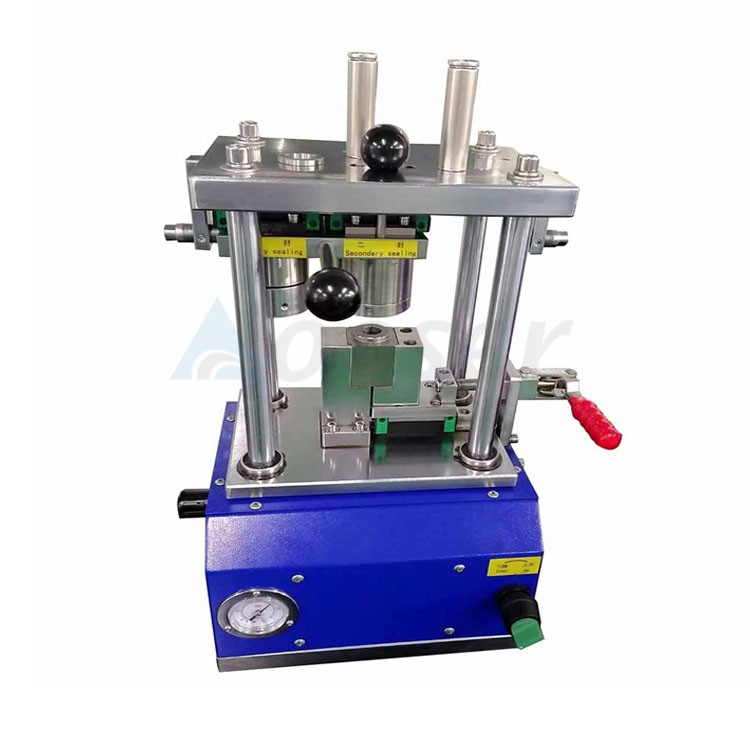

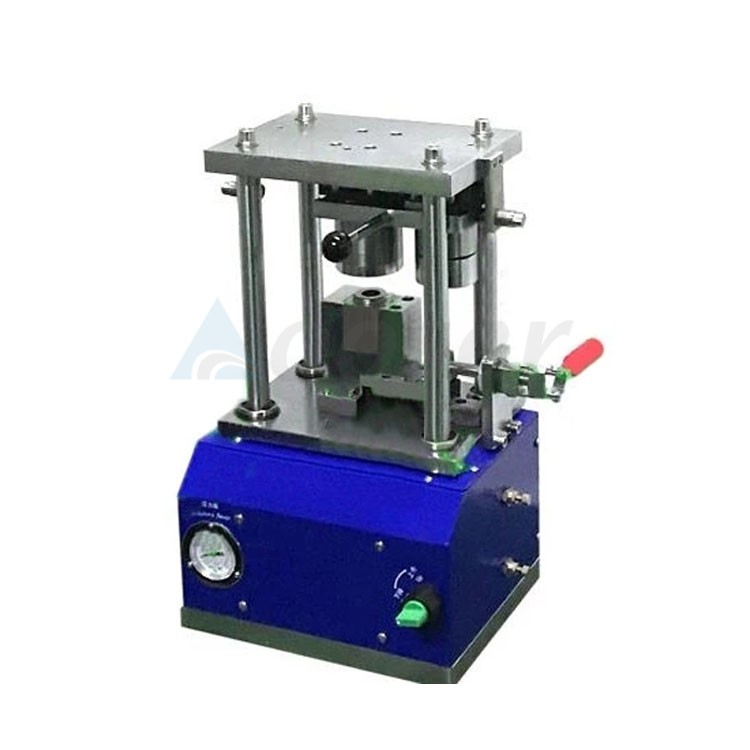

Lab Small Pneumatic Sealer Sealing Machine For 18650 Cylindrical Battery Crimping
AS-QF650 is a compact cylinder driven crimper for sealing all types of cylinder cases in battery R&D labs, Standard configuration mold can be used for 18650 cylindrical battery sealing.
Customized die for other cylindrical cell types is available upon request(21700 26650 32650 etc).
Cylinder drive mold for cylindrical battery seal, sealing pressure controlled by manual valve .
|
Model |
Pneumatic Cylindrical Batteries Sealing Machine AS-QF650 |
|
Sealing pressure |
10~150kg/cm2 |
|
Body Material |
Stainless Steel |
|
Air supply |
compressed air 0.6~1.0MPa |
|
Power supply |
220V / 50Hz (110V can be customized) |
|
Power |
120W |
|
Outer size |
385mm X 160mm X 325mm |
|
Net Weight |
35Kg |
|
Packing Weight |
About 45Kg |
