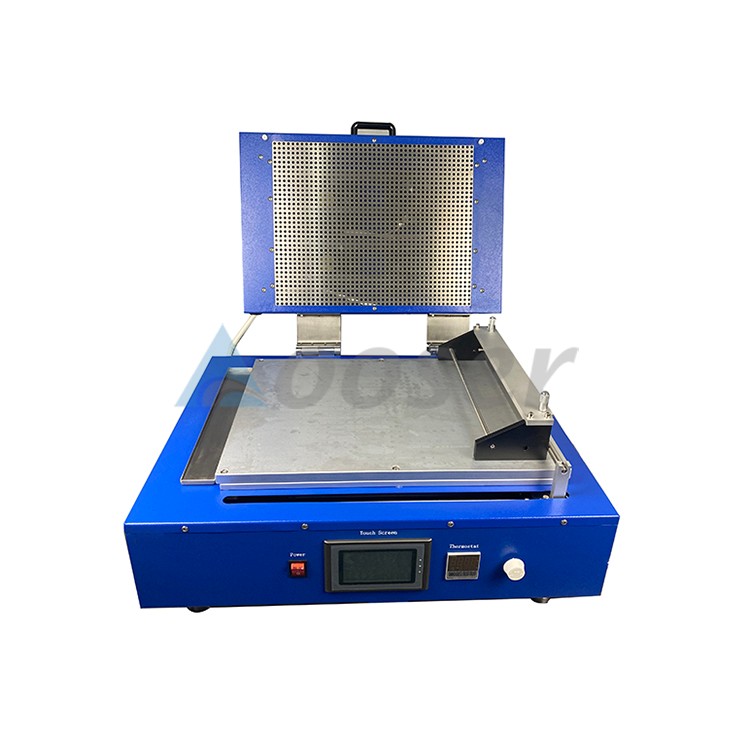

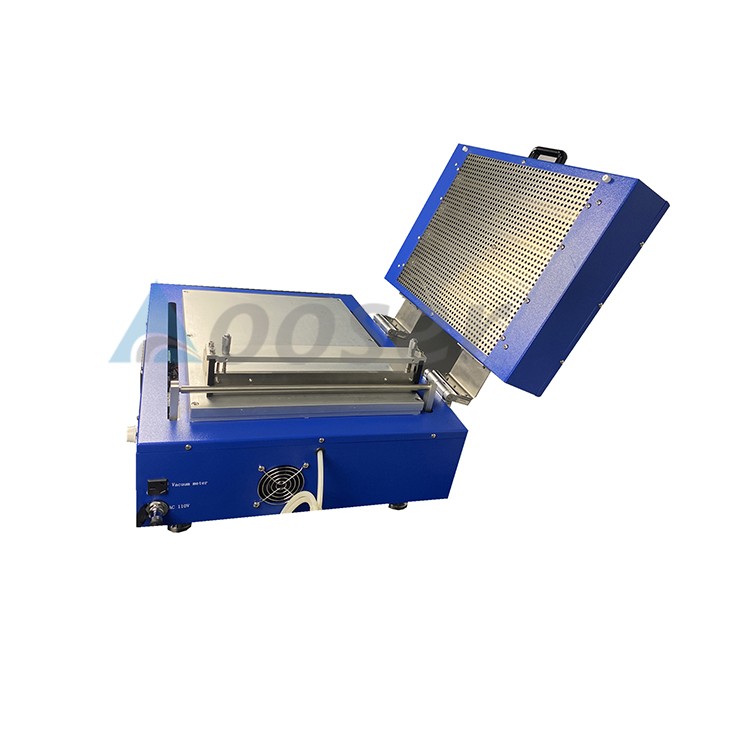

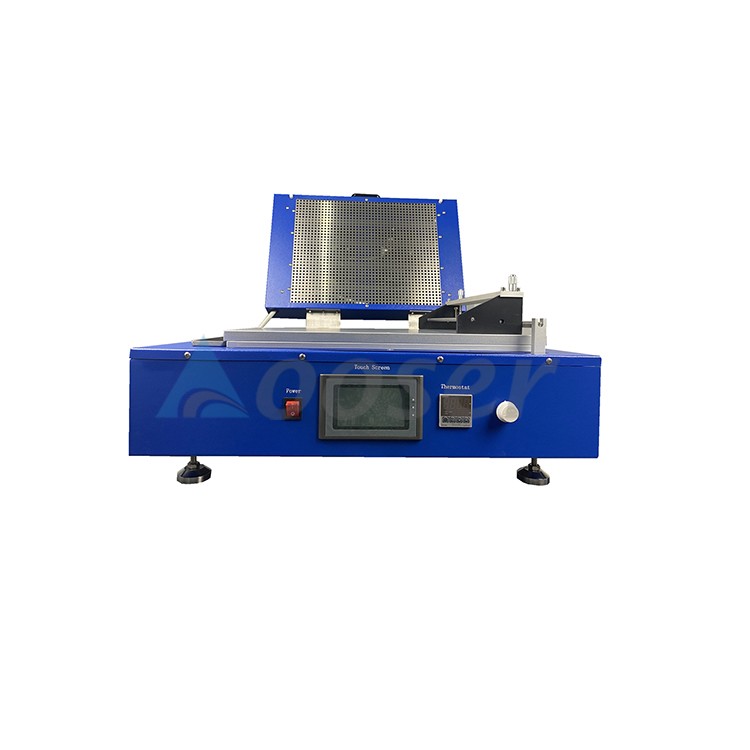

Compact Battery Electrode Film Coating Machine With Doctor Blade

Model

TMH100-250

150-250

250-300

250-350

250-500

250-800

Effective coating
area(mm, size can be customized)

100 x 250

150 x 250

250 x 300

250 x 350

250 x 500

250 x 800

Stroke length
(mm, length adjustable)

10 ‾ 250

10 ‾ 250

10 ‾ 300

10 ‾ 350

10 ‾ 550

10 ‾800

Vacuum chuck
dimensions
(mm, W×L, , size can be customized)

100 x 365

150 x 365

250 x 400

250 x 450

250 x 650

250 x 900

Power supply

110VAC or 220VAC

Coating speed

0 - 120 mm/sec variable; accuracy: 10mm/sec
(The coating speed range can be customized)

Vacuum pump
(Optional)

One oil free vacuum pump
Pumping rate: 60 Hz:1.8 CFM, 50 L/min
Extreme vacuum: 5 Pa, 375 microns

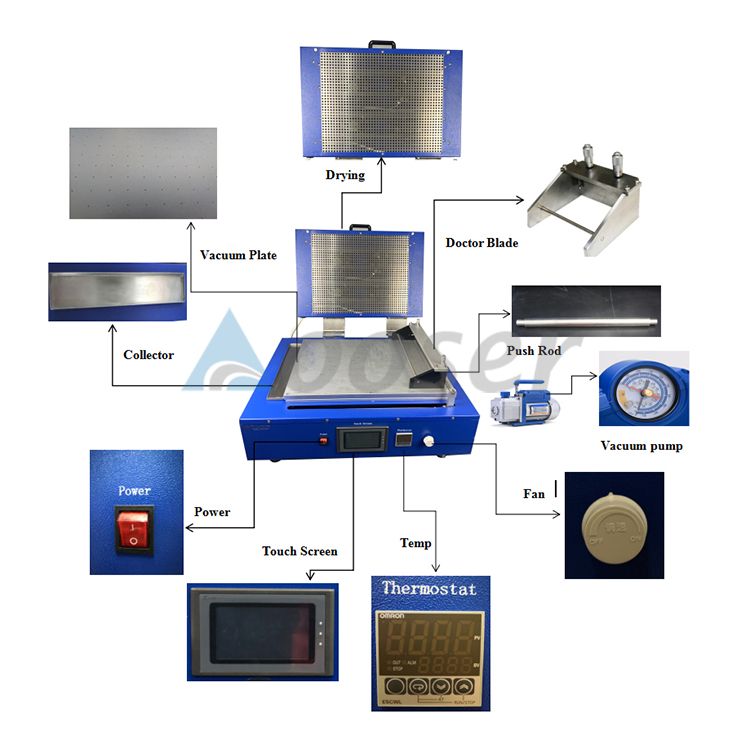

Film applicator

One standard film applicator is included as below:
*Analog film applicator with fix coating width
*0~3mm gap/coating thickness adjustable
*Coating accuracy: ±3μm

Optional parts:
Digital micrometer
Adjustable width
Different gap/coating thickness

Heating function
(selectable)

Platen heating(standard)
1. Heating on the vacuum chuck/coating plate
2. Built in digital temperature controller with accuracy of +/-1°C
3. Max. Heating Temp: 120°C
4. You can choose to have the cover or not, with cover, it will faster the drying speed as it will keep the

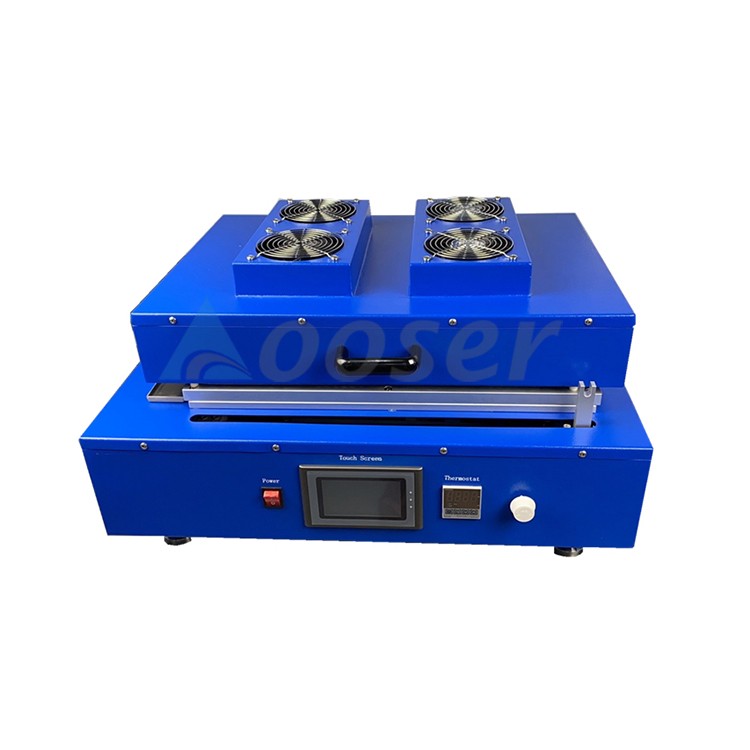

Top cover heating
1. Heater pre-installed on the top cover
2. Built in digital temperature controller with accuracy of +/-1°C
3. Suspension support helps open cover easily and safely
4. Max. Heating Temp: 200°C

Surface finish

10

Surface roughness

Ra0.1

Vacuum board
material

5052 Aluminum alloy

Compliance

CE Certificate

Warranty

One year limited warranty with lifetime support
